In the PCB design, an 8-layer PCB is used, and a separate power supply

layer and GND layer are reserved, so that the power supply of the entire

development board has very good stability. Test points for each power supply

are reserved on the PCB so that the user can confirm the voltage on the board.

Figure 3-3: Test Points for Power supply on the Board

Part 4: ZYNQ Chip

The AX7010 FPGA development board uses Xilinx's Zynq7000 series chip,

model XC7Z010-1CLG400C. The chip's PS system integrates two ARM

CortexTM-A9 processors, AMBA® interconnects, internal memory, external

memory interfaces and peripherals. These peripherals mainly include USB bus

11 / 48

ZYNQ FPGA Development Board AX7010 User Manual

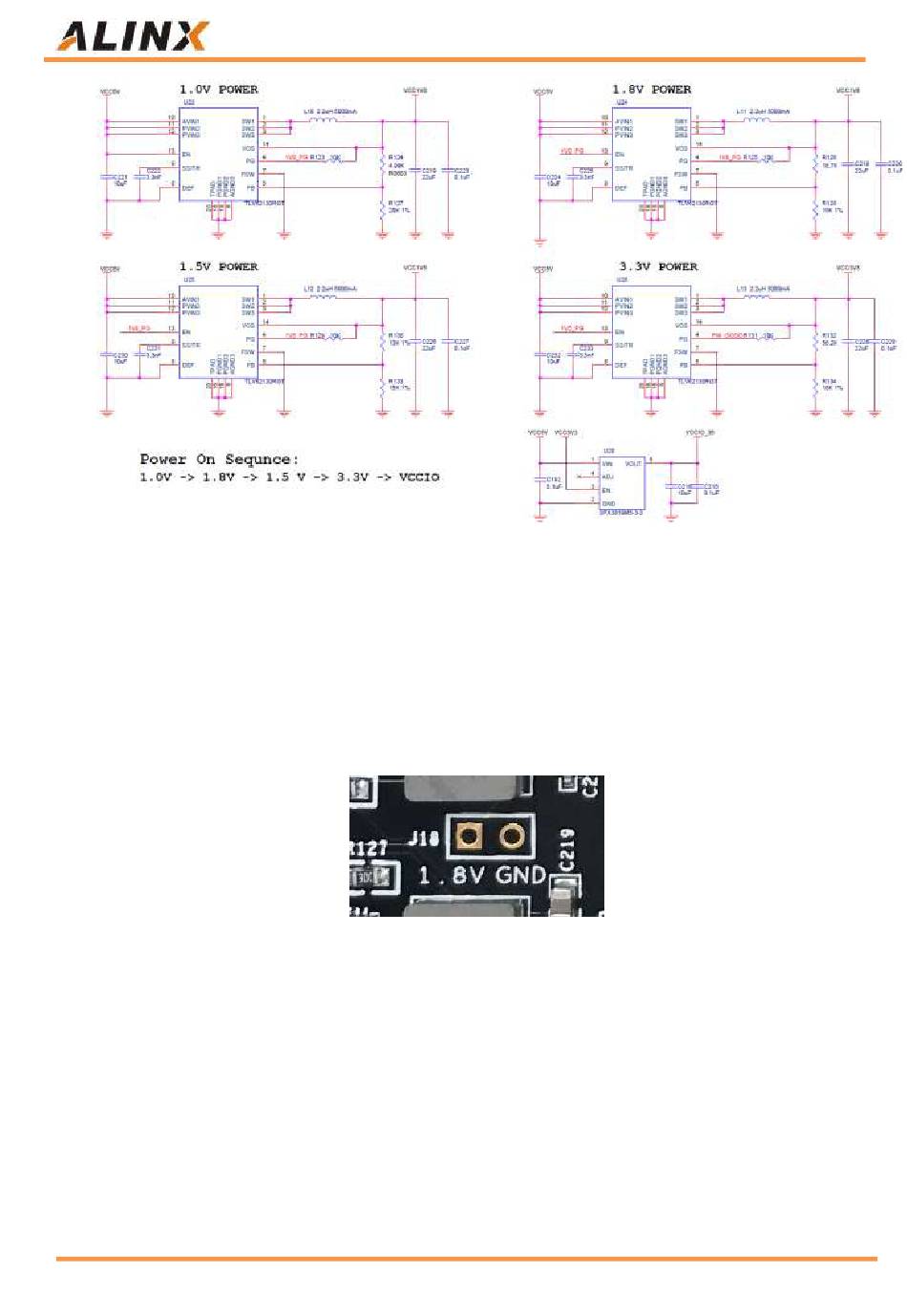

Figure 3-2: Power Supply Circuit
