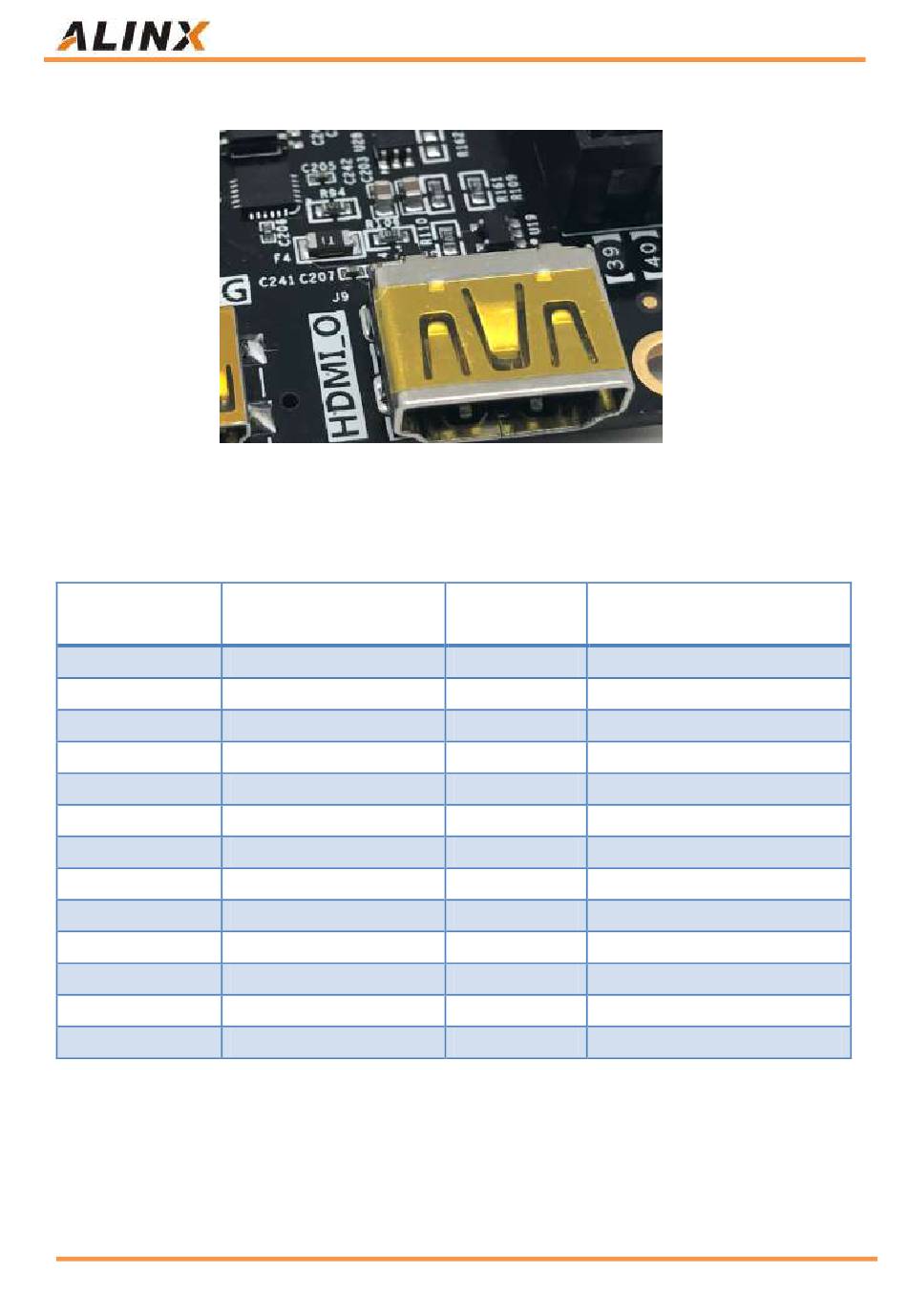

Figure 7-4: HDMI Interface on the FPGA Board
HDMI Interface Pin Assignment
Signal Name
HDMI_CLK_P
HDMI_CLK_N
HDMI_D0_P
HDMI_D0_N
HDMI_D1_P
HDMI_D1_N
HDMI_D2_P
HDMI_D2_N
HDMI_SCL
HDMI_SDA
HDMI_CEC
HDMI_HPD
HDMI_OUT_EN
Part 7.2:
EEPROM 24LC04
AX7010 FPGA development board contains an EEPROM, model 24LC04,
and has a capacity of 4Kbit (2*256*8bit). It consists of two 256-byte blocks and
37 / 48
ZYNQ FPGA Development Board AX7010 User Manual
ZYNQ Pin Name
IO_L13P_T2_MRCC_34
IO_L13N_T2_MRCC_34
IO_L16P_T2_34
IO_L16N_T2_34
IO_L15P_T2_DQS_34
IO_L15N_T2_DQS_34
IO_L14P_T2_SRCC_34
IO_L14N_T2_SRCC_34
IO_L20N_T3_34
IO_L19P_T2_34
IO_L17P_T2_34
IO_L17N_T2_34
IO_L18P_T2_34
Amazon Store: https://www.amazon.com/alinx
ZYNQ Pin
Number
N18 HDMI Clock Signal positive
P19 HDMI Clock Signal negative
V20 HDMI data 0 positive
W20 HDMI data 0 negative
T20 HDMI data 1 positive
U20 HDMI data 1 negative
N20 HDMI data 2 positive
P20 HDMI data 2 negative
R18 HDMI IIC Clock
R16 HDMI IIC Data
Y18 HDMI remote control signal
Y19 HDMI hot plug detection signal
V16 HDMI power output control
Description
