ZYNQ FPGA Development Board AX7010 User Manual

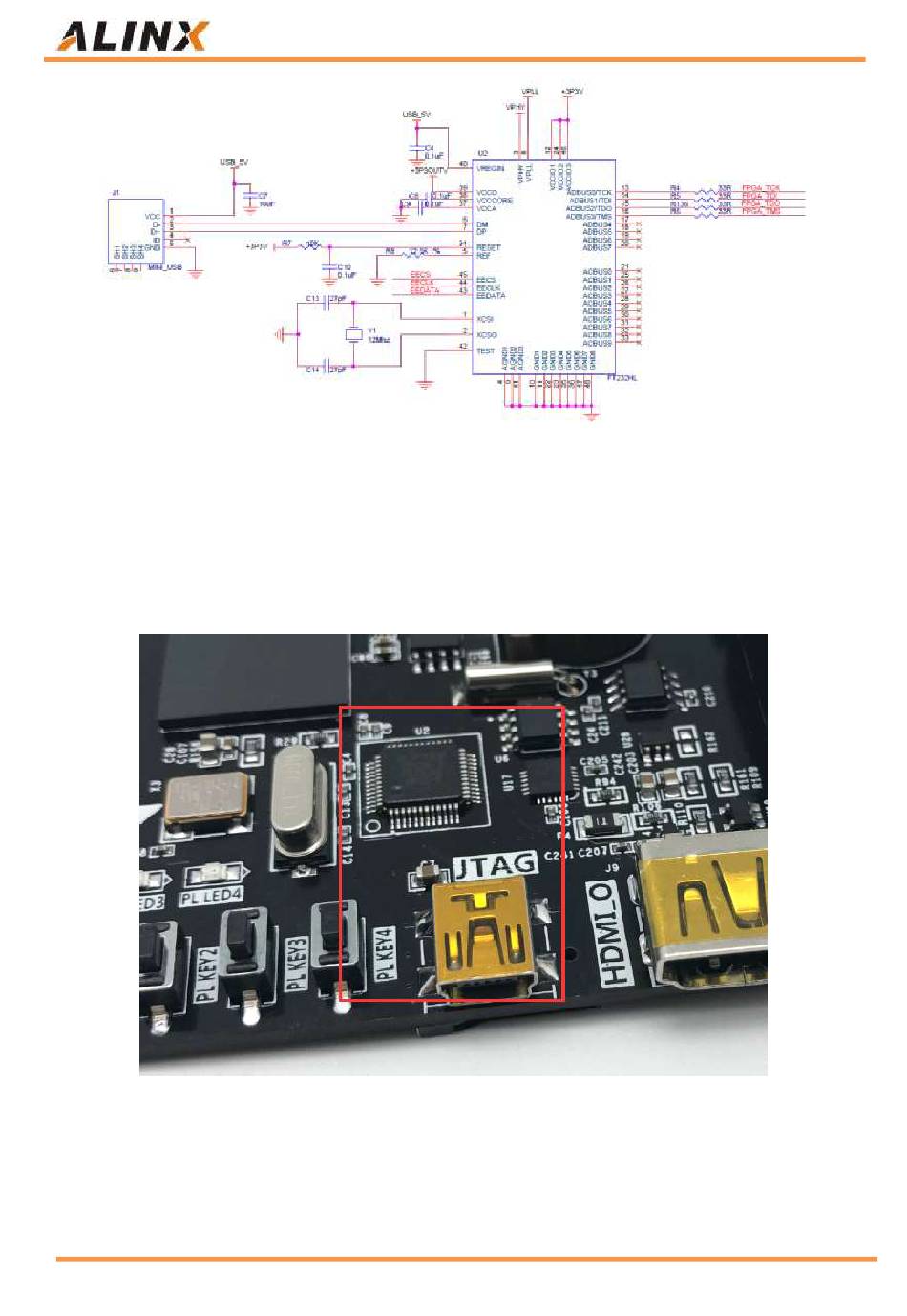

Figure 4-4: The JTAG port schematic

On the AX7010 FPGA development board, the JTAG interface is USB

interface. Users can connect the PC and JTAG interface to the ZYNQ system

debugging through the USB cable provided by us.

Figure 4-5: The JTAG port on the FPGA Board

Amazon Store: https://www.amazon.com/alinx

15 / 48
