USB to serial port ZYNQ pin assignment:
Signal name
UART_TX
UART_RX
Silicon Labs provides virtual COM port (VCP) drivers for host PCs. These
drivers allow the CP2102GM USB-UART bridge device to be displayed as a
30 / 48
ZYNQ FPGA Development Board AX7010 User Manual

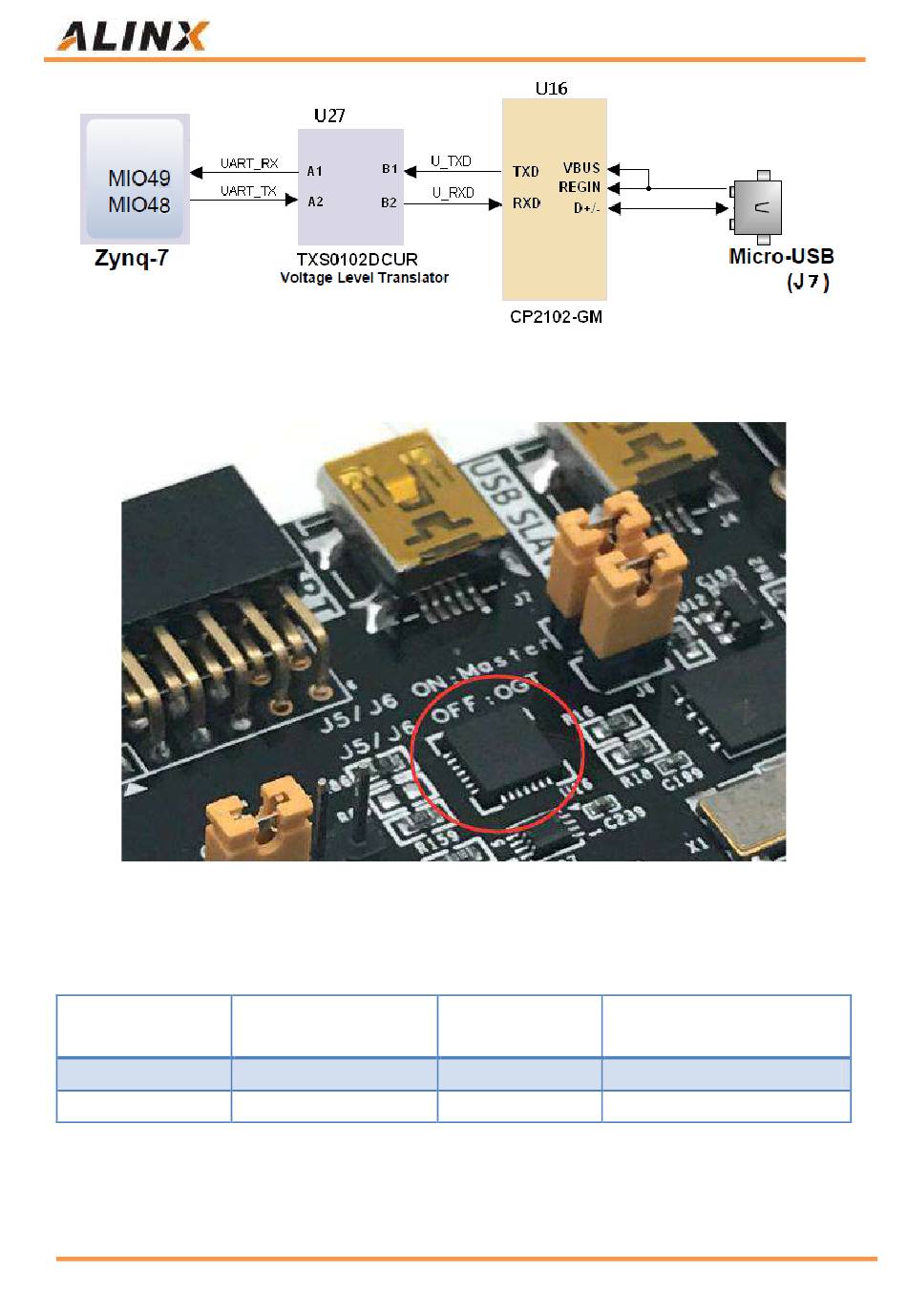

Figure 6-8: USB to serial port schematic
Figure 6-9: CP2102GM chip on the FPGA Board
ZYNQ Pin Name
PS_MIO48_501
PS_MIO49_501
Amazon Store: https://www.amazon.com/alinx
ZYNQ Pin
Number
B12
C12
Description
Uart data input
Uart data output
