PL User LEDs pin assignment:
Signal Name
LED1
LED2
LED3
LED4
Part 7.7: User Buttons
On the AX7010 development board, four user buttons are connected to the
IOs of BANK34 and Bank35 in the ZYNQ PL section. The buttons are active
low. In the circuit design, when the button is pressed, the signal is low, and
when it is not pressed, the signal is high. The schematic is shown in Figure
7-15:
47 / 48
ZYNQ FPGA Development Board AX7010 User Manual
ZYNQ Pin Name
IO_L23P_T3_35
IO_L23N_T3_35
IO_L24P_T3_35
IO_L24N_T3_35

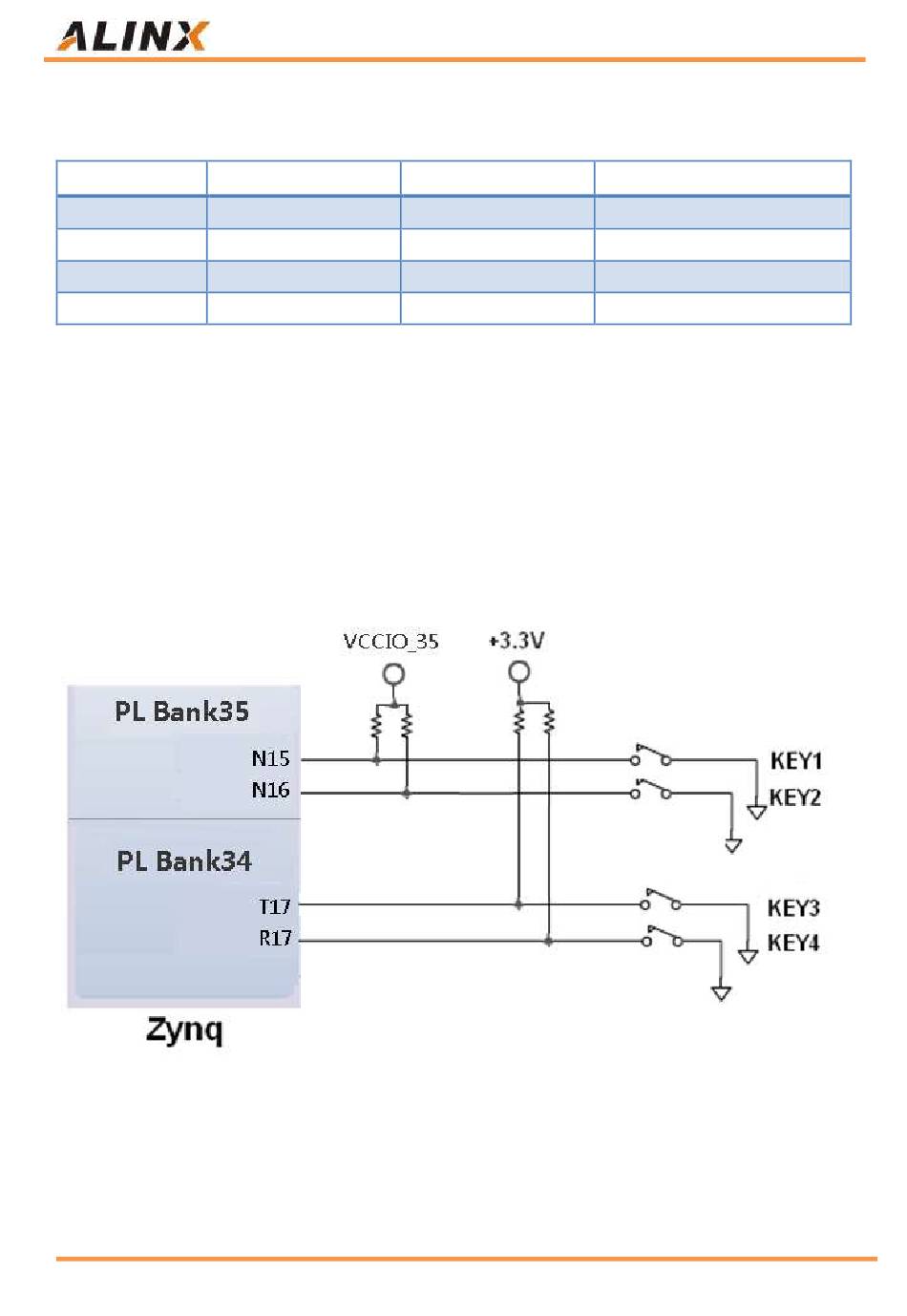

Figure 7-15: PL User Buttons Schematic
Amazon Store: https://www.amazon.com/alinx
ZYNQ Pin Number
M14
M15
K16
J16
Description
PL User LED PL LED1
PL User LED PL LED2
PL User LED PL LED3
PL User LED PL LED4
