Chapter 3

Configuring a Screw Terminal Panel

This section describes how to locate and configure the jumpers and resistors on the DT740 or
STP268 screw terminal panel for use with a DT3010 Series board.

Configuring the DT740 Screw Terminal Panel

Figure 12
jumper and resistors.
Jumper and
Resistors

Configuring Jumper W1 - Common Ground Sense

When shipped from the factory, jumper W1 connects the low side of the input amplifier (Amp
Low) on the DT3010, DT3010/32, DT3010/32-268, or DT3016 board to analog ground.
When using pseudo-differential analog inputs, remove jumper W1 and connect Amp Low to a
remote common-mode voltage to reject offset voltages common to all 32 input channels. Refer
to page 65
44
shows the layout of the DT740 screw terminal panel, and shows the location of the
1
9
W1
R1 to R16
R17 to R32
J1
16
8
CTR CTR
57 65
Gnd 0
J2
Clk 0
Out 0
Gate 0
Gnd 1
Clk 1
Out 1
Gate 1
72
64

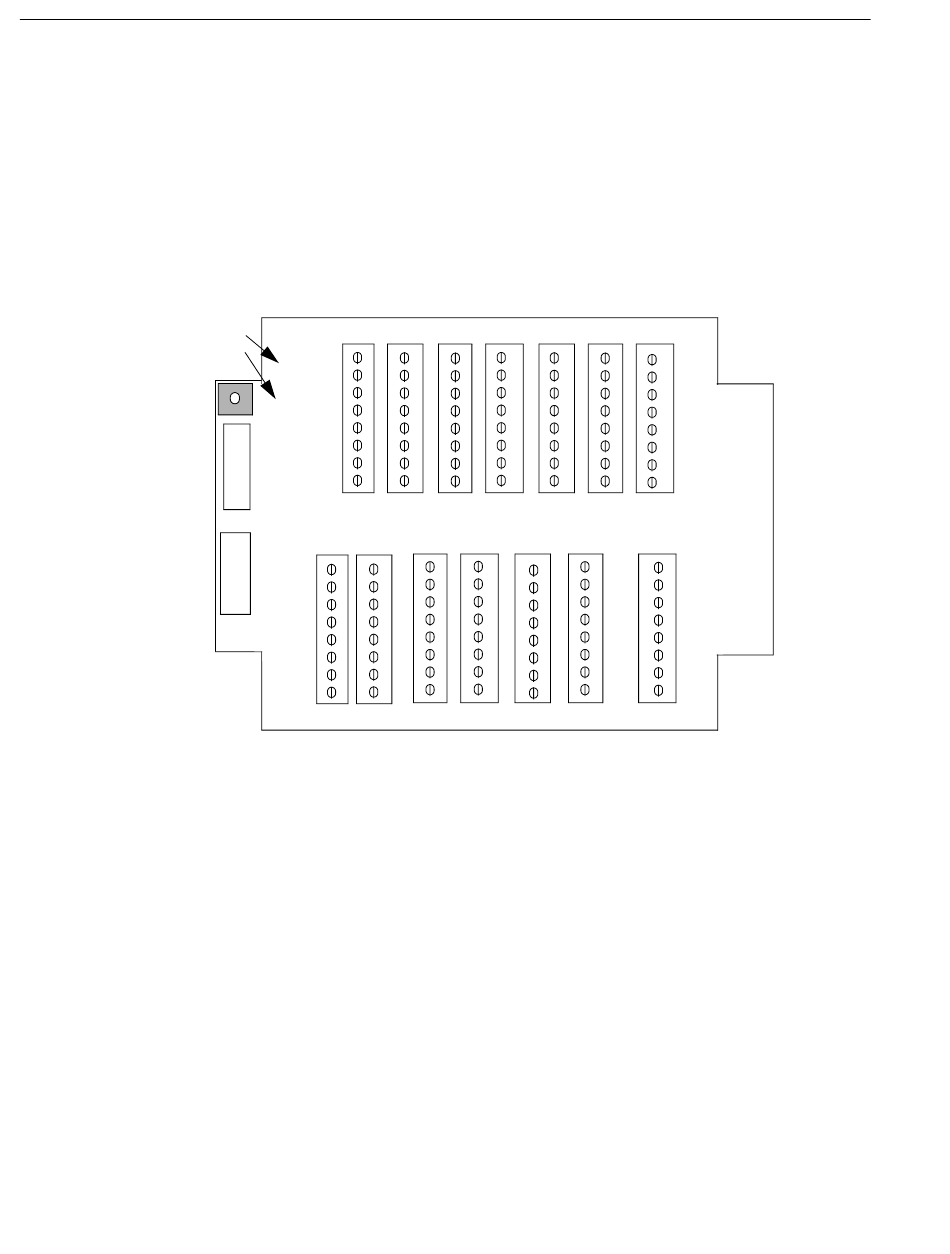

Figure 12: Layout of the DT740 Screw Terminal Panel
for an example of using jumper W1.
17
25
41
33
32
24 40
DIO
Trig GND DIO
97
73 81 89
104
80 96
88
49
48
56
Shield
105
112
