EcoDesign Disclosures
Powering Down the Enclosure
Step 2 : Disconnect the Enclosure from power.
a. Locate the redundant PSUs at the rear of the enclosure.
b. Detach the cable retention clip from both power cords.
c. Power down the enclosure by disconnecting both power cables, one from each PSU.
Removing the Cables

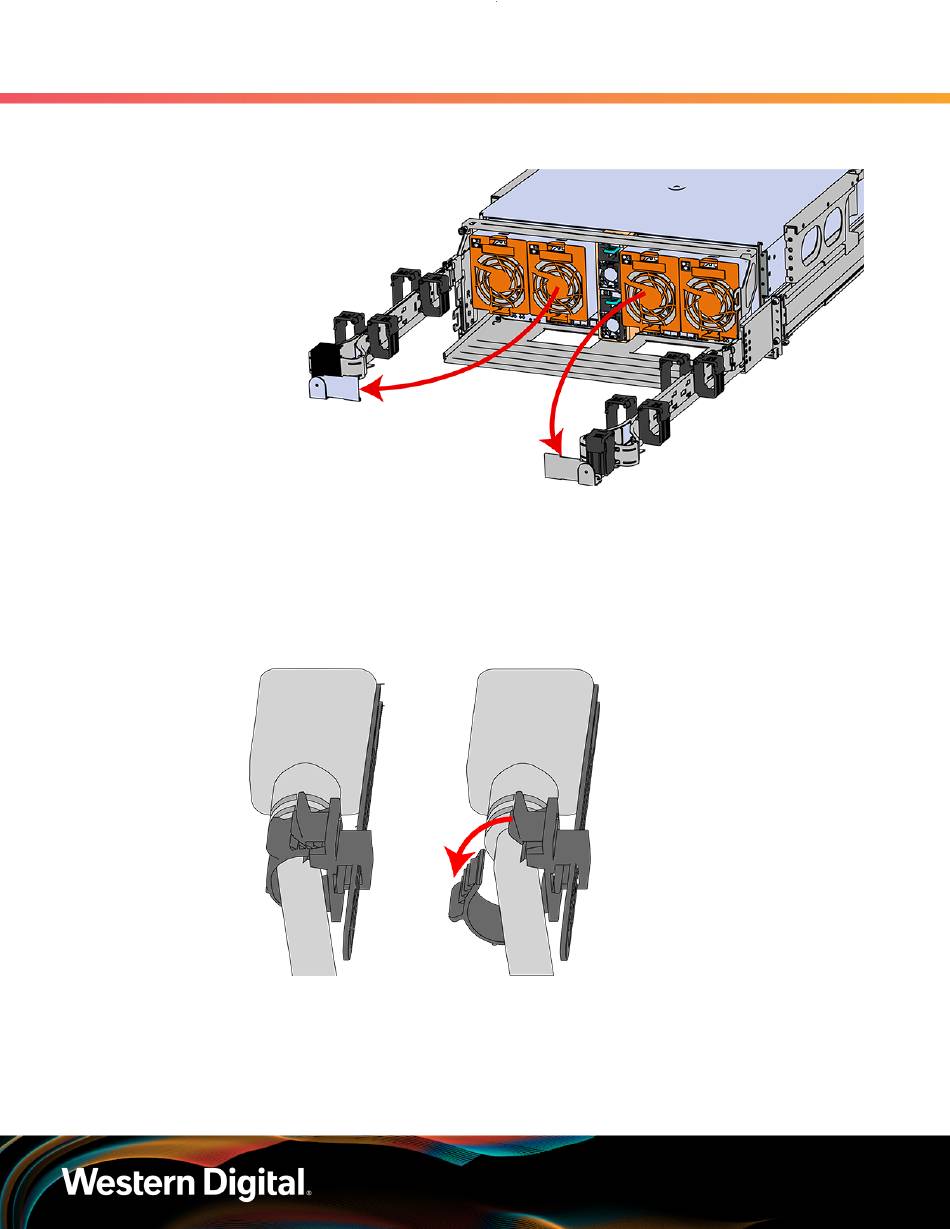

Figure 2: CMA(s) in service position (Cables not shown)
Figure 3: Cable Retention Mechanism
1. EU EcoDesign Disclosures
1.4 Ultrastar Data102 Disassembly
