1. EU EcoDesign Disclosures
EcoDesign Disclosures
1.4 Ultrastar Data102 Disassembly

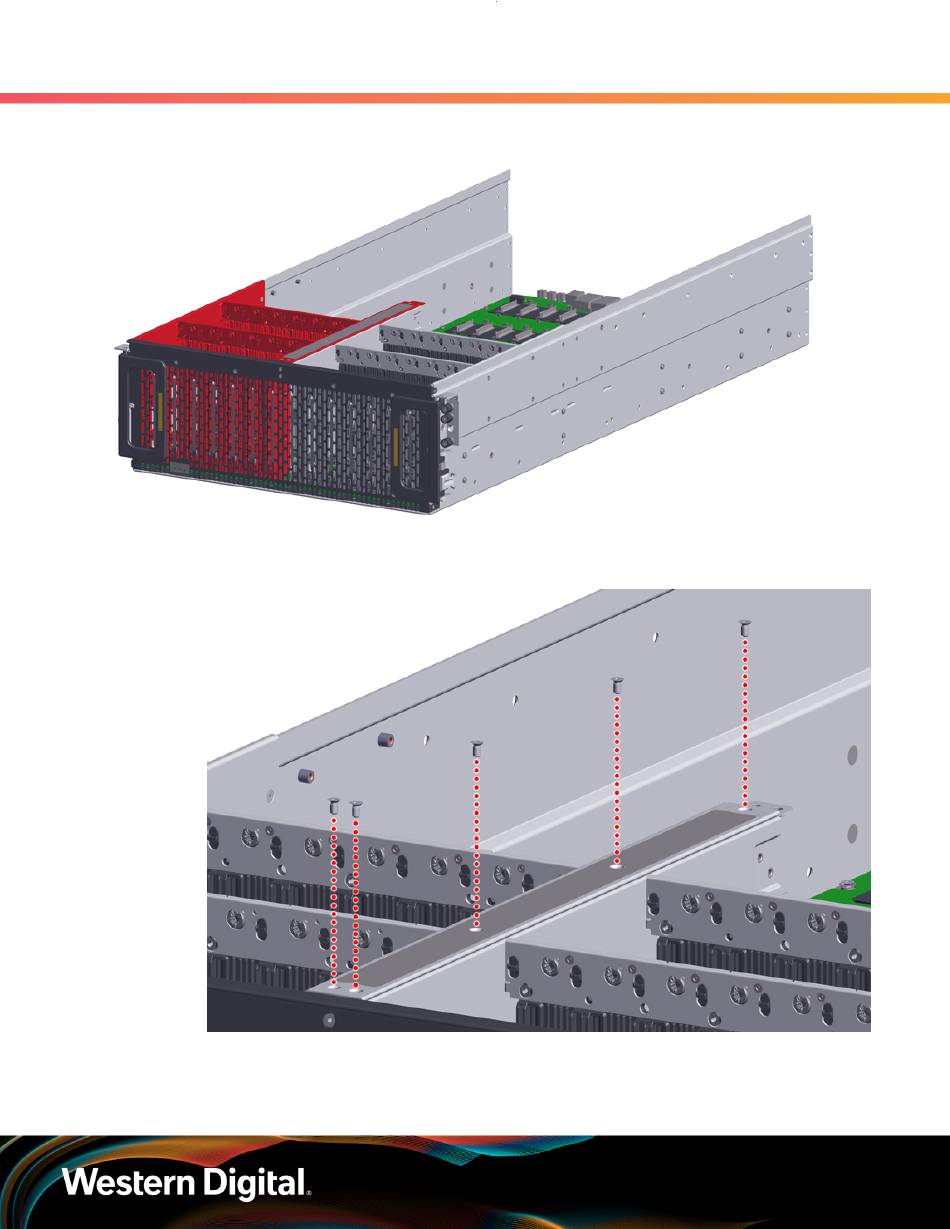

Figure 52: Front-Left Drive Housing Location, As Viewed from Front-Right-Top
Step 51 : At the junction between both front drive housings, remove the five (5) M3 6mm screws holding
them together:
Step 52 : At the front of the chassis, use a T7 Torx screwdriver to remove the two (2) M3 7mm screws
securing the front-left drive housing to the front of the chassis:
