EcoDesign Disclosures
c. Once the crossbar is straight it should easily come free from the mounting bracket.
Uninstalling the PSUs
Step 8 : Uninstall the PSU.
a. Grasp the release lever and the metal handle in a downward pinching motion to release
the latching mechanism.
b. Pull the PSU straight out with even pressure.
Uninstalling the Rear Fans

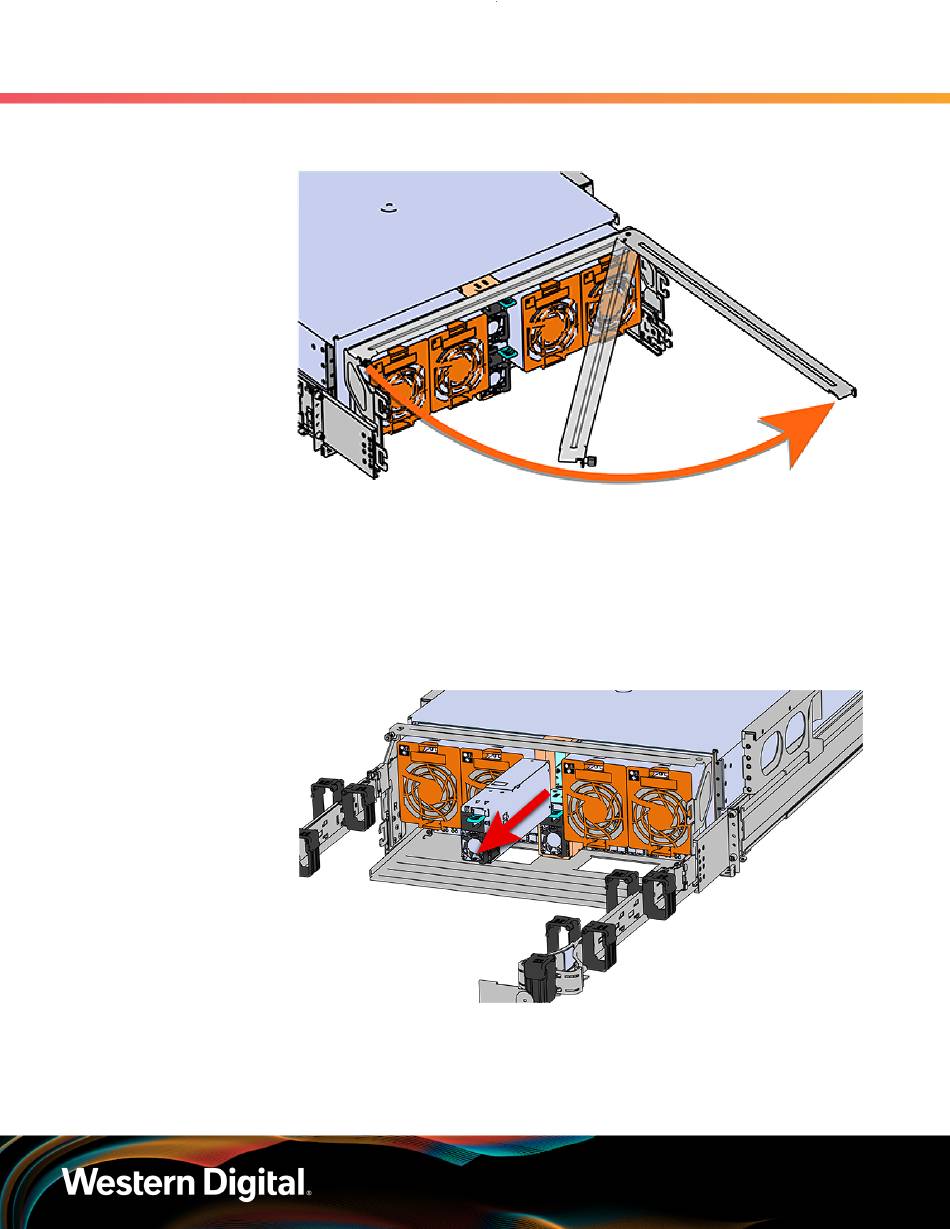

Figure 7: Crossbar Swinging Out
Figure 8: Uninstalling PSU
1. EU EcoDesign Disclosures
1.4 Ultrastar Data102 Disassembly
