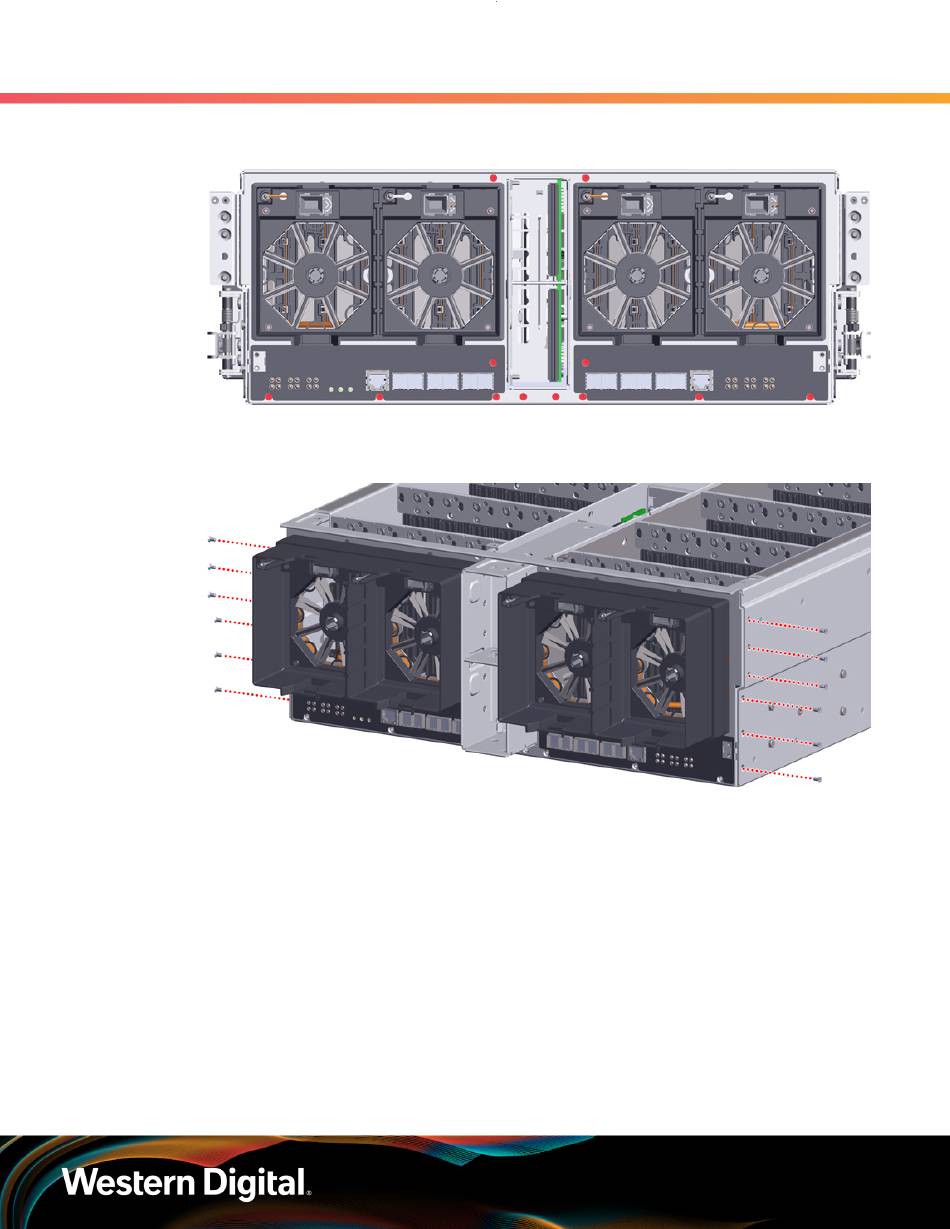

Figure 35: Fan Housing Screw Locations, As Viewed from the Rear

Step 35 : Use a T7 Torx screwdriver to remove the twelve (12) M3 6mm screws securing the fan housing

assembly to the sides of the chassis:

Step 36 : Pull the fan housing assembly away from the chassis, just far enough to unplug the fan cable

connectors from their receptacles on the baseboard. The fan cable connectors and receptacles

are shown in red in the following image:

1. EU EcoDesign Disclosures

1.4 Ultrastar Data102 Disassembly
