EcoDesign Disclosures

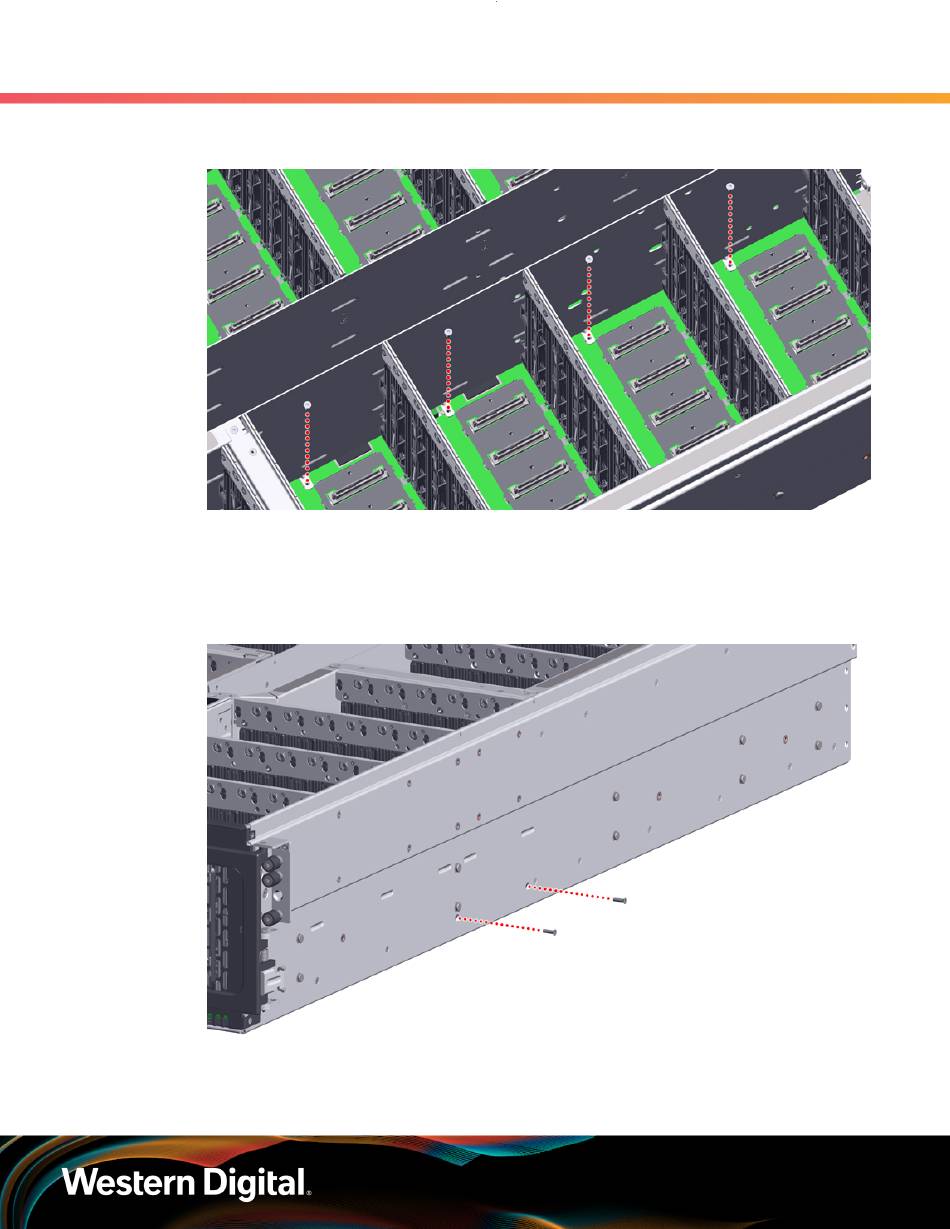

Figure 48: Rear-Right Drive Bays, As Viewed from Right-Front-Top
Step 47 : On the outside of the chassis, at the front of the rear-right drive housing, use a T8 Torx
screwdriver to remove the two (2) K30 10mm screws securing the drive housing to the side of
the chassis:
Figure 49: Outside-Right of Enclosure, As Viewed from Front-Top
Step 48 : On the outside of the chassis, use a T7 Torx screwdriver to remove the twelve (12) M3 6mm
screws securing the drive housing to the side of the chassis:
