Step 12 : Repeat these steps to remove all the drive assemblies from the enclosure.
Removing the IOMs
Step 13 : Uninstall the IOM(s).
a. Locate the latch release on the IOM and press it in the direction shown in the following
image.
b. Grasp both handles, one handle in each hand, and lift evenly with both hands to ensure
the IOM comes out straight. This will prevent any damage to the pins on the internal
connectors.

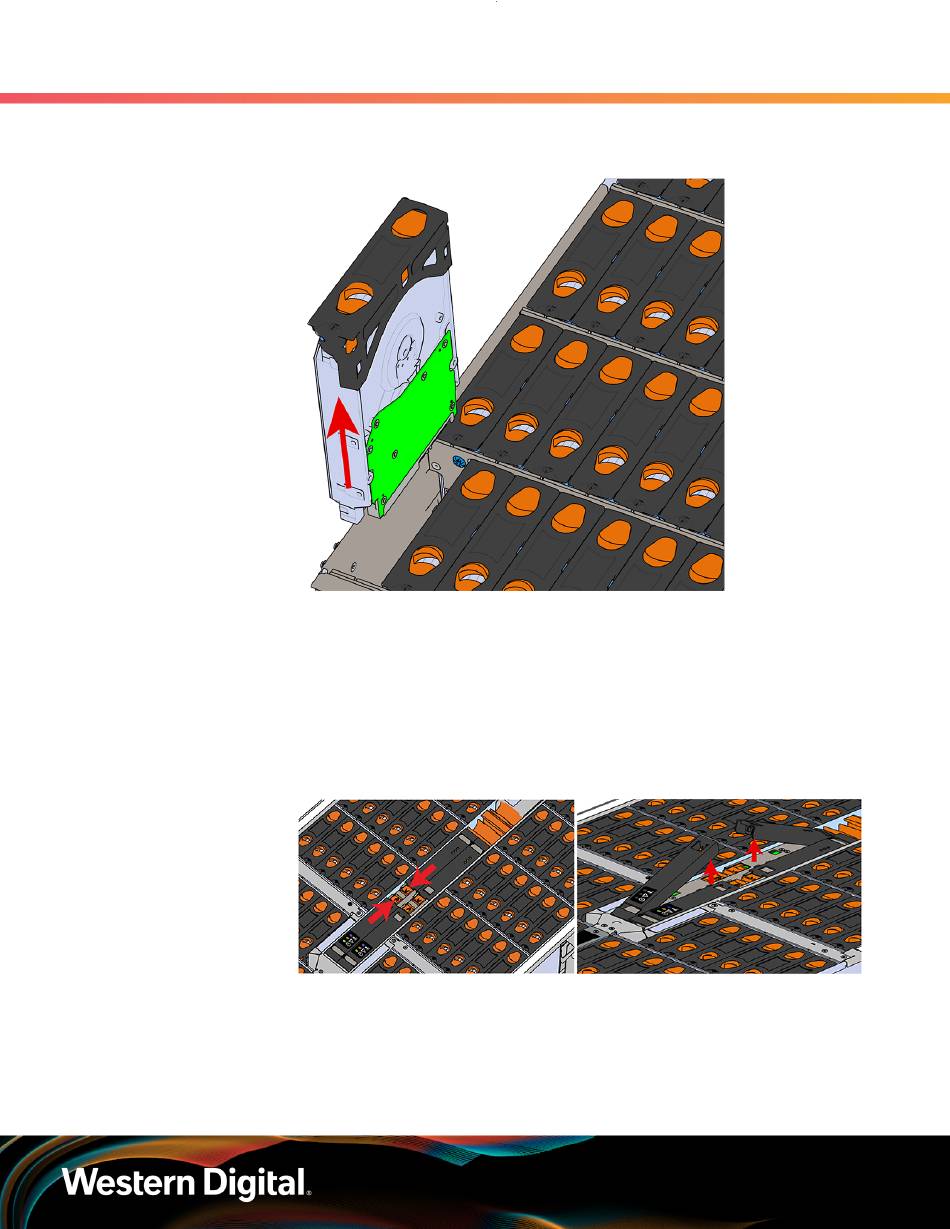

Figure 12: Removing Drive Assembly
Figure 13: Unlatching the IOM
