1.4 Ultrastar Data102 Disassembly

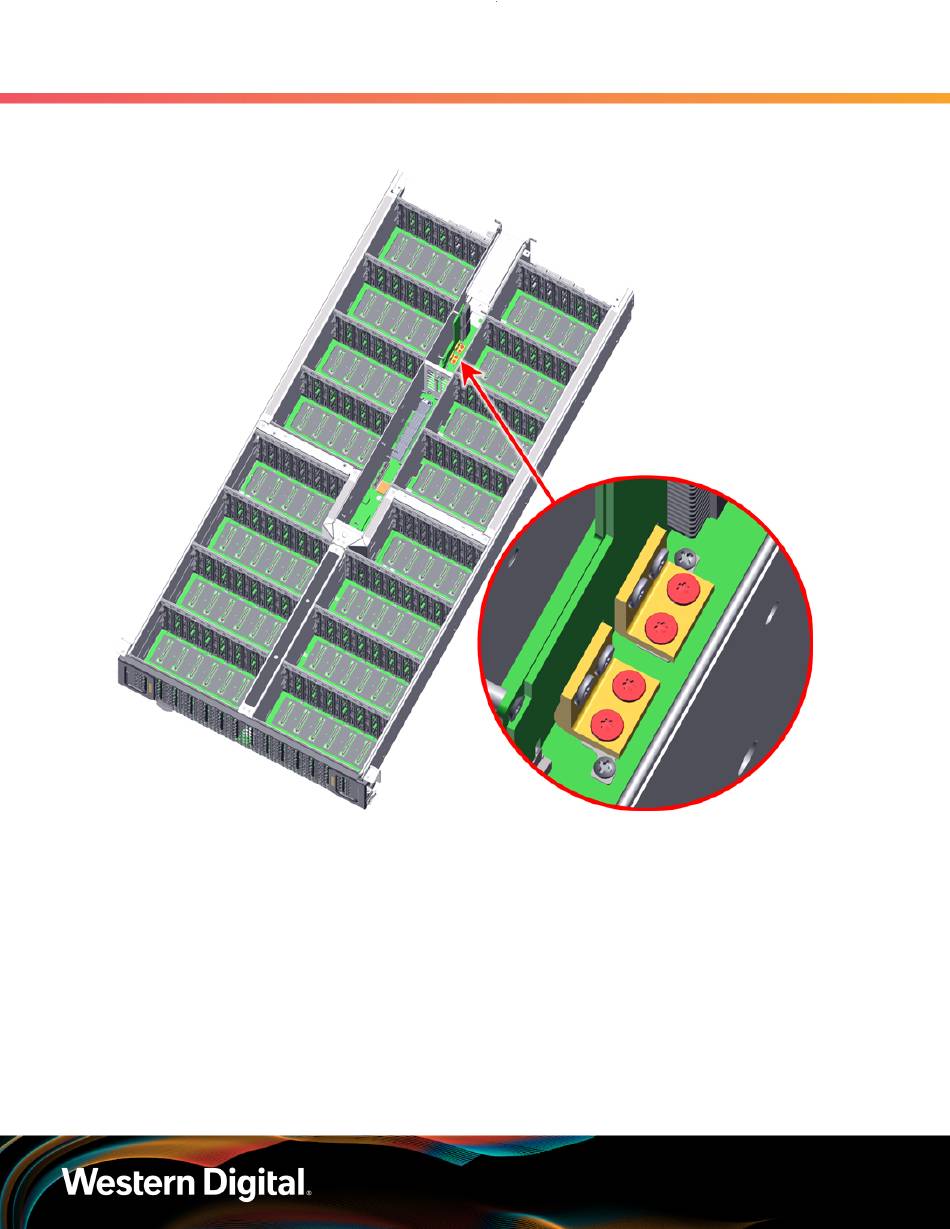

Figure 39: PDB Bus-Bar Screws Location, As Viewed from the Front Top-Right
Step 38 : Use a T8 Torx screwdriver to remove the four (4) M3 6mm screws securing the PDB to the
baseboard.
Removing the IOM Housing
The following image shows the IOM housing in red (for identification purposes only):
