1. EU EcoDesign Disclosures
EcoDesign Disclosures
1.4 Ultrastar Data102 Disassembly

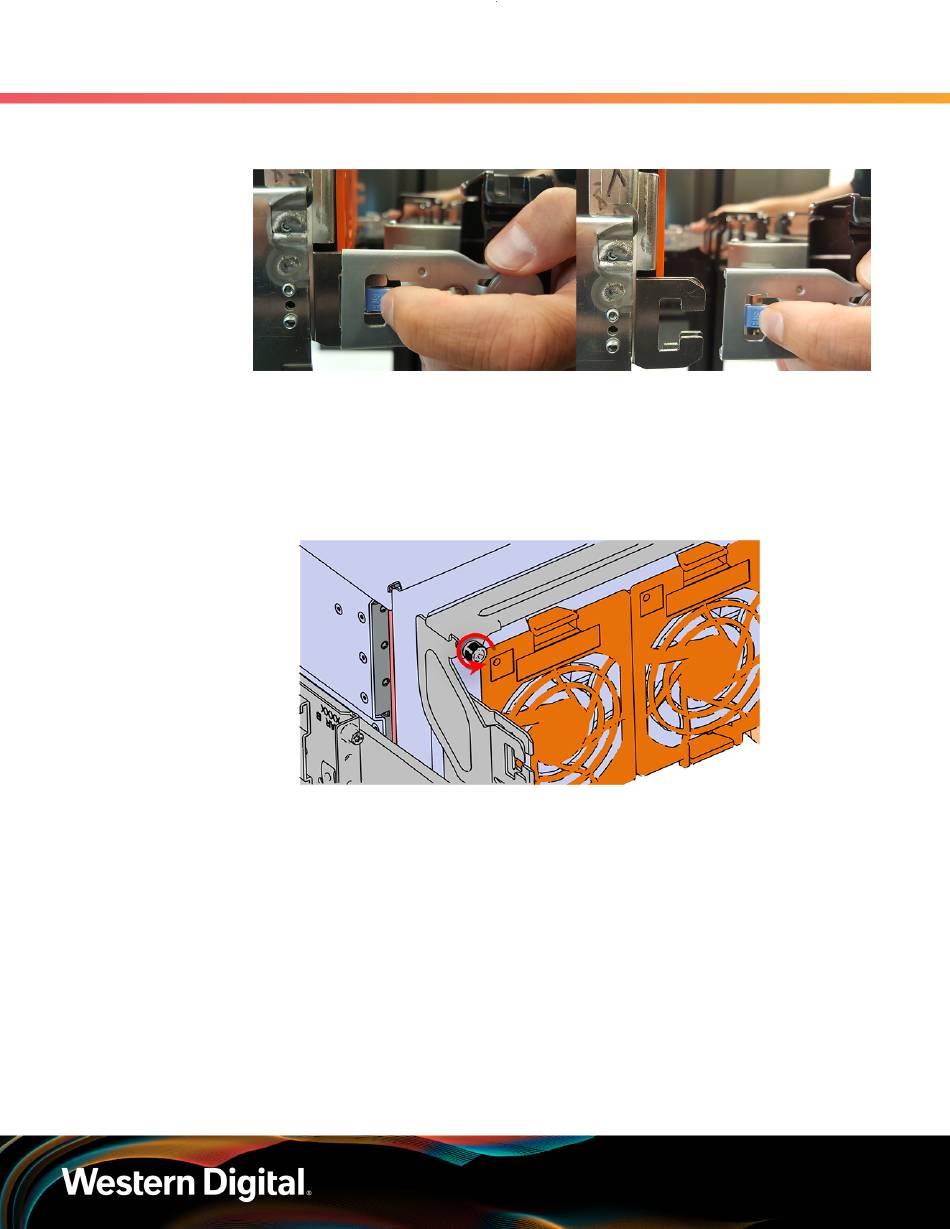

Figure 5: Unlatching a CMA Connector
Removing the Crossbar
Step 7 : Uninstall the crossbar from the CMA mounting bracket.
a. Locate the crossbar thumbscrew that secures the crossbar to the CMA mounting brackets
and unscrew it.
Figure 6: Unscrew Thumbscrew
b. Swing the crossbar away from the enclosure.
8
