1. EU EcoDesign Disclosures
EcoDesign Disclosures
1.4 Ultrastar Data102 Disassembly

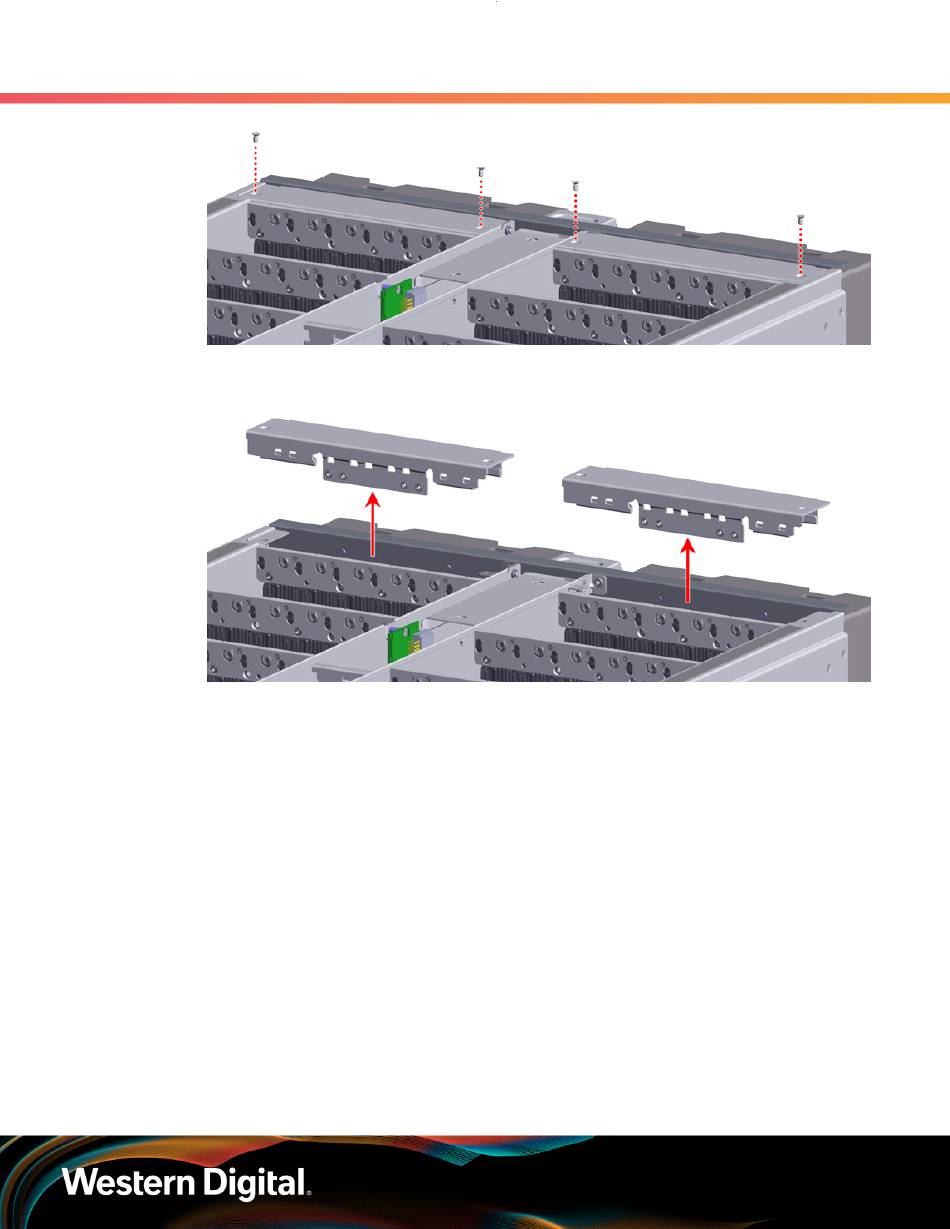

Step 33 : Pull the plenum covers upward to remove them from the chassis:
Removing the Fan Housing Assembly
The following image shows the fan housing assembly in red (for identification purposes only):
24
