1. EU EcoDesign Disclosures
EcoDesign Disclosures
1.4 Ultrastar Data102 Disassembly

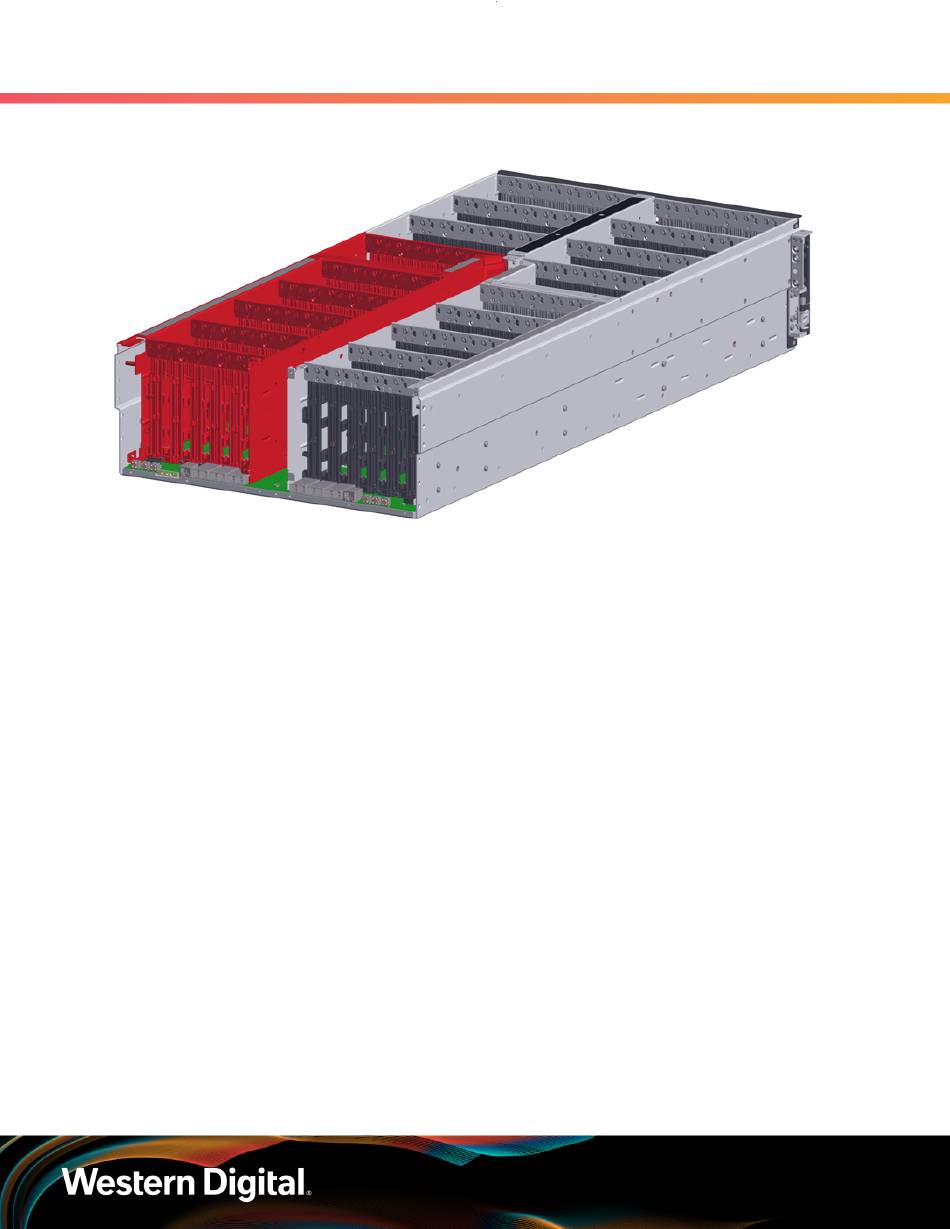

Figure 46: Rear-Right Drive Housing Location, As Viewed from Rear-Left-Top
Step 45 : At the front of the rear-right drive housing, use a T7 Torx screwdriver to remove the four (4) M3
6mm screws securing the drive housing to the side-panel of the chassis:
33
