1. EU EcoDesign Disclosures
EcoDesign Disclosures
1.4 Ultrastar Data102 Disassembly

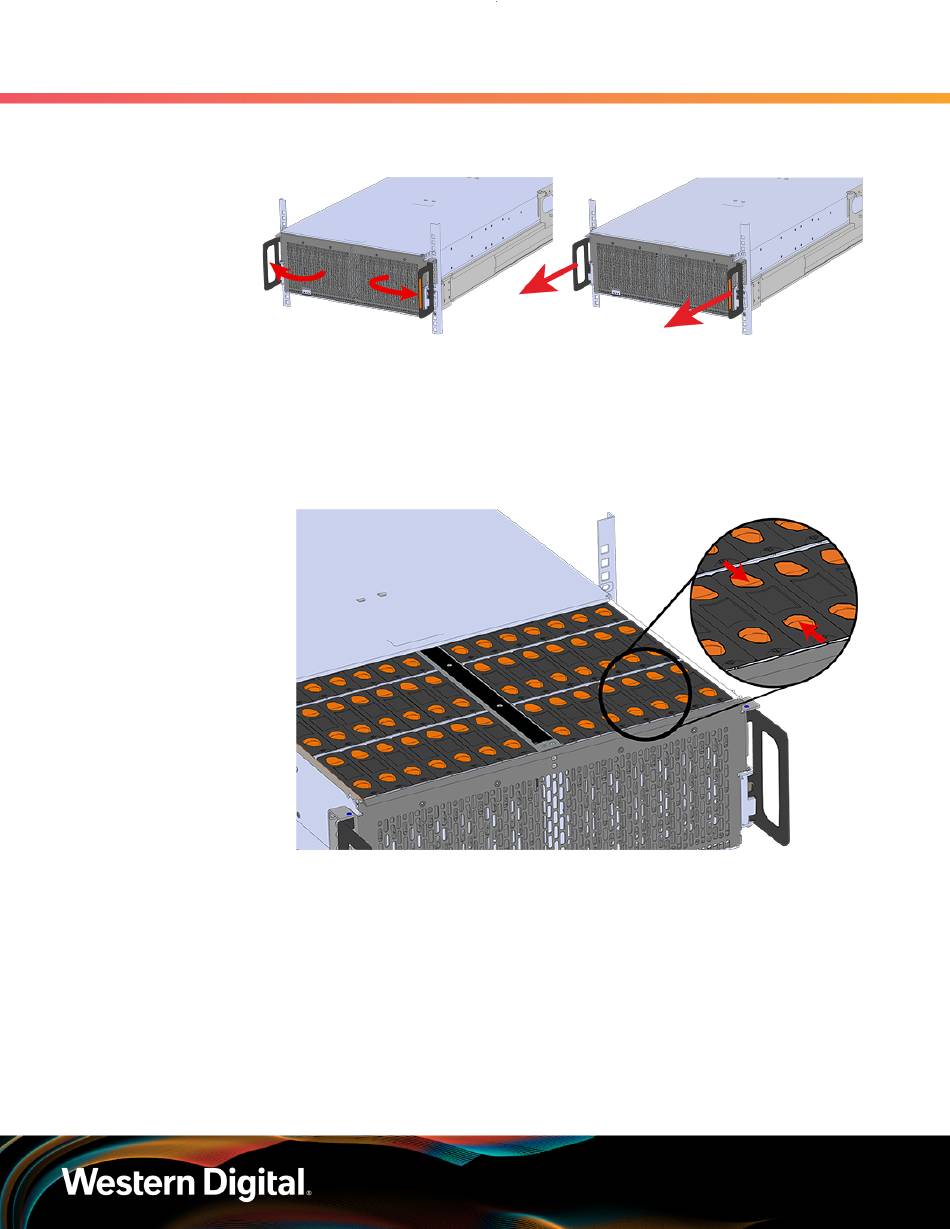

Figure 10: Chassis Handle Operation
Removing the Drives
Step 11 : Follow these steps to remove a Drive Assembly.
a. Find the latch release mechanism on the Drive Assembly being removed.
b. Insert a finger and a thumb into the latch release and pinch to unlatch the Drive Assembly.
Figure 11: Unlatch Drive Carrier (IOM Not Shown)
c. Lift the Drive Assembly free from the enclosure.
