1. EU EcoDesign Disclosures
EcoDesign Disclosures
1.4 Ultrastar Data102 Disassembly
Step 9 : To unlatch the rear fan from the fan housing, use one hand to press the clip at the top and
bottom of the fan and pull to free it from the chassis and remove it.

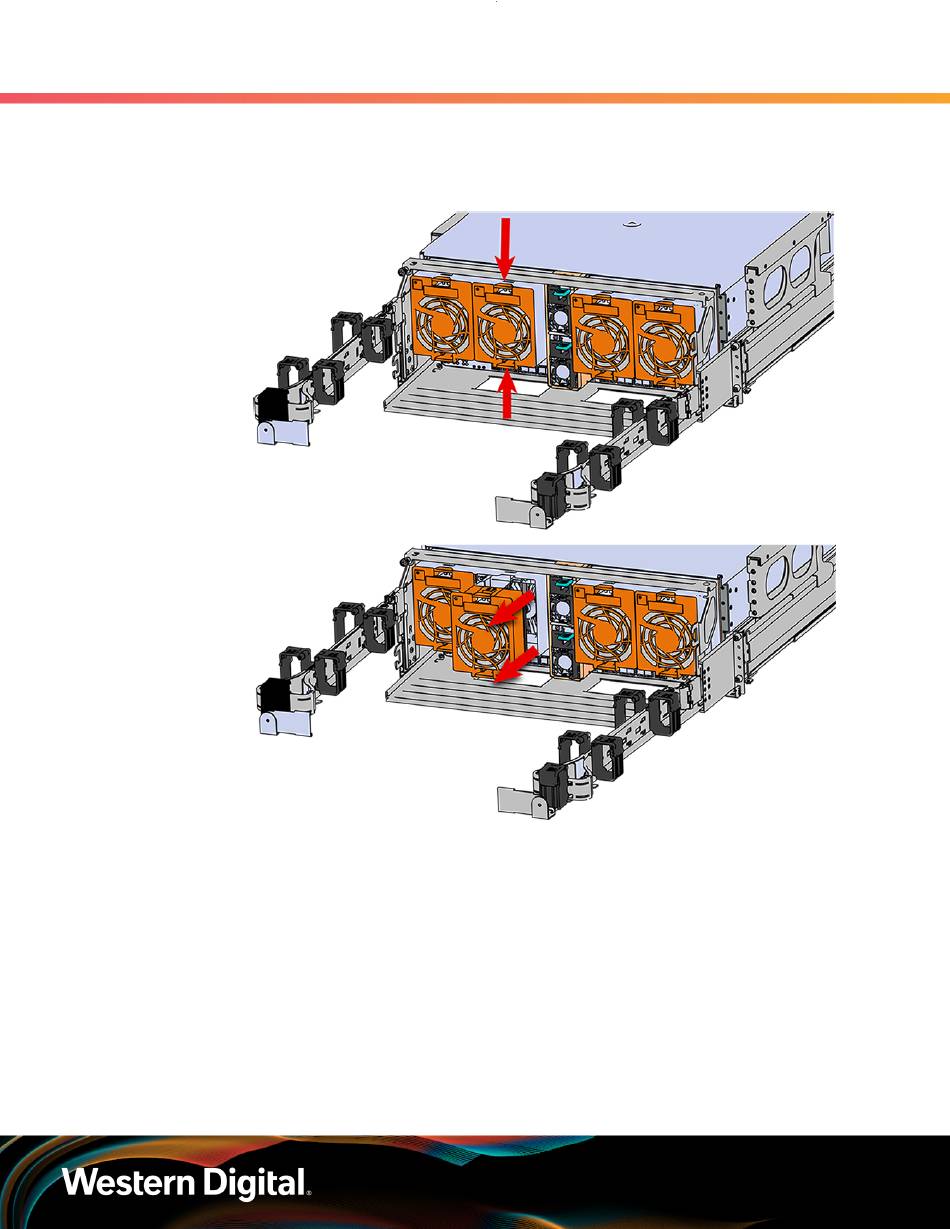

Figure 9: Uninstalling the Rear Fan
Extending the Enclosure
Step 10 : Grasp both handles at the front of the enclosure and pull with even pressure to extend the
chassis out of the rack until it is stopped by the safety latches. The safety latches will prevent the
enclosure from coming out of the rack completely and the cover will remain in the rack attached
to the rear alignment brackets.
