1. EU EcoDesign Disclosures
EcoDesign Disclosures
1.4 Ultrastar Data102 Disassembly

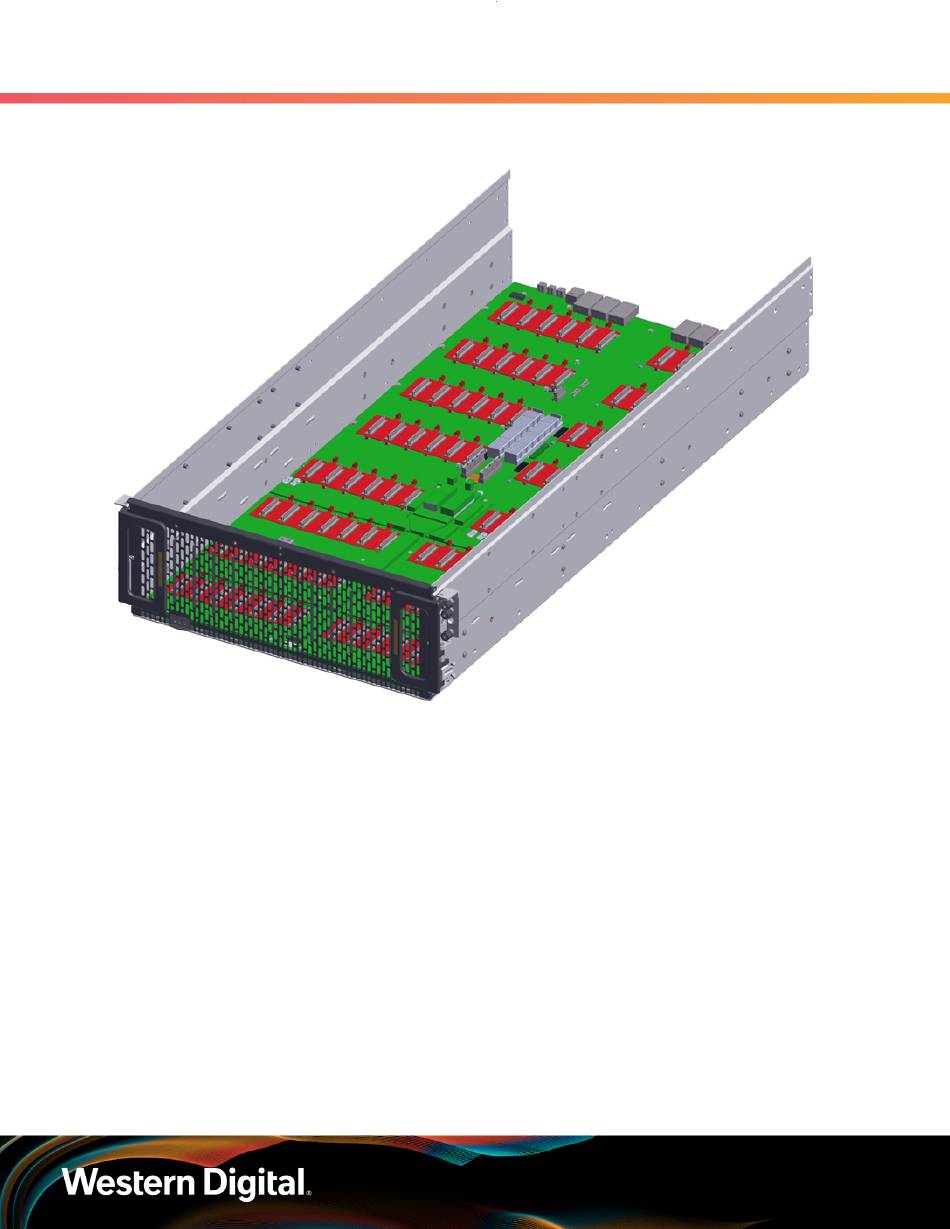

Figure 59: HDD Limiter Locations
The bottom side of each limiter has either twelve (12) or fourteen (14) clips that hold it to the baseboard;
these clips must be disengaged from the baseboard in order to remove the limiter:
43
