Releasing the Chassis Cover From the Rack
Step 22 : Release the safety latch on the inner rails on each side of the chassis as shown in the following
image.
Step 23 : Push the chassis back into the rack.
Step 24 : Locate the M5 thumb-screws on the top cover of the enclosure that keep it in place when the
drawer is extended, and unscrew them using a T15 Torx screwdriver. This will allow the top cover
to move freely with the enclosure when the enclosure is removed.

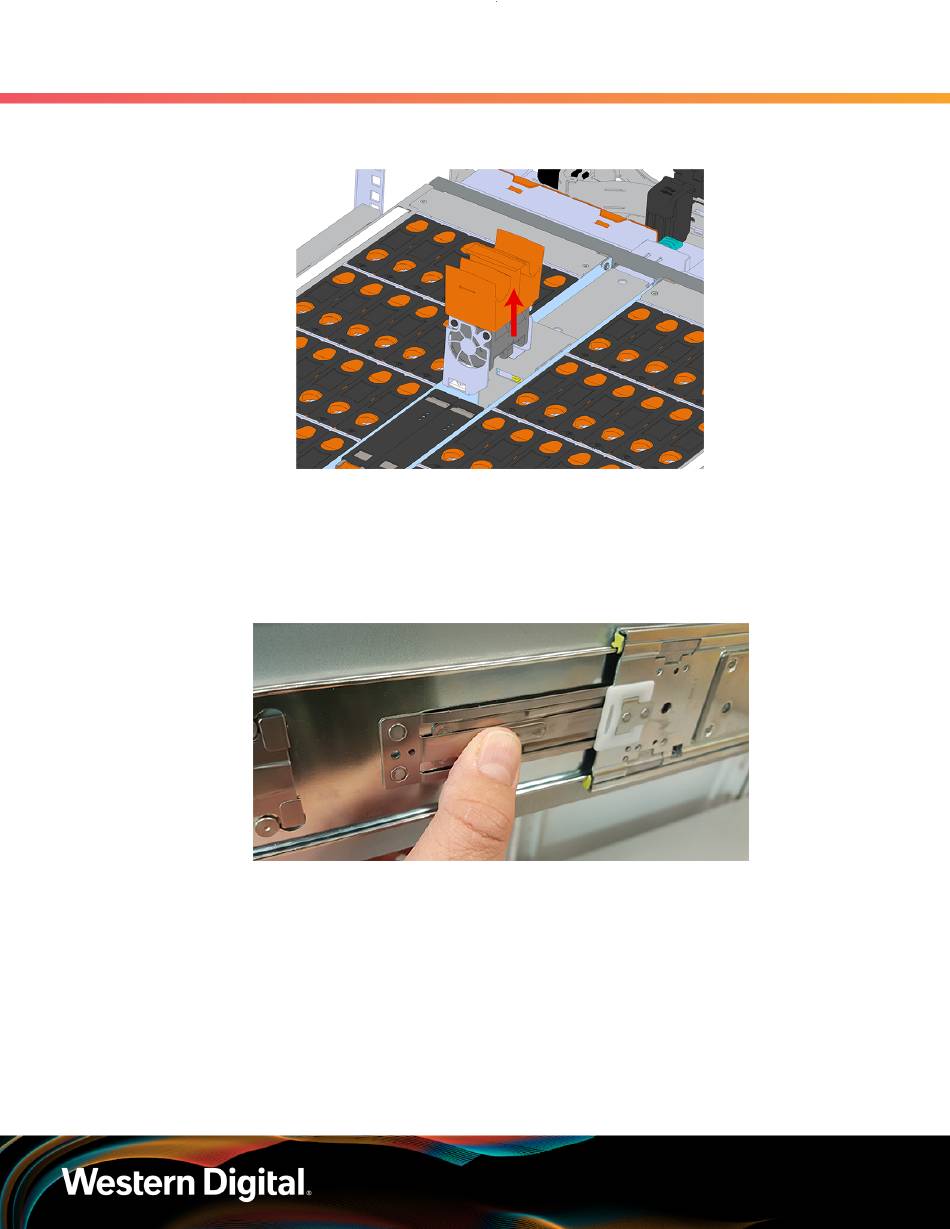

Figure 19: Removing IOM Fan
Figure 20: Inner Rail Safety Latch Release
