EcoDesign Disclosures

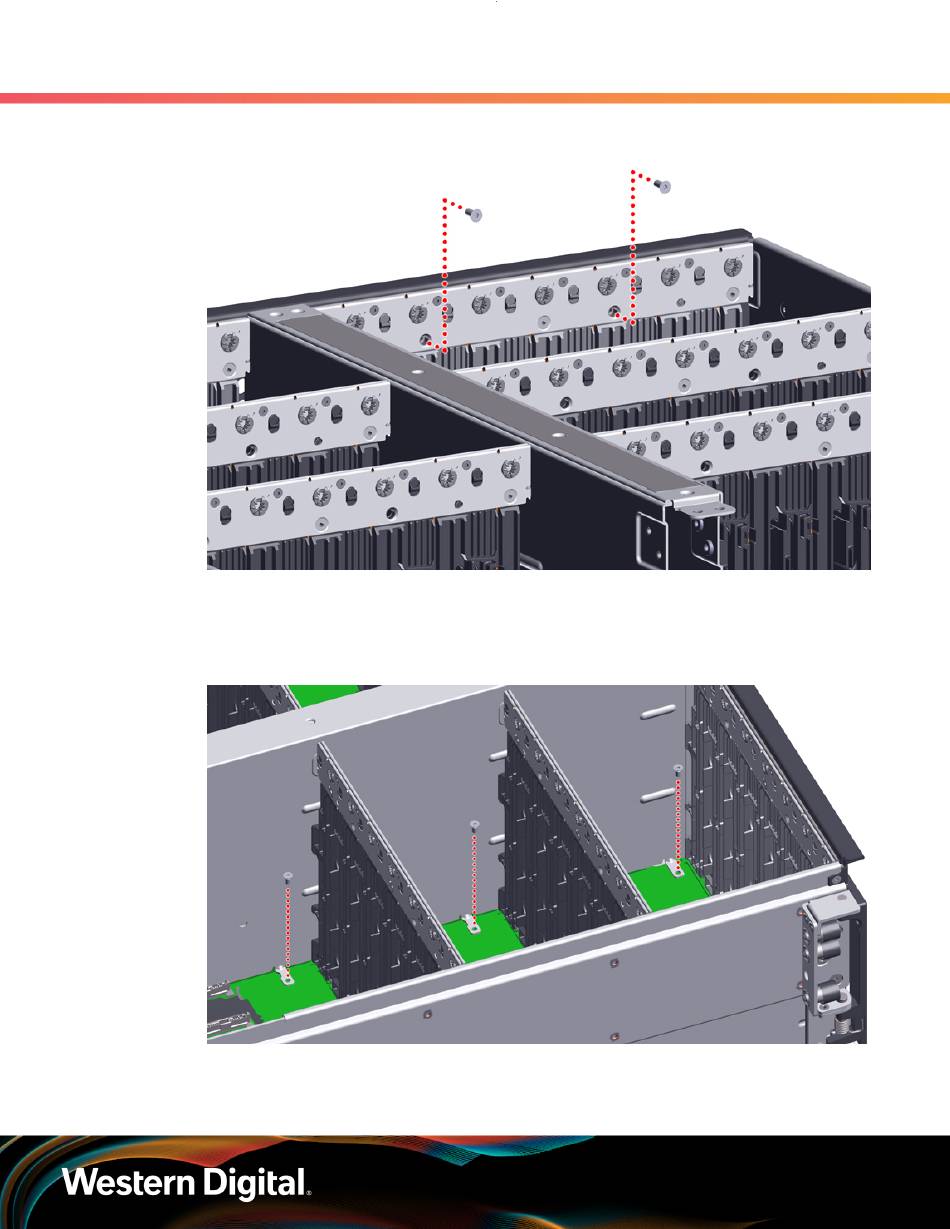

Figure 54: Front-Left Corner, As Viewed from Right-Rear-Top
Step 53 : Inside the drive bays of the front-left drive housing, use a T7 Torx screwdriver to remove the
three (3) M3 6mm screws securing the drive housing to the baseboard:
Figure 55: Front-Left Corner, As Viewed from Left-Rear-Top
Step 54 : Inside the drive bays of the front-left drive housing, use a T7 Torx screwdriver to remove the eight
(8) screws securing the drive housing to the sidewall of the chassis:
