1.4 Ultrastar Data102 Disassembly
This task provides instructions for disassembling an Ultrastar Data102 .
Table 1: Procedure Requirements
T7, T8, & T10 Torx Screwdrivers
#2 Phillips Screwdriver
Opening the CMA(s)
Step 1 : Place the CMA(s) into service position.
a. Unlatch the CMA(s) from the rail at the elbow connector by pressing the blue release
button.
b. Swing the CMA(s) away from the enclosure.
c. The arm(s) should be extended away from the enclosure as shown in the following
example.
* Two people required for lifting enclosure; only 1 required for disassembly
Required Tools

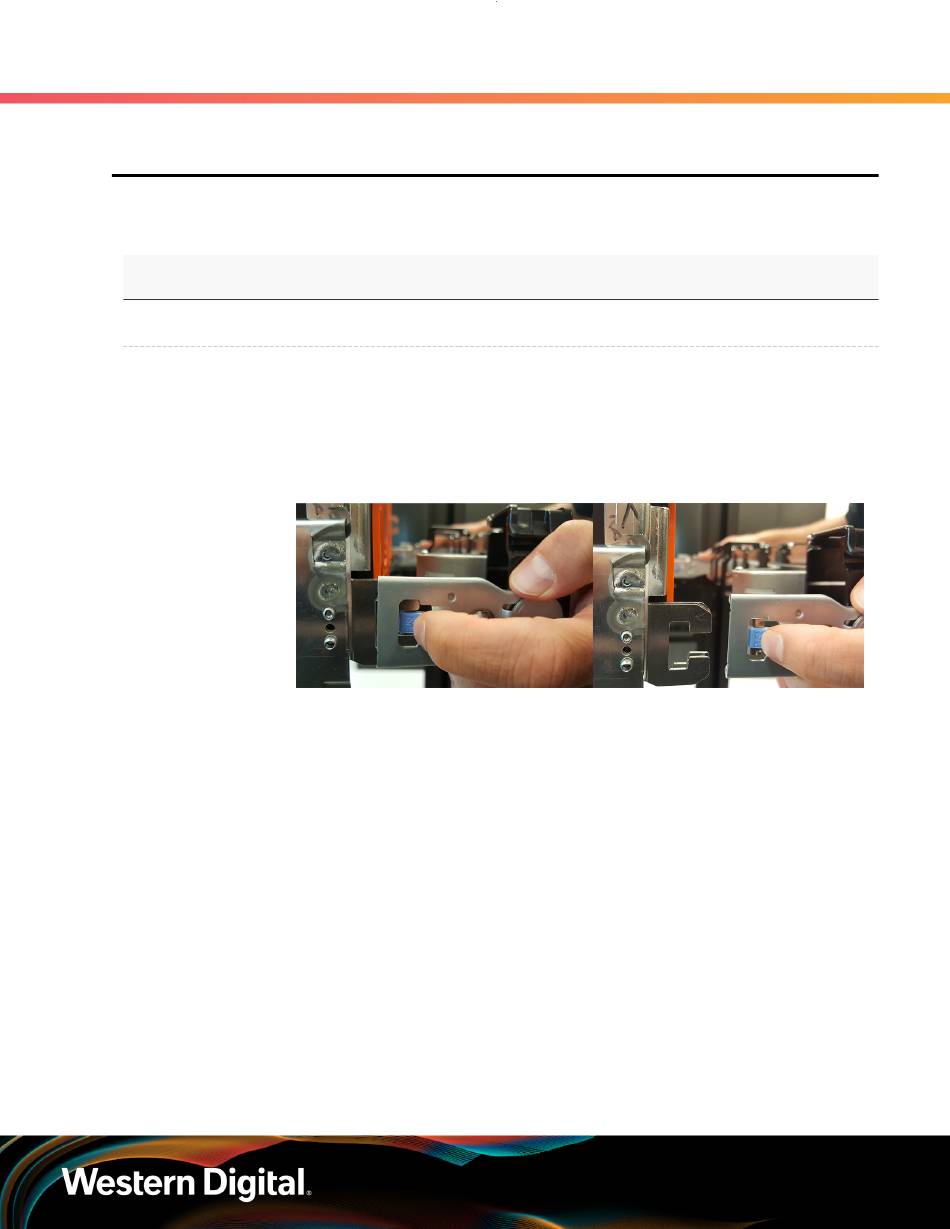

Figure 1: Unlatching a CMA Connector
1. EU EcoDesign Disclosures

1.4 Ultrastar Data102 Disassembly

# of People Required
Two *
Time
Required
2 hours
