Step 3 : Disconnect the HD Mini-SAS cables from the rear of the enclosure by pulling (don't jerk) on the
blue tab that is extending outward from the connector. This will free the cable from the port.
Make sure each cable is labeled or label them yourself to ensure that they will be plugged back
into the same location.
Step 4 : Unplug the Ethernet cables from the out-of-band management ports.
Step 5 : Uncable the CMA(s).
a. Open all of the basket clips on the CMA(s).
b. Remove one cable at a time from the arm, making sure not to put too much strain on the
arm.
Removing the CMA(s)
Step 6 : Remove the CMA(s).
a. Release all of the connectors that attach the CMA(s) to the enclosure and the rail.
b. To release a connector, press the blue latch release button and pull the connector free.

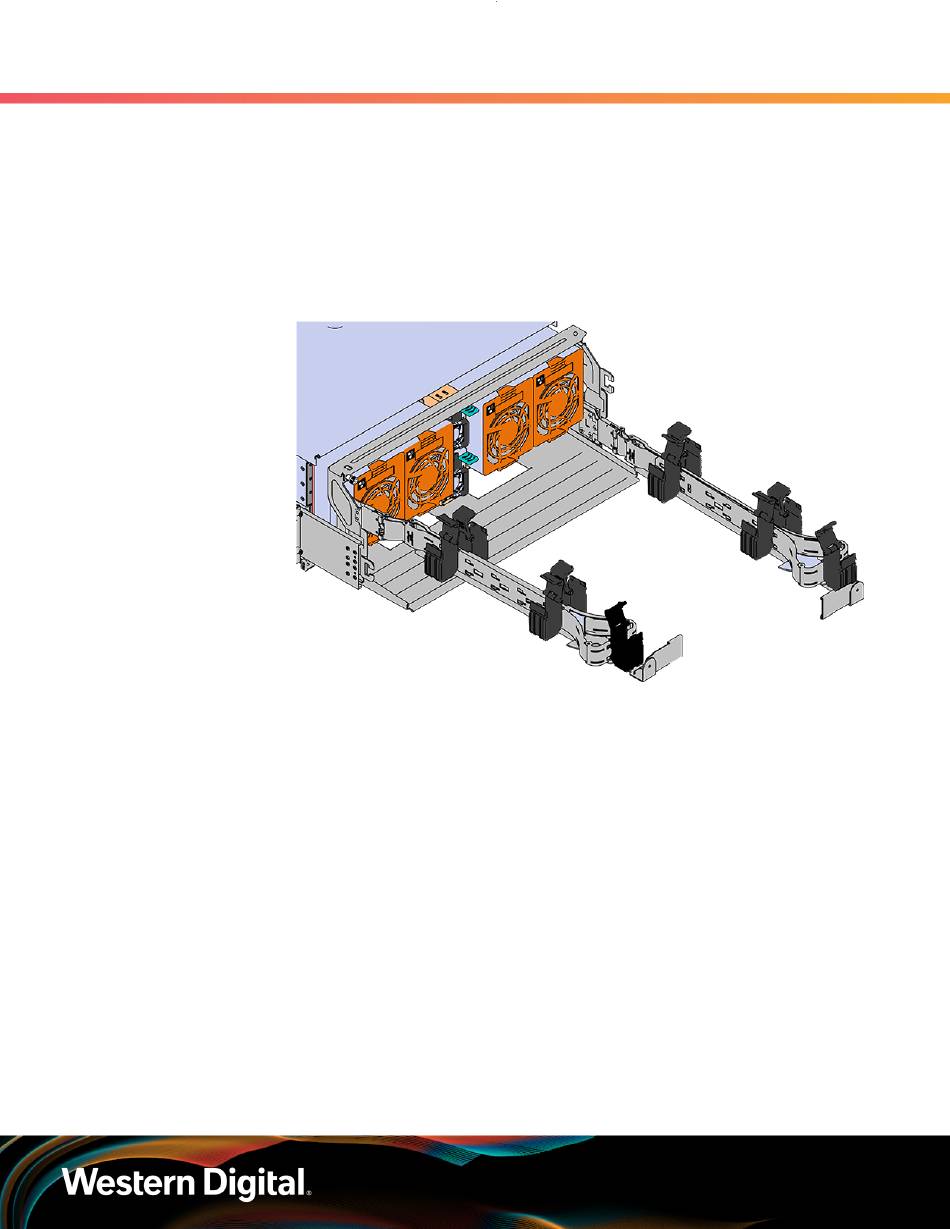

Figure 4: Open Baskets
There are three total connections that need to be released, one at the elbow and two
at the opposite end.
