1. EU EcoDesign Disclosures
EcoDesign Disclosures
1.4 Ultrastar Data102 Disassembly

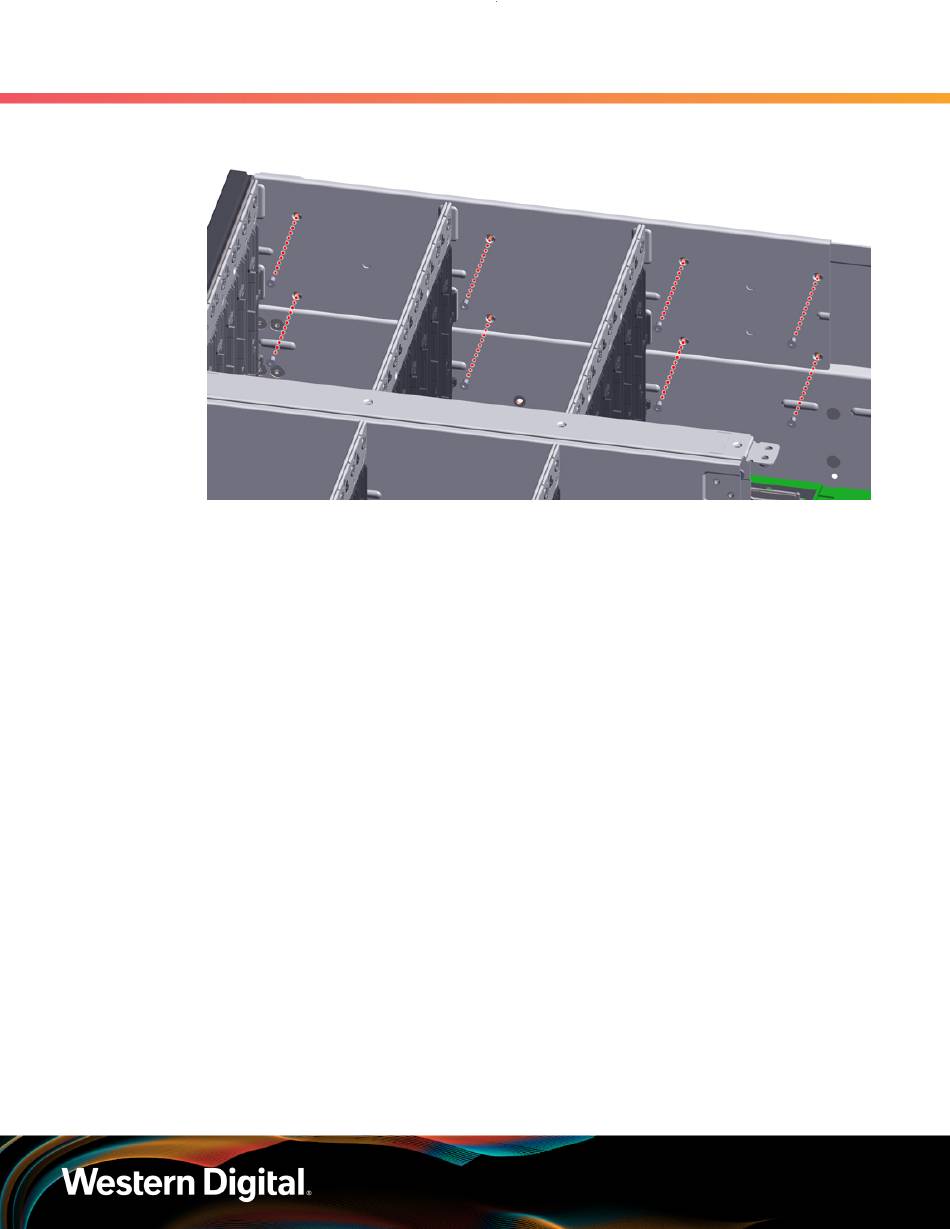

Figure 56: Front-Left Corner, As Viewed from Right-Rear-Top
Step 55 : On the outside of the chassis, use a T8 Torx screwdriver to remove the three (3) K30 10mm
screws securing the housing to the chassis:
40
