1.4 Ultrastar Data102 Disassembly

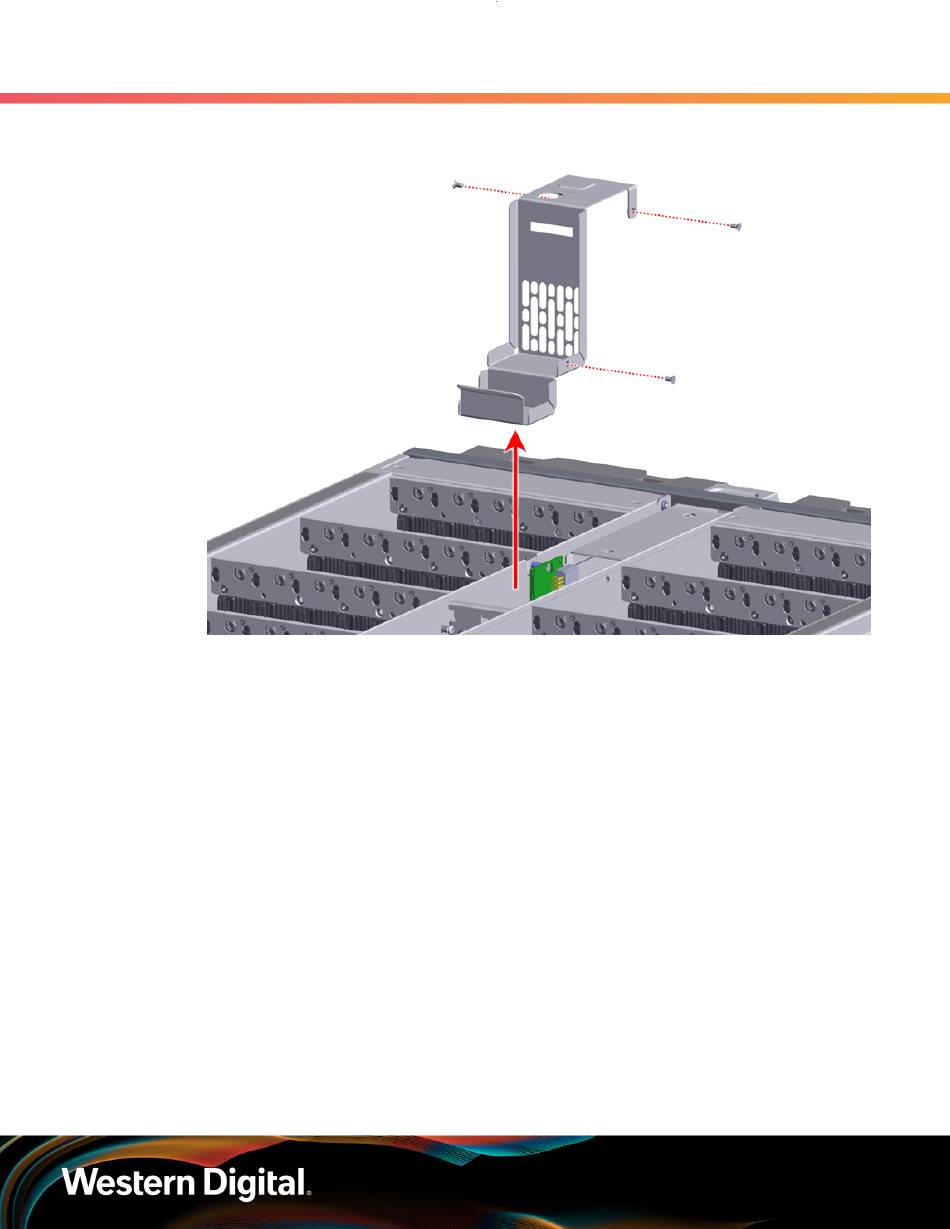

Step 30 : Use a T7 Torx screwdriver to remove the three (3) M3 6mm screws securing the PDB cover to the
left and right rear drive housings. Then pull the PDB cover upward to remove it from the chassis:
Removing the Plenum Covers
The following image shows the plenum covers in red (for identification purposes only):
