1. EU EcoDesign Disclosures
EcoDesign Disclosures
1.4 Ultrastar Data102 Disassembly

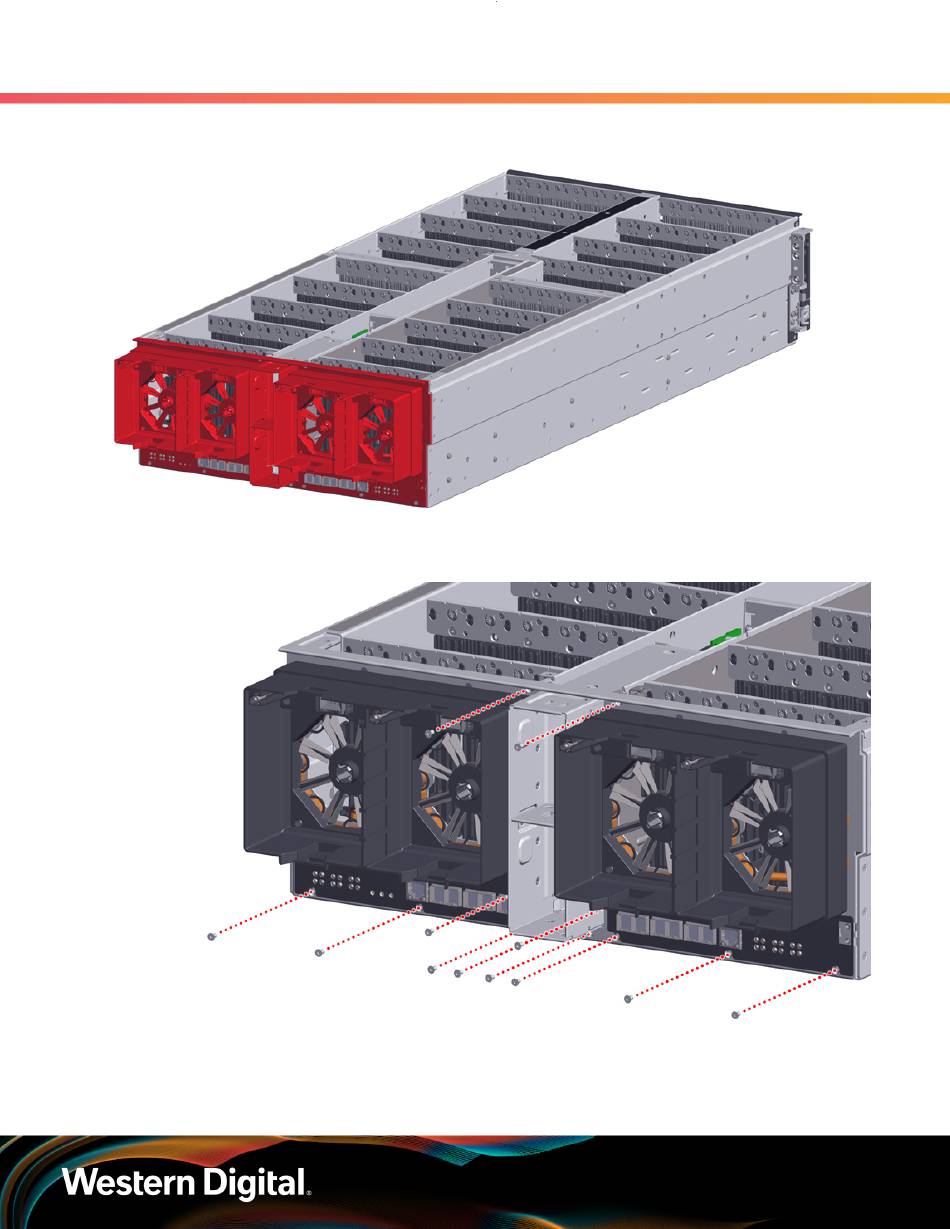

Figure 33: Fan Housing Assembly Location
Step 34 : Use a T7 Torx screwdriver to remove the twelve (12) M3 6mm screws securing the fan housing
assembly to the rear of the chassis:
The following image shows the screws in red (for identification purposes only):
25
