1.4 Ultrastar Data102 Disassembly

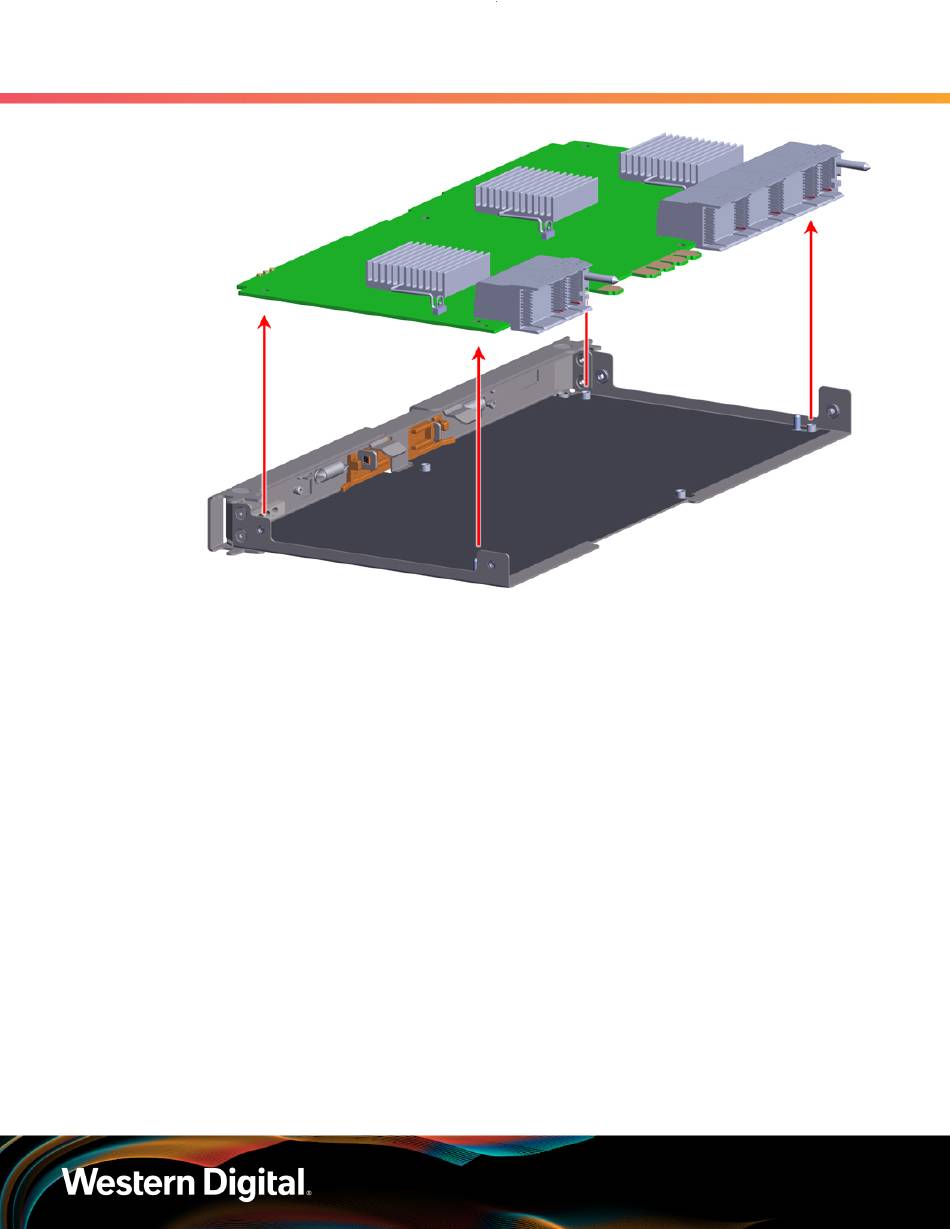

Step 20 : If applicable, repeat these steps to remove the circuit board from the other IOM.
Removing the IOM Fan
Step 21 : Remove the IOM Fan.
a. With one hand, grasp around the center square of the fan housing as shown in the
following image.
b. Pinch the IOM fan housing to release the latching mechanism and pull it straight out from
the chassis.
