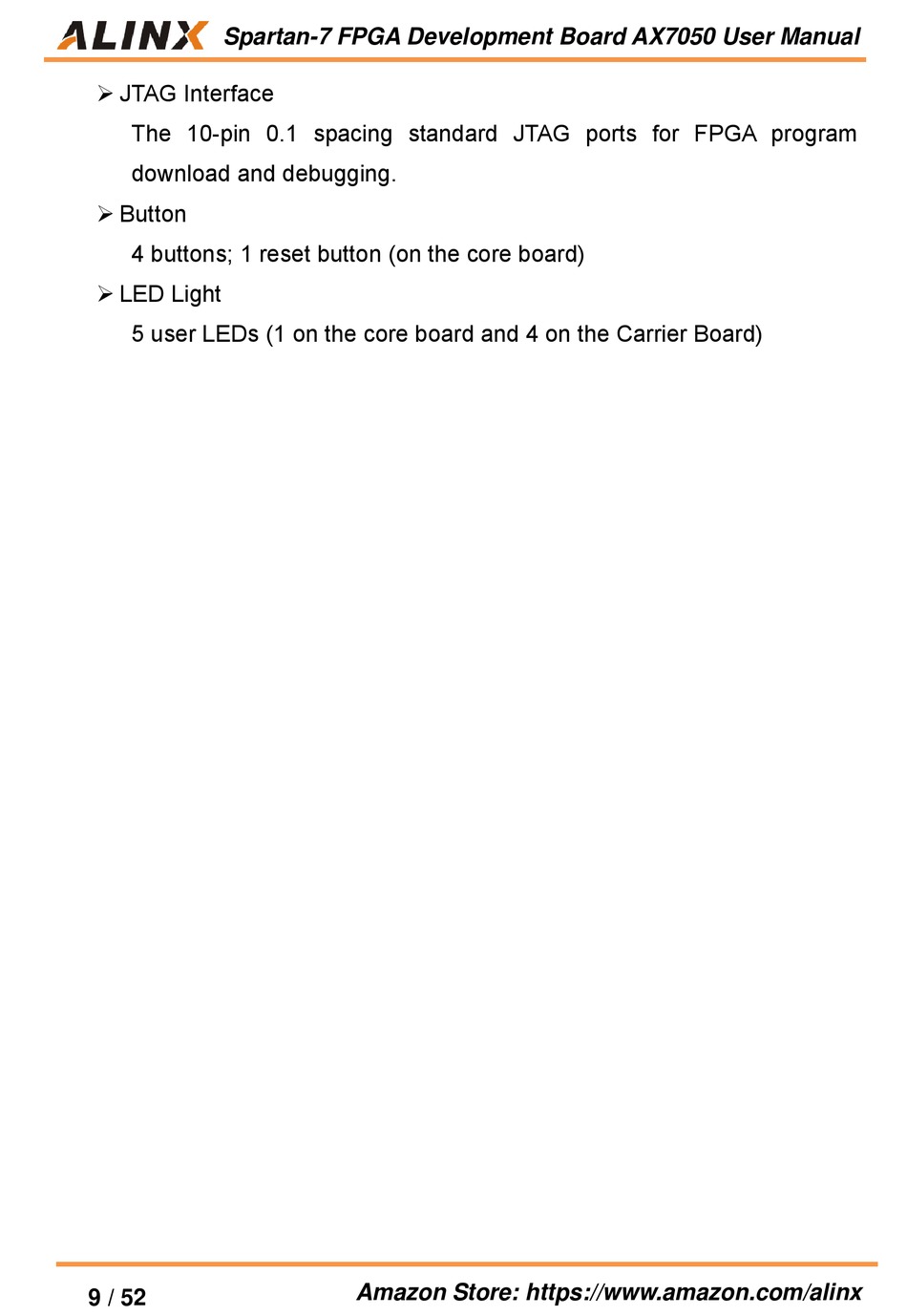

Alinx AX7050 User Manual page 9

Spartan-7 FPGA Development Board AX7050 User Manual
 JTAG Interface
The 10-pin 0.1 spacing standard JTAG ports for FPGA program
download and debugging.
 Button
4 buttons; 1 reset button (on the core board)
 LED Light
5 user LEDs (1 on the core board and 4 on the Carrier Board)
