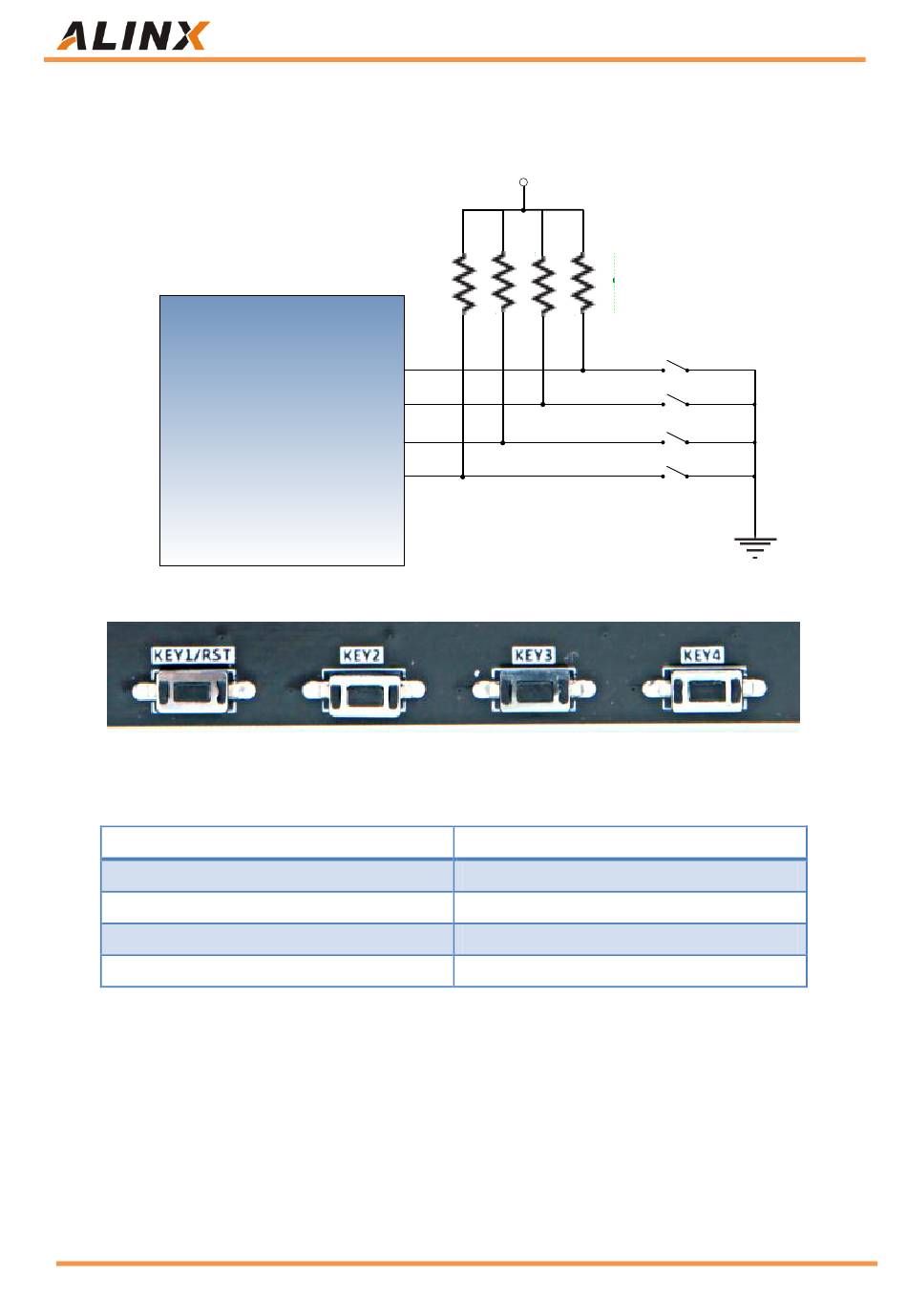

no button is pressed, The IO input voltage of the FPGA is high. The circuit of
the button part is shown in Figure 3-12-1.
Spartan7
Figure 3-12-2: Four Buttons on the Carrier Board
Buttons Pin Assignment
Part 3.13: LED Light
There are seven red LEDs on the AX7050 FPGA Carrier Board, one of
which is the power indicator (PWR), two are USB Uart data receiving and
transmitting indicators, and four are users LED lights (LED1~LED4). When the
board is powered on, the power indicator will light up; User LED1~LED4 are
49 / 52
Spartan-7 FPGA Development Board AX7050 User Manual
U6
M15
FPGA
L15
AB19
AA21
Figure 3-12-1: Button Schematic
Net Name
KEY1
KEY2
KEY3
KEY4
Amazon Store: https://www.amazon.com/alinx
3.3V
KEY1
KEY2
KEY3
KEY4
FPGA PIN
M15
L15
AB19
AA21
