Spartan-7 FPGA Development Board AX7050 User Manual

Part 2.2: FPGA Chip

As mentioned above, the FPGA model we use is XC7S50FGGA484,
which belongs to Xilinx's Spartan7 series. The speed grade is 1, and the
temperature grade is commercial grade. This model is a FGGA484 package
with 484 pins. Xilinx Spartan7 FPGA chip naming rules as below

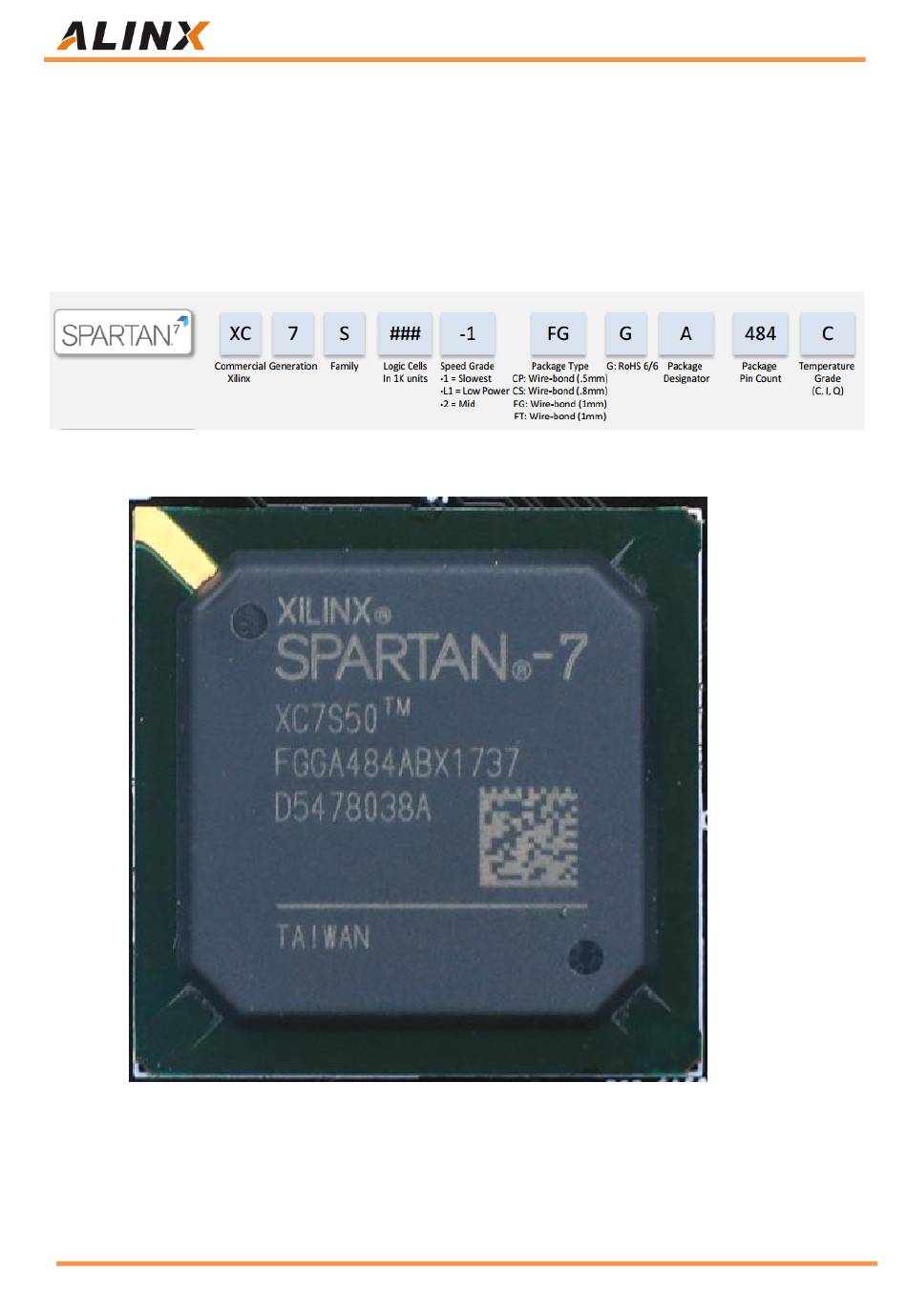

Figure 2-2-1: The Specific Chip Model Definition of Spartan7 Series
Figure 2-2-2: FPGA chip on board
