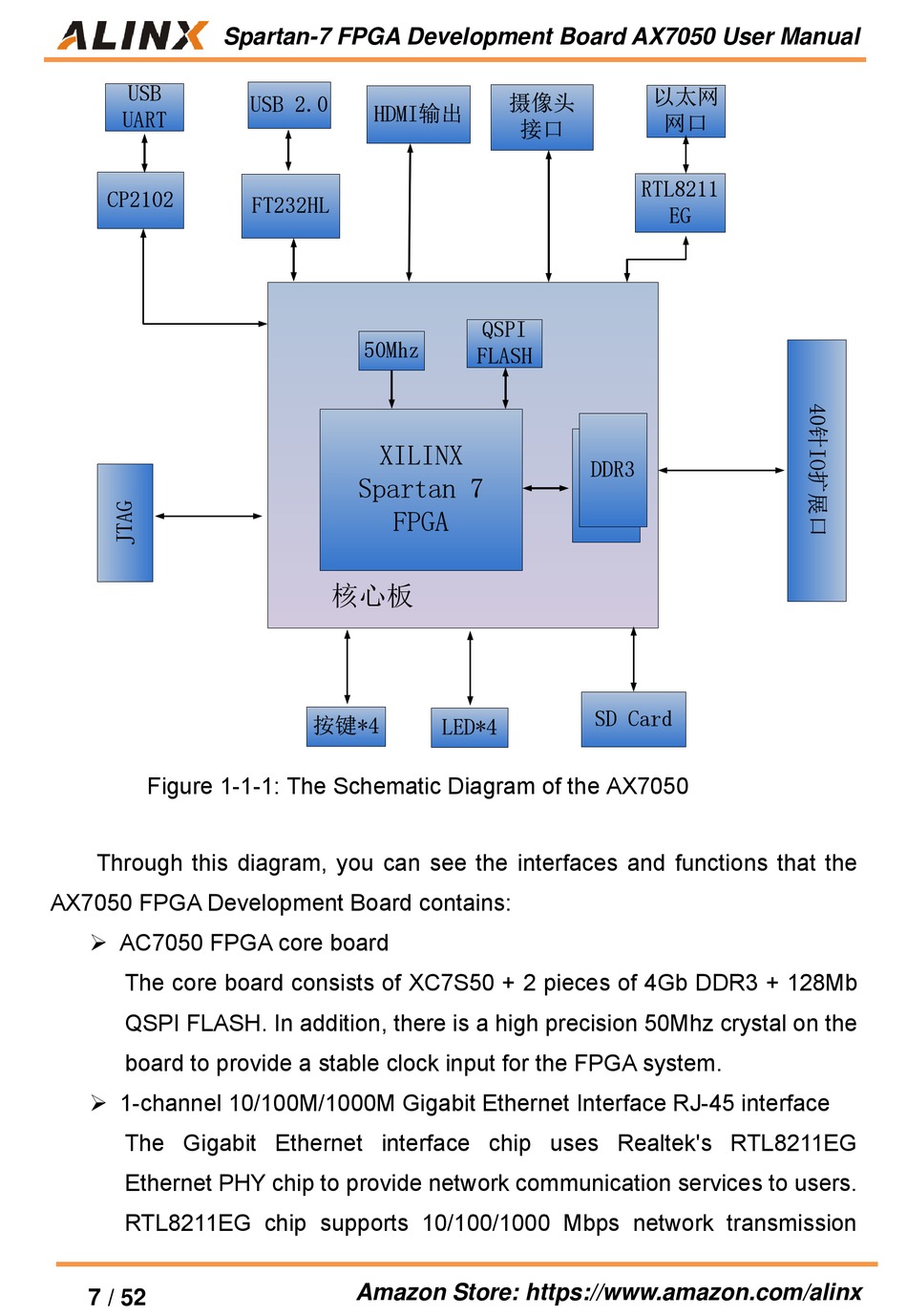

Figure 1-1-1: The Schematic Diagram of the AX7050
Through this diagram, you can see the interfaces and functions that the
AX7050 FPGA Development Board contains:
 AC7050 FPGA core board
The core board consists of XC7S50 + 2 pieces of 4Gb DDR3 + 128Mb
QSPI FLASH. In addition, there is a high precision 50Mhz crystal on the
board to provide a stable clock input for the FPGA system.
 1-channel 10/100M/1000M Gigabit Ethernet Interface RJ-45 interface
The Gigabit Ethernet interface chip uses Realtek's RTL8211EG
Ethernet PHY chip to provide network communication services to users.
RTL8211EG chip supports 10/100/1000 Mbps network transmission
7 / 52
Spartan-7 FPGA Development Board AX7050 User Manual
USB 2.0
HDMI输出
FT232HL
50Mhz
XILINX
Spartan 7
FPGA
核心板
按键*4
