Part 3.11: Camera Module Interface - Alinx AX7050 User Manual

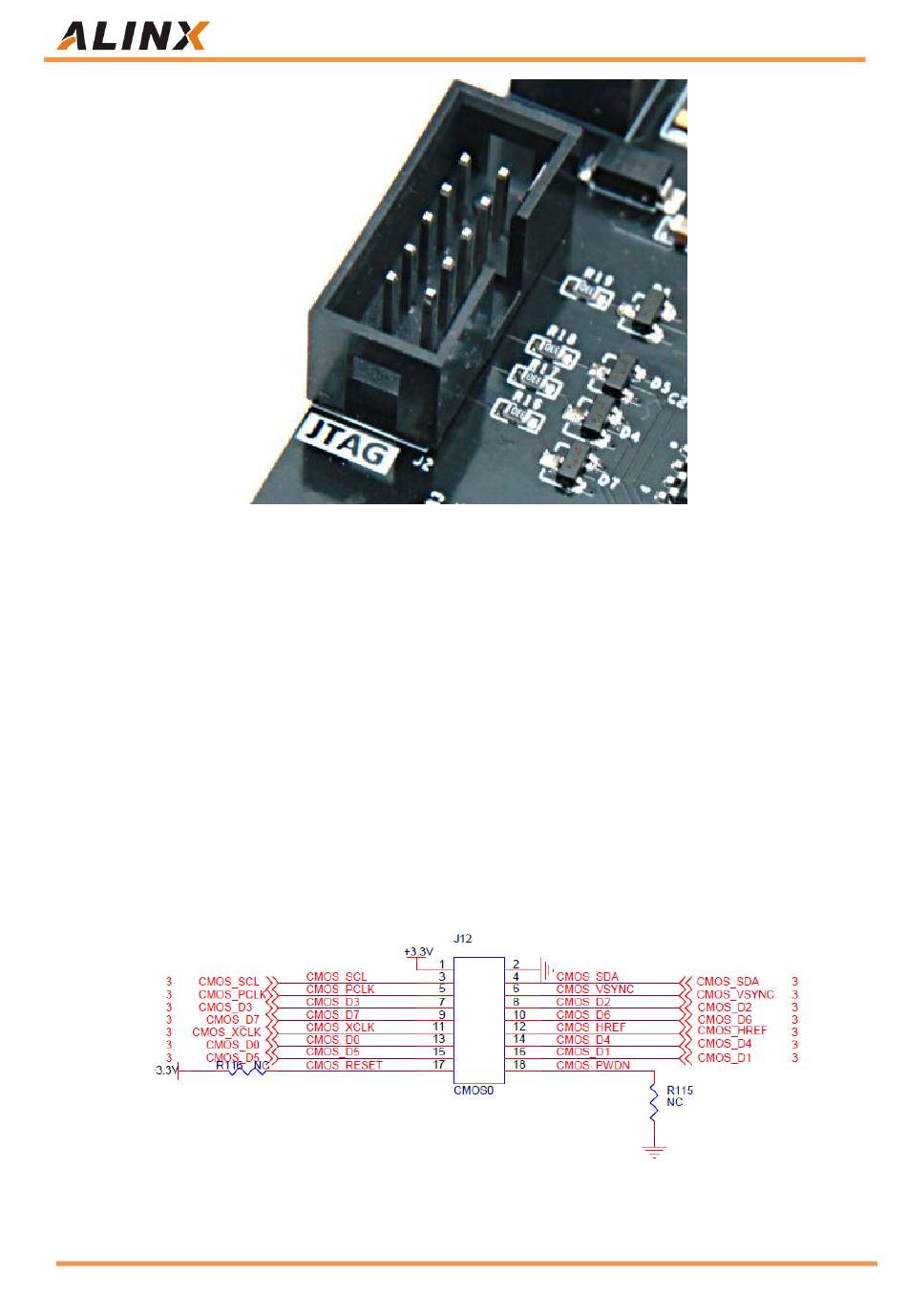

Figure 3-10-2: JTAG Interface on the Carrier Board
Be careful not to hot swap when JTAG cable is plugged and unplugged.

Part 3.11: Camera Module Interface

The AX7050 FPGA Carrier Board includes an 18-pin CMOS camera
interface for connecting ALINX's OV5640 camera module for video capture.
After acquisition, the monitor can be connected via HDMI or VGA. Regarding
the camera selection, the user can purchase as needed. When the interface is
not connected to the camera, it can be used as a normal IO port of the FPGA.
Figure 3-11-1: CMOS Camera Interface Schematic
