connected to the normal IO of the FPGA. When the IO voltage connected to the
user LED is configured low level, the user LED lights up. When the connected
IO voltage is configured as high level, the user LED will be extinguished. The

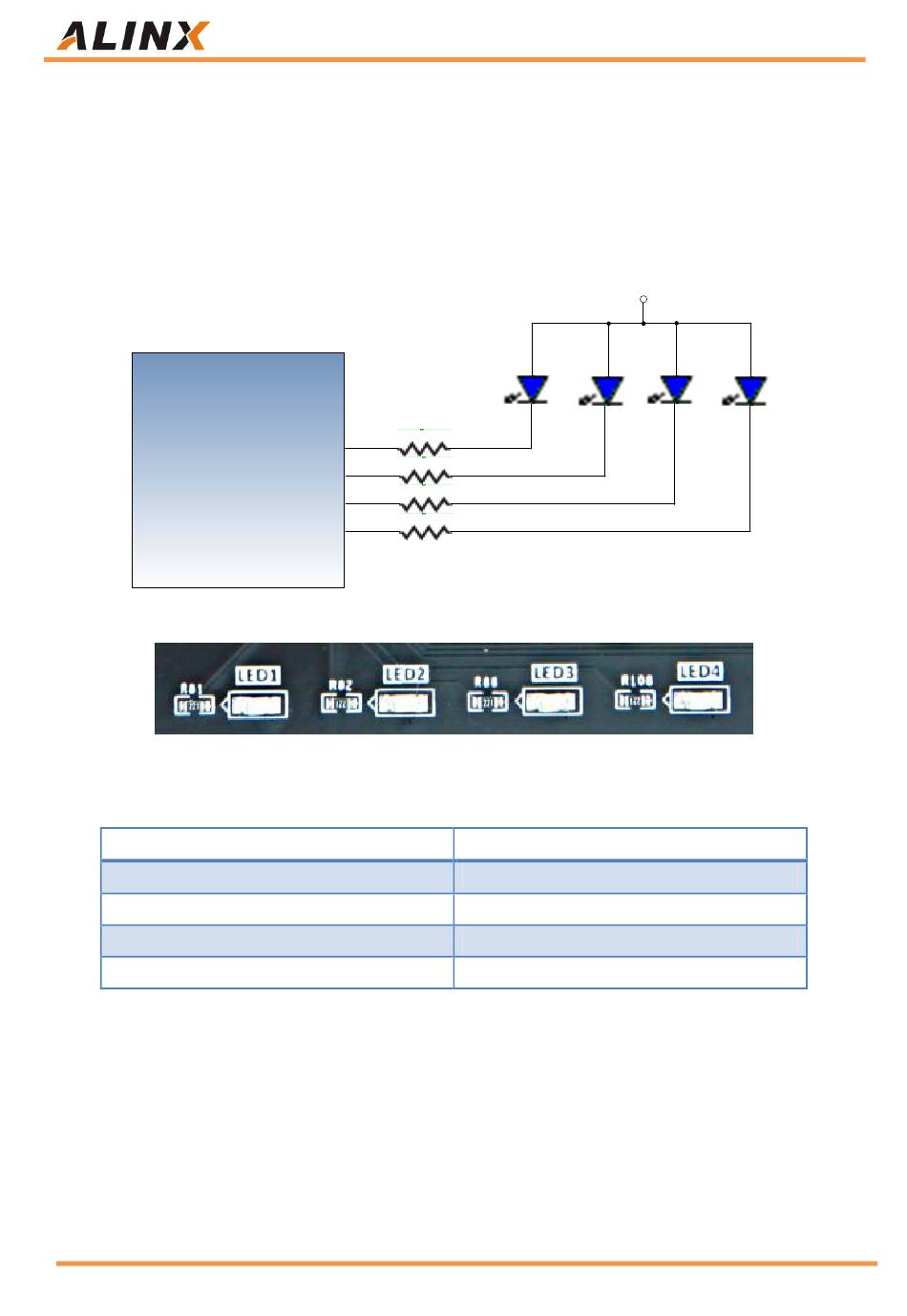

schematic diagram of the user LEDs hardware connection is shown in Figure
3-13-1.
FPGA
Spartan7
Figure 3-13-2: The User LEDs on the Carrier Board
Pin assignment of user LED lights
Part 3.14: Power Supply
The power input voltage of the AX7050 FPGA development board is DC5V.
The Carrier Board converts the +5V voltage to a +3.3V power supply via a
1-way DC/DC power supply chip MP1482. In addition, the +5V power supply
on the Carrier Board supplies power to the core board through the inter-board
50 / 52
Spartan-7 FPGA Development Board AX7050 User Manual
U6
H16
G16
K15
J15
Figure 3-13-1: The User LEDs Schematic
Signal Name
LED1
LED2
LED3
LED4
Amazon Store: https://www.amazon.com/alinx
3.3V
LED1 LED2 LED3
FPGA PIN
H16
G16
K15
J15
LED4
