Spartan-7 FPGA Development Board AX7050 User Manual
+1.8V FPGA auxiliary voltage
+3.3V VCCIO of Bank0 and Bank14 of FPGA,QSIP FLASH, Clock Crystal
+1.5V DDR3, Bank34 and Bank35 of FPGA
VREF,VTT(+0.75V) DDR3
VCCIO(+3.3V) FPGA Bank15, Bank16
The power circuit on the AC7050 FPGA core board is shown in Figure
2-11-2 and Figure 2-11-3

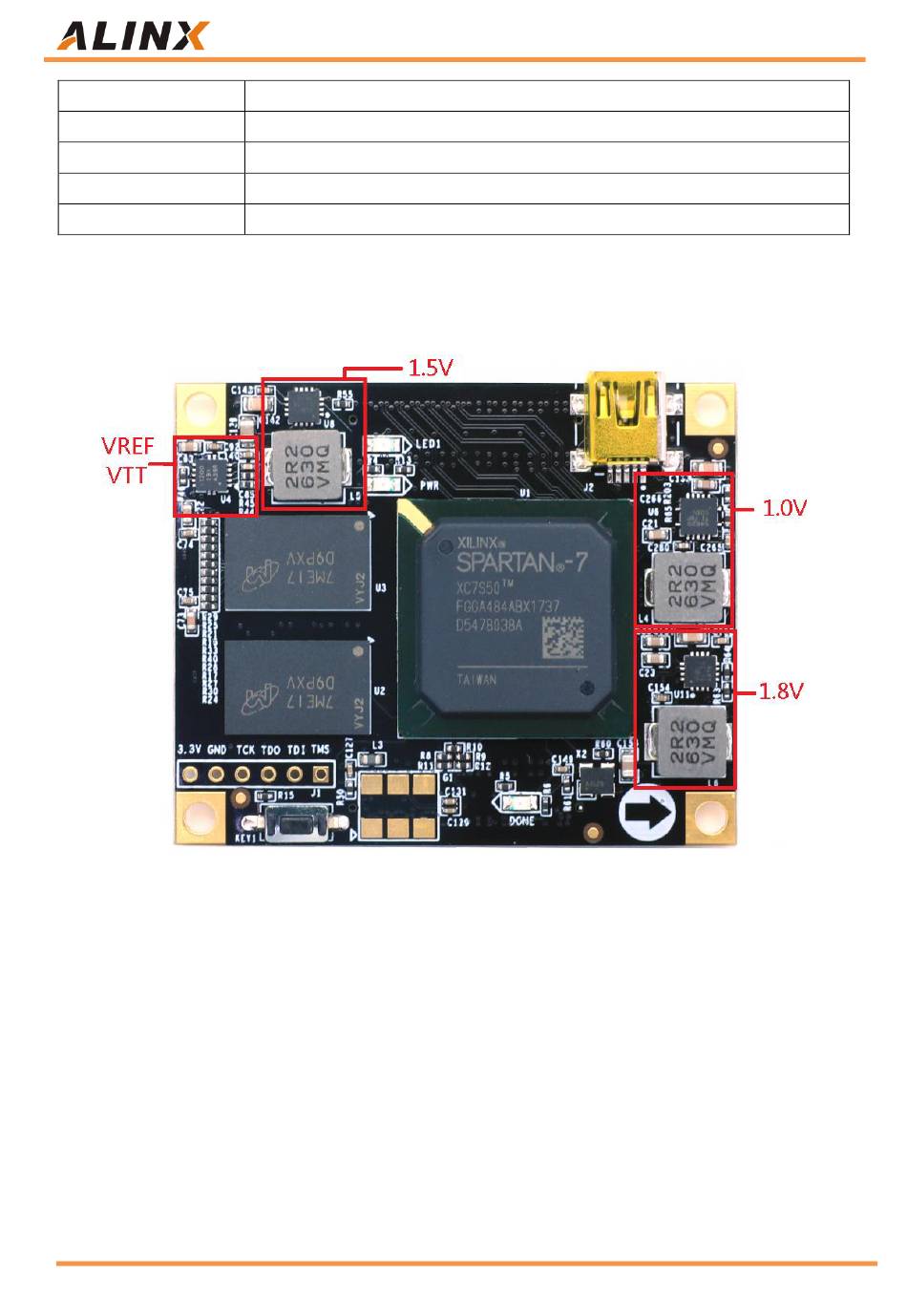

Figure 2-11-2: Power Supply on the AC7050 FPGA Core Board (Top View)
