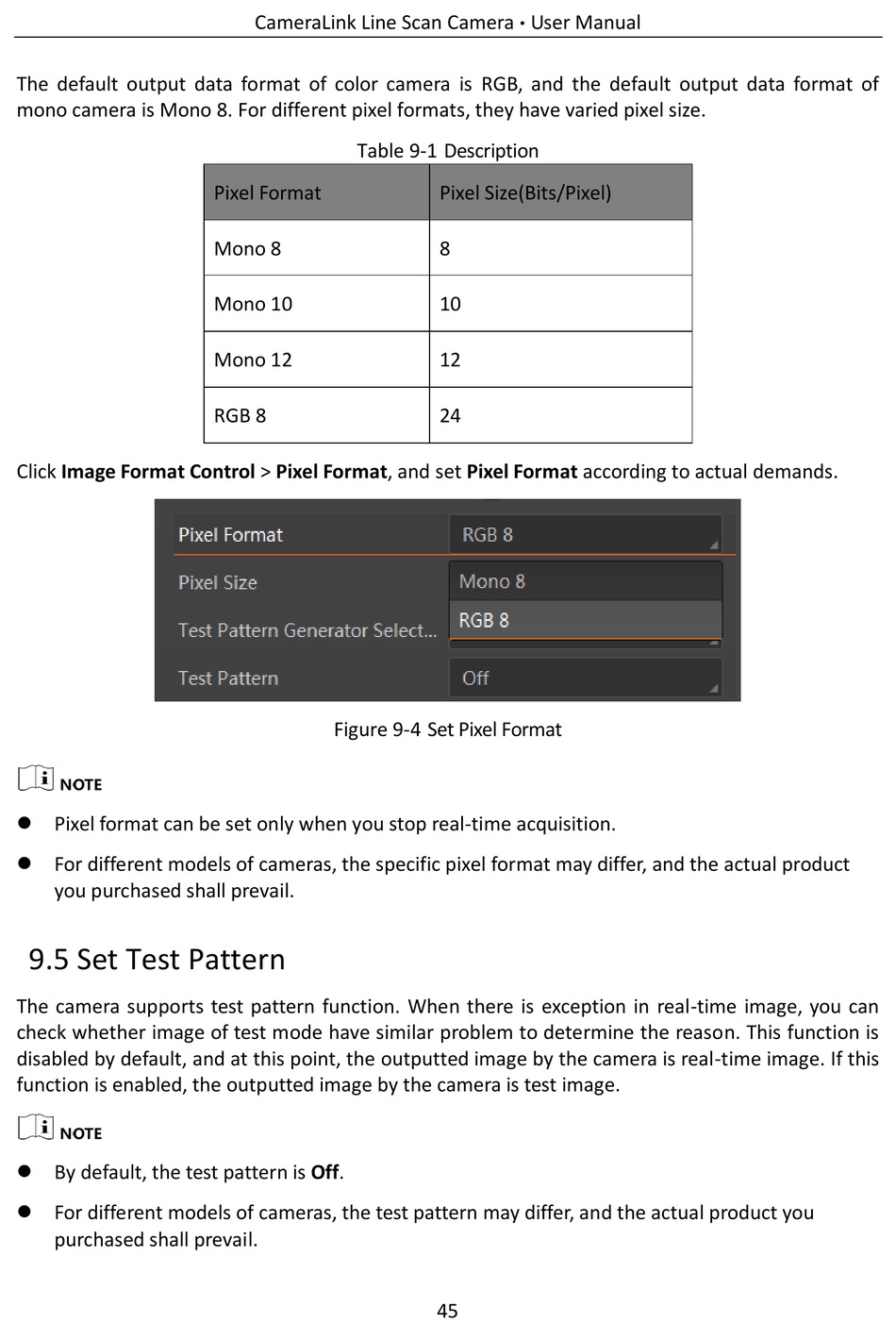

The default output data format of color camera is RGB, and the default output data format of
mono camera is Mono 8. For different pixel formats, they have varied pixel size.
Click Image Format Control > Pixel Format, and set Pixel Format according to actual demands.
 Pixel format can be set only when you stop real-time acquisition.
 For different models of cameras, the specific pixel format may differ, and the actual product
you purchased shall prevail.

9.5 Set Test Pattern

The camera supports test pattern function. When there is exception in real-time image, you can
check whether image of test mode have similar problem to determine the reason. This function is
disabled by default, and at this point, the outputted image by the camera is real-time image. If this
function is enabled, the outputted image by the camera is test image.
 By default, the test pattern is Off.
 For different models of cameras, the test pattern may differ, and the actual product you
purchased shall prevail.
CameraLink Line Scan Camera
Table 9-1 Description
Pixel Format
Mono 8
Mono 10
Mono 12
RGB 8
Figure 9-4 Set Pixel Format
User Manual
·
Pixel Size(Bits/Pixel)
8
10
12
24
