Micromeritics AccuPyc II 1340 Operator's Manual page 145

AccuPyc II 1340
4. Place the cup into the insert, then tilt the tool to one side to remove it from the sample cup.
5. If using a fritted filter cap, place it onto the top of the insert.
6. Replace the sample chamber cap.
After the operation is complete, perform the following steps to remove the sample cup and
insert:
1. Remove the sample chamber cap and place on a clean work surface with the greased side
facing upward.
2. Remove the fritted filter cap (if used).

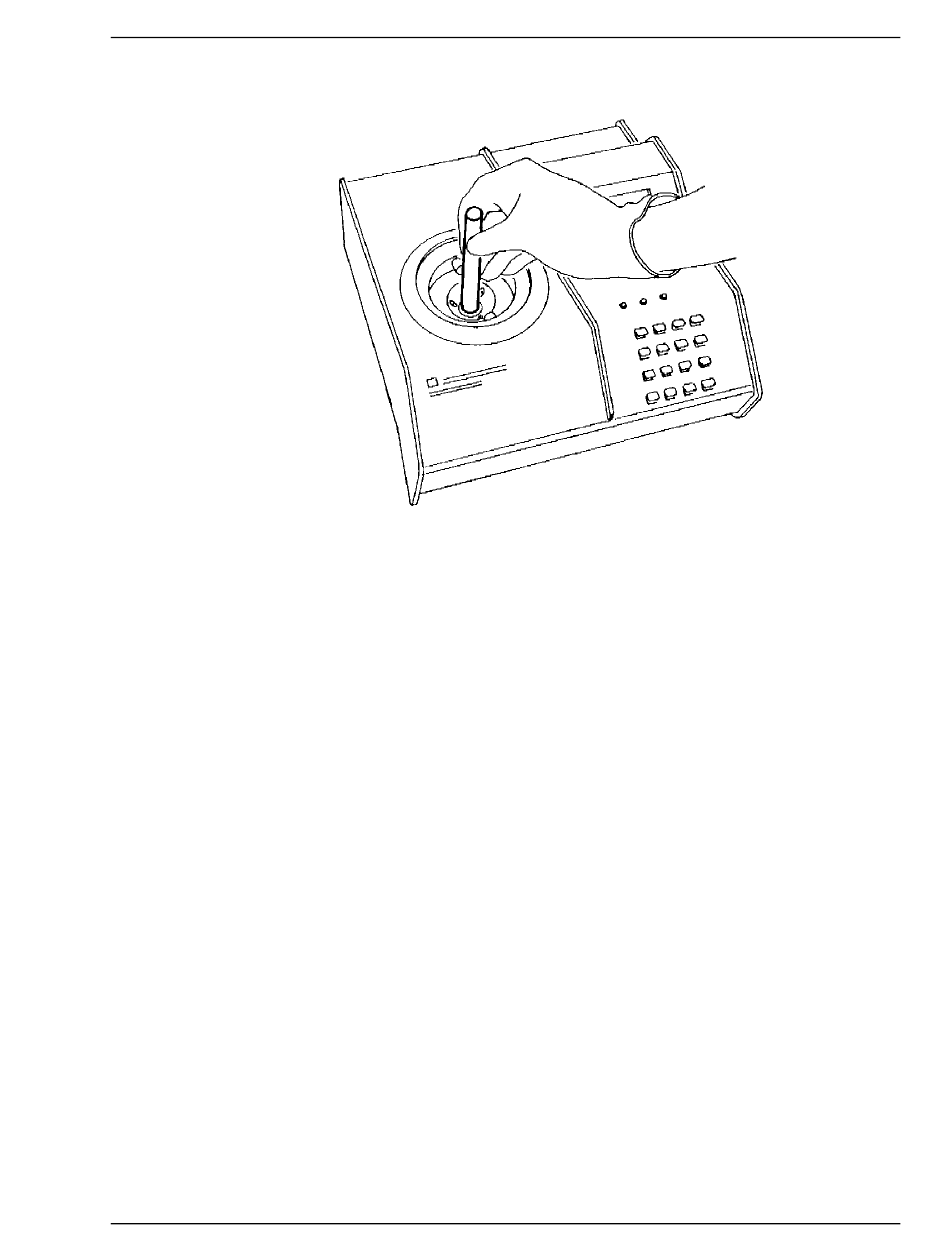

3. Insert the handling tool into the sample cup so that it is gripped by the O-ring.
4. Lift the sample cup out of the insert.
5. Use your fingers to pull the insert from the sample chamber.
6. Replace the sample chamber cap.
June 2013
Appendix J
J-5
