Appendix F

Adding an Analysis Module

Use these instructions when adding an Analysis module to an existing Temperature-controlled
unit.
1. Be sure the controlling unit is turned off.
If you have the Windows version of the AccuPyc, exit the application before turning off
the analyzer.
2. Connect the circulating bath as instructed in the previous section.
3. Attach one end of the module connector cable (provided in the analysis module
accessories kit) to the connector labeled Module Connection on the rear panel of the
single-unit system.
4. Attach the other end of the module connector cable to the lower connector labeled Module
Connector on the rear panel of the analysis module
Be sure to use the lower connector on the analysis module; the upper connector is for
attaching another analysis module.
5. Place the On/Off switch on the rear panel of the analyzer in the On ( | ) position.
6. Calibrate the Analysis module using the Calibration Kit shipped with your system. Refer
to Calibrating the Pycnometer in Chapter 2 for step-by-step instructions.
F-2

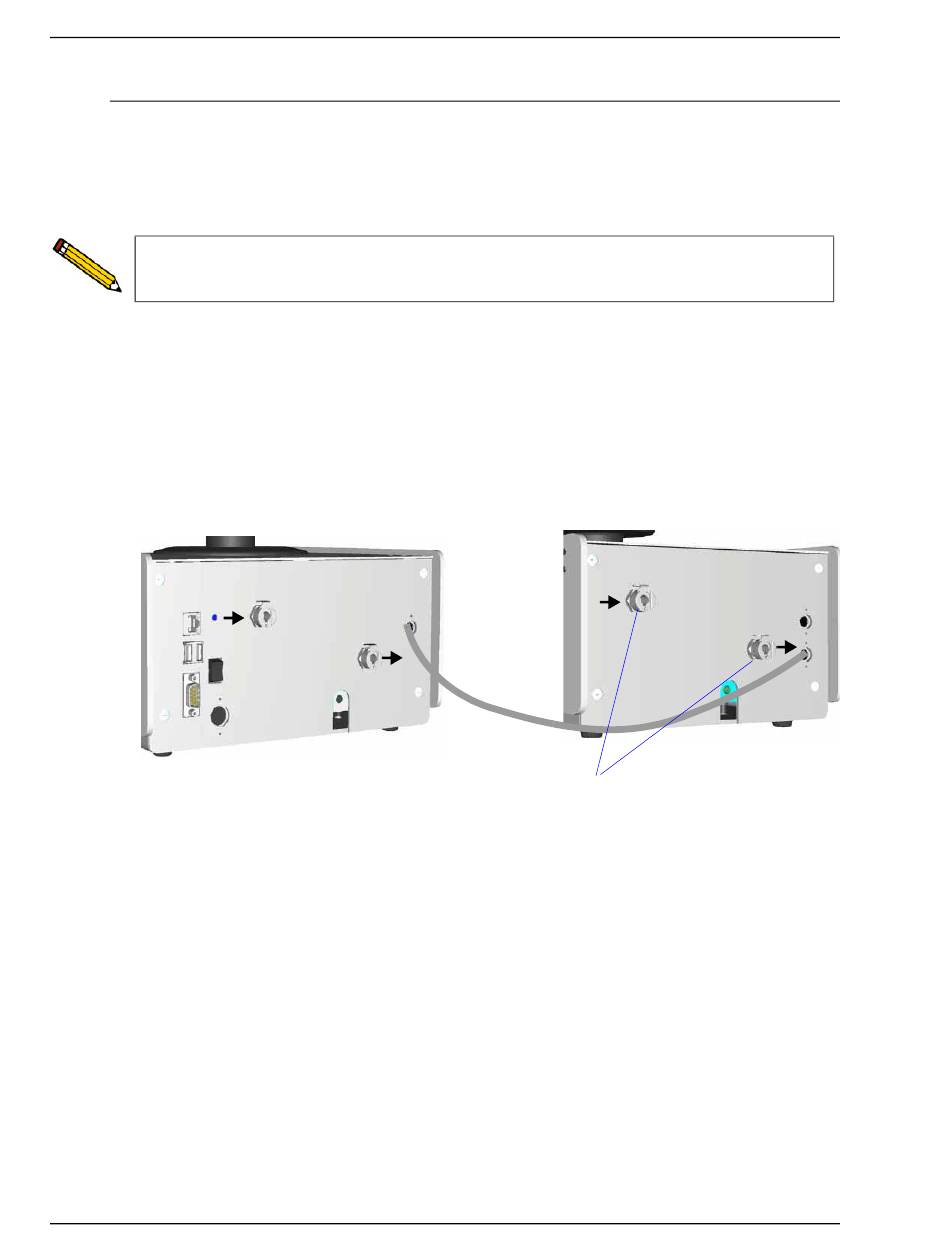

Use these ports to
connect the bath.
