Fuse holder and relay carrier

⇒ "1.1 Removing and installing relay holder and fuse holder be‐
hind dash panel", page 170
⇒ "1.2 Removing and installing relays and fuse holder in the en‐
gine compartment and E-Box (relays and fuse holder in the
engine compartment)", page 171
1.1 Removing and installing relay holder
and fuse holder behind dash panel
Note
You will find the exact assignment of electric cables and the ar‐
rangement of fuses and relays in ⇒ Current flow diagrams, Elec‐
trical fault finding and Fitting locations.
Removing
– Disconnect battery earth strap
⇒ "2.3.1 Disconnecting battery", page 2
Left-hand drive:
– Loosen dash panel so that the bottom part can be tilted to‐
wards you slightly ⇒ Body Work; Rep. gr. 70 .

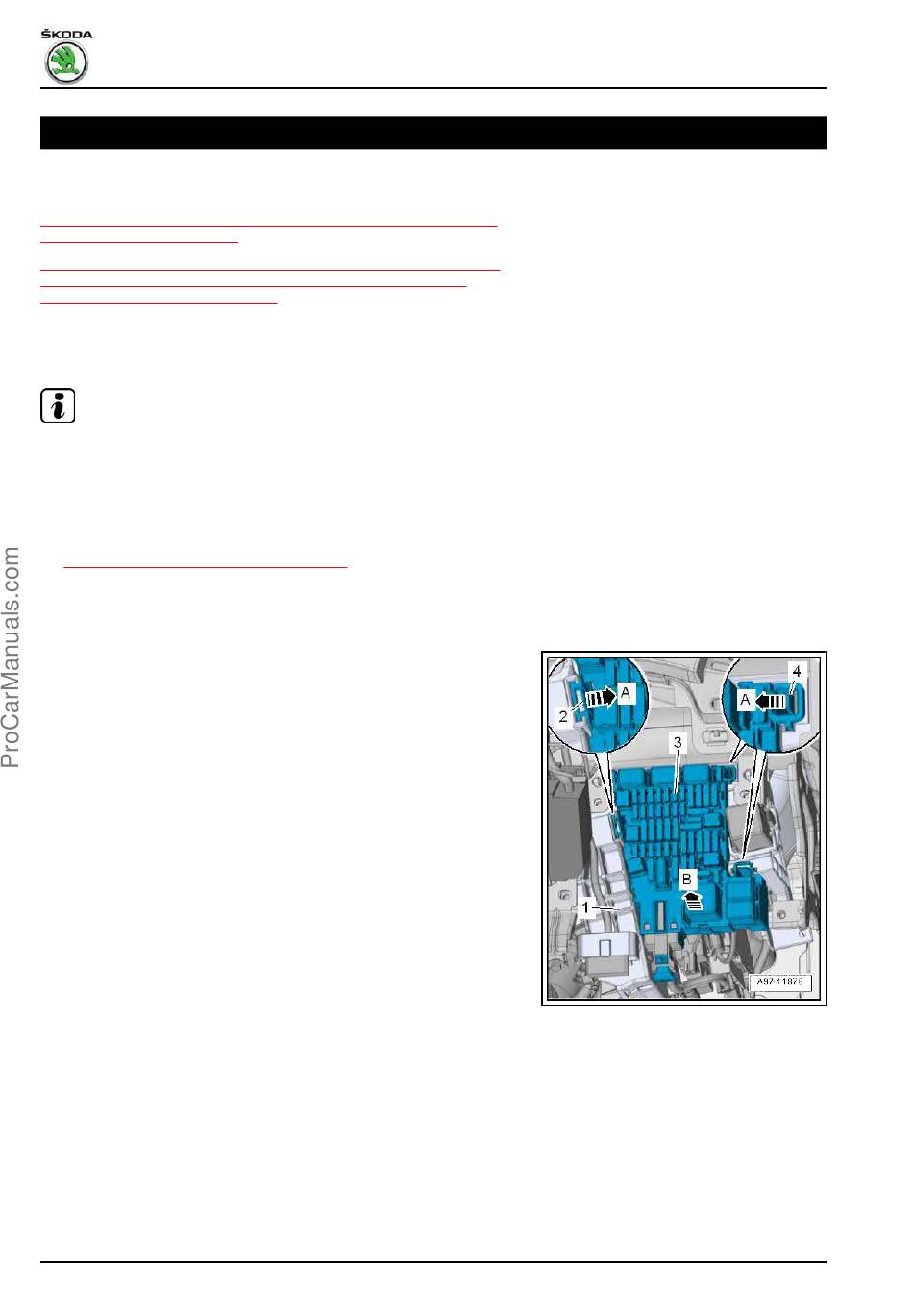

– Unlock catches -2- and -4- -arrows A-.
– Push out fuse holder and relays -3- towards you -arrow B- and
hang them downward.
– Expose electric cables.
