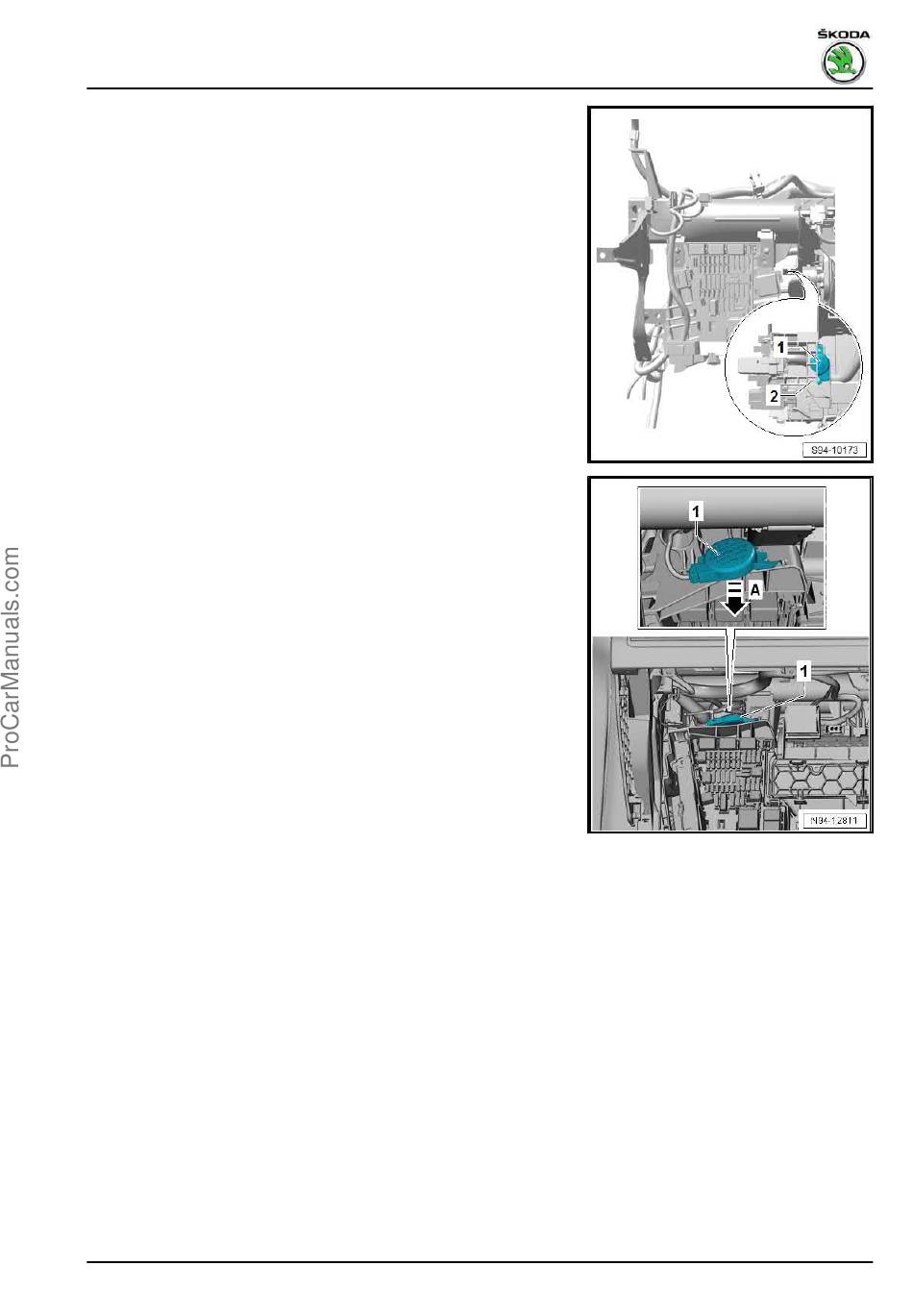

– Use a small screwdriver to push the warning buzzer -1- out of
the support -2-.
– Disconnect plug.
Right-hand drive:
Warning buzzer -1- is located above the fuse holder.
– Remove the glovebox and glovebox frame from the dash pan‐
el on the front passenger side ⇒ Body Work; Rep. gr. 70 .
– Using a small screwdriver, press out the warning buzzer -1-
from the bearing bracket at the fuse holder -arrow A-.
– Disconnect plug.
Install
Installation is carried out in the reverse order.
11.4 Removing and installing the rear parking
aid warning buzzer - H15-
Removing
– Switch off all electrical components and take out the ignition
key.
– Undo the top B pillar trim panels and remove the top C and D
pillar trim panels (Combi) ⇒ Body Work; Rep. gr. 70 .
Octavia III 2013 ➤ , Octavia III 2014 ➤
Electrical system - Edition 12.2014
11. Parking aid and park steering assistant
137
