Summary Of Components - Bi-Xenon Headlights With Led Module - Skoda Octavia III 2013 Workshop Manual

Octavia III 2013 ➤ , Octavia III 2014 ➤
Electrical system - Edition 12.2014
2.3 Summary of components – Bi-xenon headlights with LED module
Note
♦ LED module is defined for side light and daytime running light.
The LED module is integrated into the headlight housing and cannot be changed separately.
♦

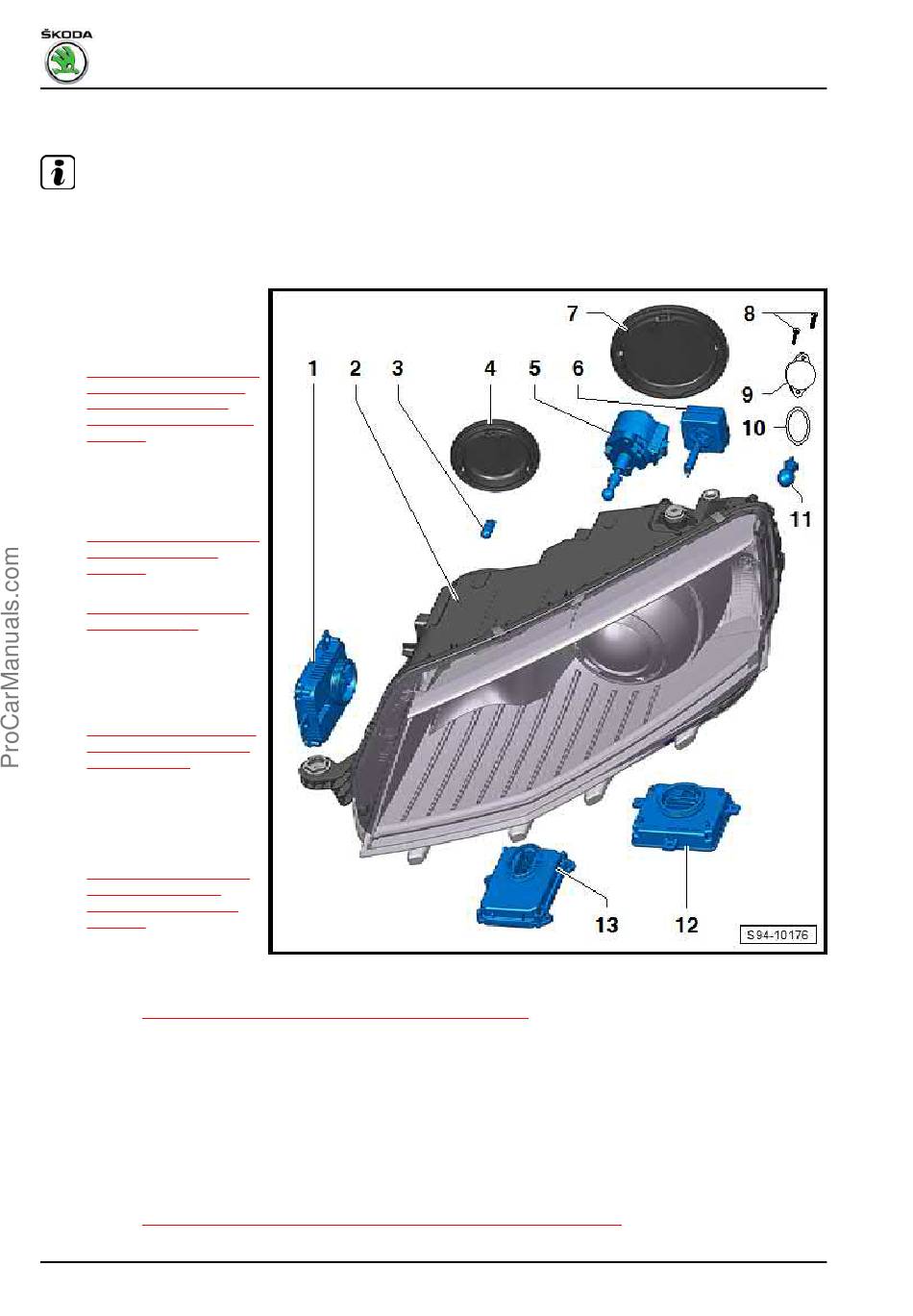

1 - Control unit for gas dis‐
charge lamp - J343- left or -
J344- right
❑ Removing and installing
⇒ "2.9 Removing and in‐
stalling control unit for
gas discharge lamp
J343 left or J344 right",
page 94
2 - Headlight housing
❑ Removing and installing
is the same as for the
halogen headlight
⇒ "1.2 Removing and in‐
stalling headlight",
page 80
❑ adjust
⇒ "1.3 Adjusting head‐
lights", page 80
3 - Light bulb for additional side
light
❑ 12V, 5W (W5W BL)
❑ Renew
⇒ "2.5.1 Replacing light
bulb for additional side
light", page 91 .
4 - Cover
5 - Headlight range control mo‐
tor
❑ Removing and installing
⇒ "2.14 Removing and
installing headlight
range control motor",
page 97
6 - Gas discharge lamp with in‐
tegrated ignition coil
❑ 42V, 35 W (type D3S)
❑ Renew ⇒ "2.5.4 Replacing the gas discharge lamp ", page 93
7 - Cover
8 - Bolts
❑ 1.5 Nm
9 - Lens for signal bulb
10 - O-ring
11 - Light bulb for the turn signal light
❑ PWY24W
❑ Renew ⇒ "1.4.3 Replacing bulb PYW24Y for the turn signal light", page 82
