Octavia III 2013 ➤ , Octavia III 2014 ➤
Electrical system - Edition 12.2014
– Loosen headlining ⇒ Body Work; Rep. gr. 70 and carefully
hang the rear part downward.

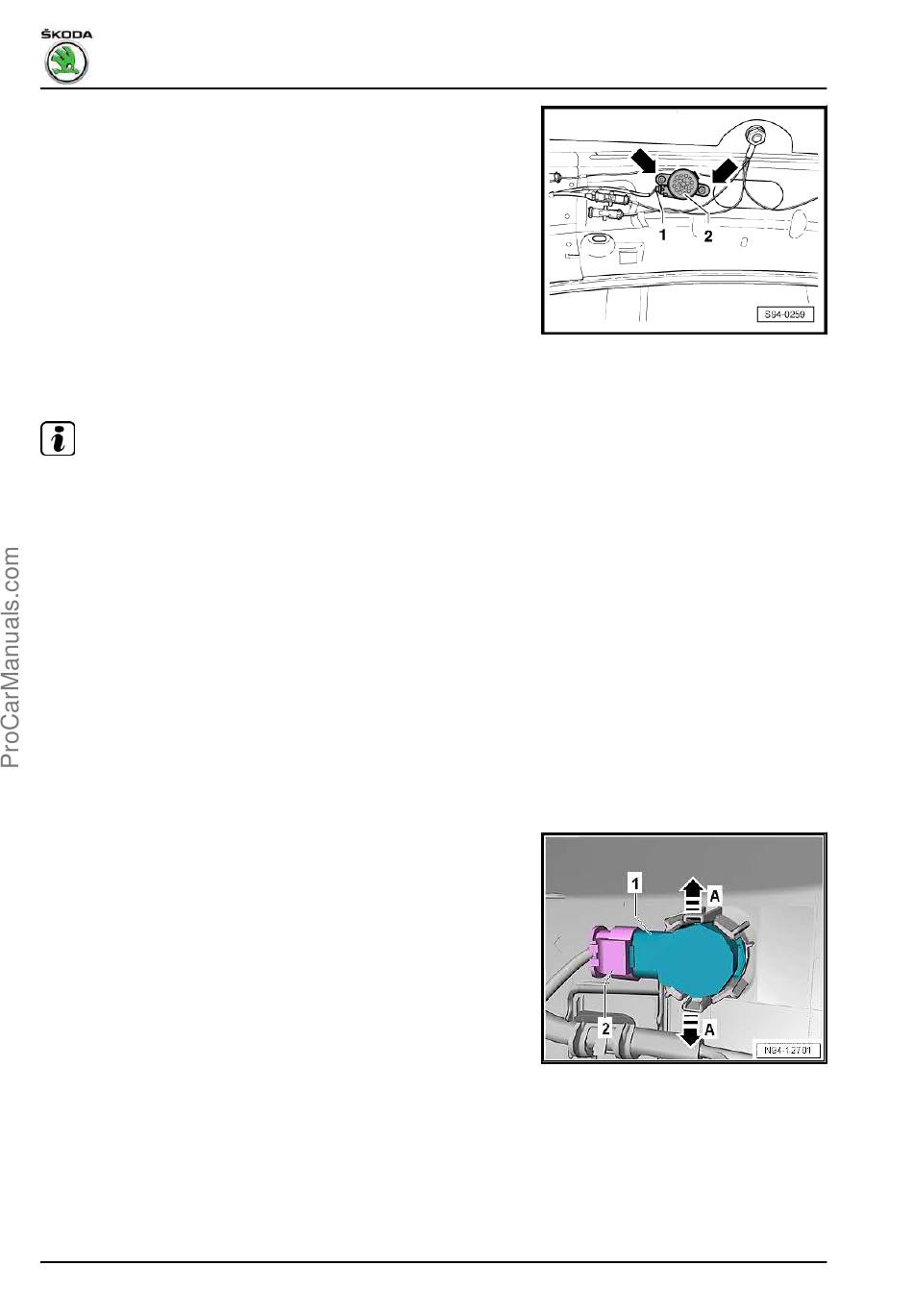

– Loosen and remove expanding rivets -arrows-.
– Disconnect plug -1- and remove warning buzzer -2-.
Installing
Installation is carried out in the reverse sequence.
11.5 Removing and installing parking aid
senders and park steering assistant
Note
Senders fitted in painted areas – the visible area of a new
♦
sender must be painted in the colour of the bumper before
installing.
The parking aid senders must only be painted with a max. 100
♦
µm thick layer of paint. Before painting the sender, the rear
part of the sender (terminal connection) must be affixed.
Only the upper part (visible part) of the sender membrane is
♦
painted.
To make it easier to remove the catches -arrow A- you can use
♦
a larger Seeger pliers with bent jaws.
– Switch off the ignition and all electrical components.
Removing front sender
– Remove parking aid – front bumper sender ⇒ Body Work;
Rep. gr. 63 .
– Remove parking aid – wheelhouse liner front sender ⇒ Body
Work; Rep. gr. 66 .
– Remove the mounting lugs -arrows A-.
– Press out the sender -1- on the outer side of the shock ab‐
sorber inwards.
– Unplug connector -2-.
Remove rear sender
– Loosen sender for parking aid – bumper bottom part and lever
it downwards slightly⇒ Body Work; Rep. gr. 63 .
– Remove Octavia RS parking aid – rear bumper sender ⇒ Body
Work; Rep. gr. 63 .
– Remove parking aid – wheelhouse liner rear sender ⇒ Body
Work; Rep. gr. 66 .
138
Rep. gr.94 - Lights, bulbs, switches - exterior
