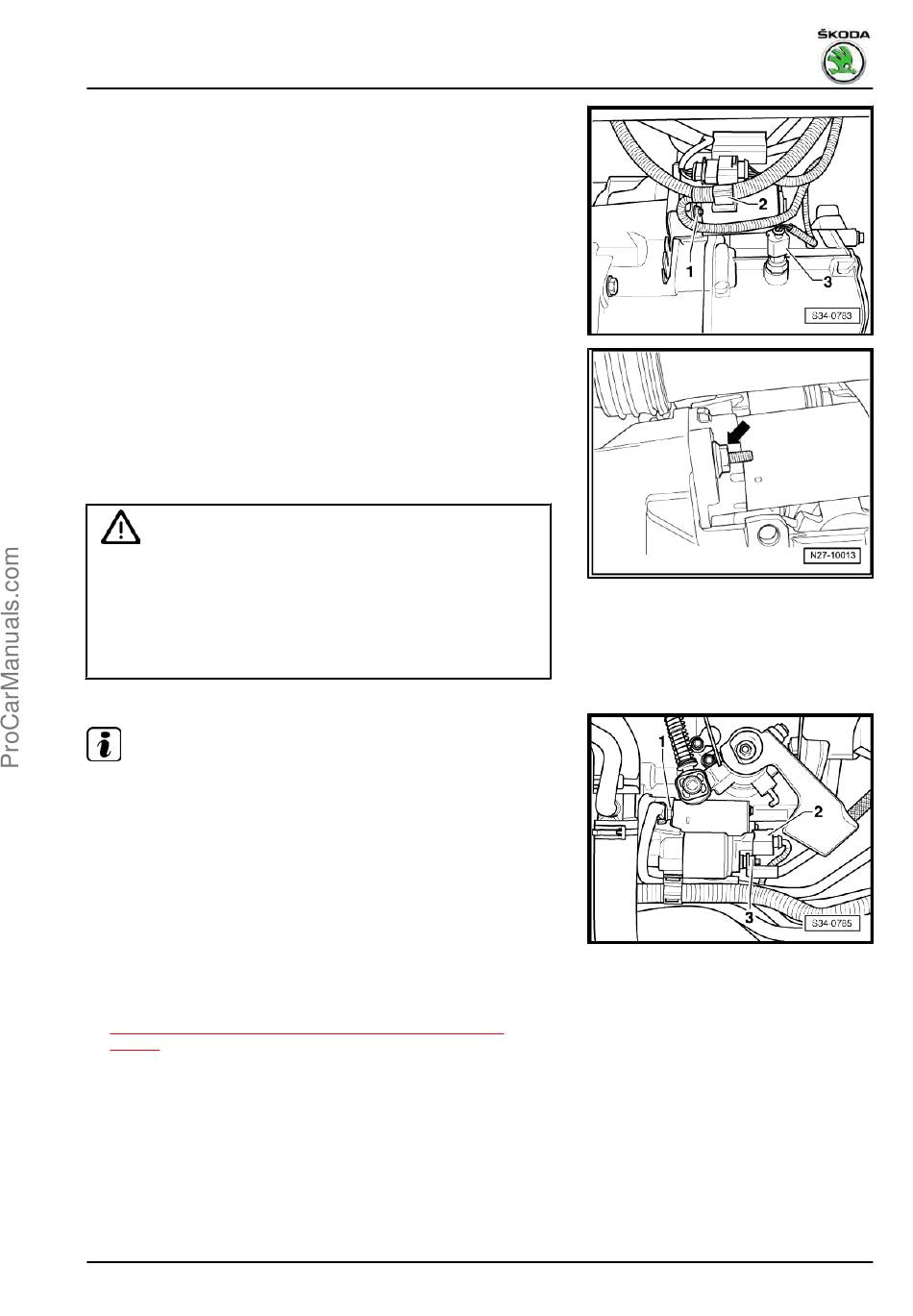

– Unscrew nut -1- (23 Nm) and lay aside line holder -2- together
with line.
All vehicles:
– Screw out bottom fixing screw -arrow- and remove the starter.
M12 – 80 Nm
M10 – 40 Nm
Installing
Installation is carried out in the reverse order. When installing,
observe the following:
Caution
The line to terminal B+ must be laid and attached so that it does
not come into contact with rotating or moving parts of the as‐
sembly (e.g. with the shift mechanism, with rotating parts of the
assembly etc.)!
If the line is laid/attached incorrectly to terminal B+, there is a
risk of damage to the line and of a short circuit or fire.
Note
Use new self-locking nuts -1- and -3- for attaching the earth strap
and the positive cable, see ⇒ Electronic Catalogue of Original
Parts .
Tightening torques for positive cable and earth strap:
Battery earth strap, Pos. -1- 20 Nm
Positive cable, Pos. -3-:
♦ Starter with copper screw 16 Nm
♦ Starter with steel screw 20 Nm
– Pay attention to the work sequence when connecting the bat‐
tery
⇒ "2.3.2 Work sequence when connecting the battery",
page 3 .
Octavia III 2013 ➤ , Octavia III 2014 ➤
Electrical system - Edition 12.2014
9
3. Starter
