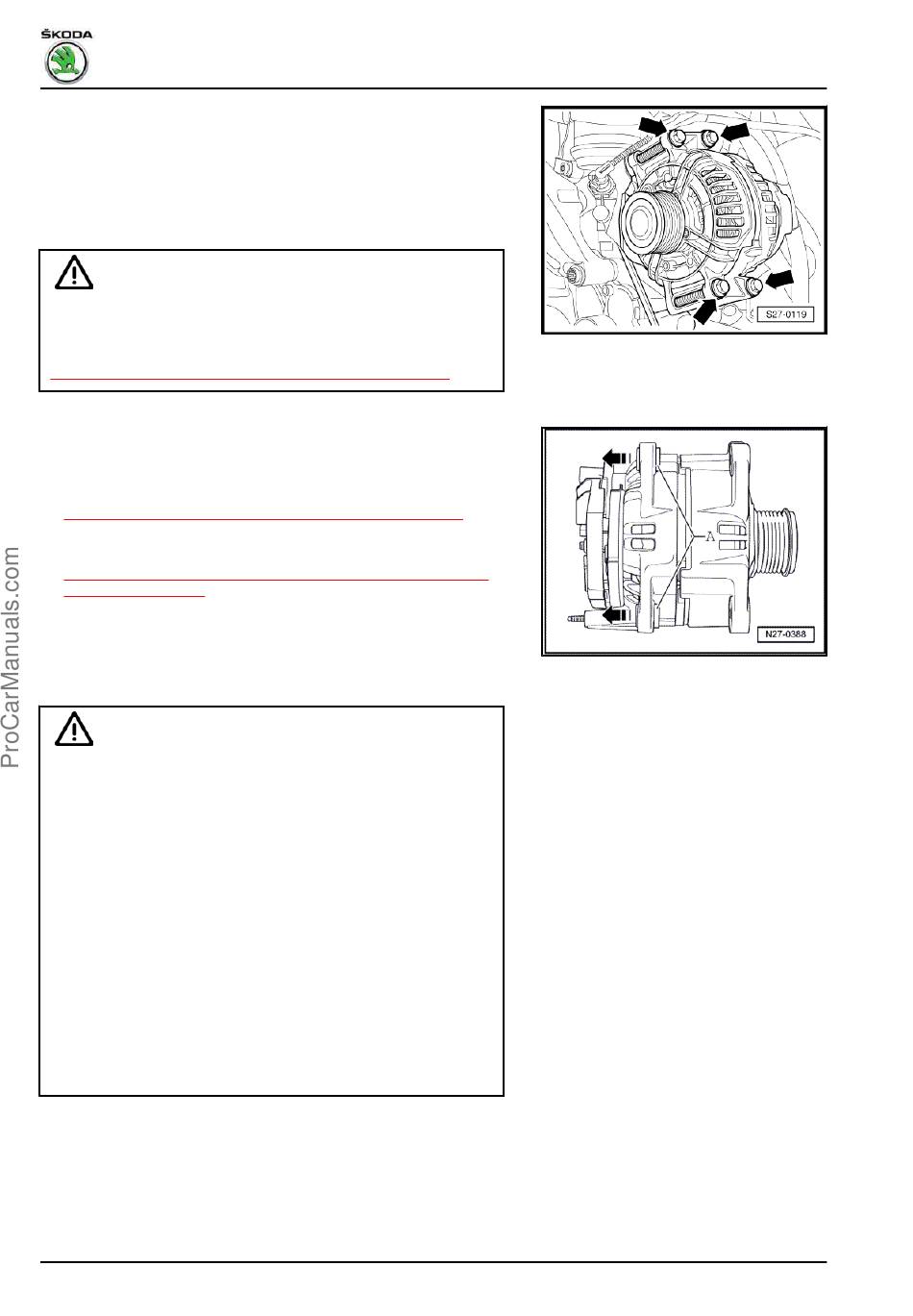

– Vehicles with AC generator secured from the side – screw out
screws -arrows- (23 Nm).
– Remove AC generator downwards.
Installing
Installation is carried out in the reverse order. When installing,
observe the following:
Caution
Follow the mounting sequence for the V-ribbed belt ⇒ Engine;
Rep. gr. 13
Fix the B+ wire
⇒ "4.3 Fixing the B+ wire to the AC generator", page 12
– Vehicles with AC generator secured from the front side – for
easier mounting move the threaded bushes -A- approx. 3 mm
-arrows-.
– Observe the tightening torque for fastening the B+ wire see
⇒ "4.3 Fixing the B+ wire to the AC generator", page 12
– Pay attention to the work sequence when connecting the bat‐
tery
⇒ "2.3 Work sequence when disconnecting and connecting
the battery", page 2 .
– After work has been carried out, always start the engine and
check that the belt is running correctly.
4.3

Fixing the B+ wire to the AC generator

Caution
The screw connection for the B+ cable at the generator is iden‐
tified with B1+!
If the B+ cable is not tightened to the specified tightening tor‐
que, this may result in the following risks:
♦ The battery will not charge fully.
♦ Complete failure of vehicle electronics
♦ Spark formation may cause a fire
♦ Damage resulting from overvoltage on electronic compo‐
nents and control units
The line to terminal B+ must be laid and attached so that it does
not come into contact with rotating or moving parts of the as‐
sembly (e.g. with the shift mechanism, with rotating parts of the
assembly etc.)!
If the line is laid/attached incorrectly to terminal B+, there is a
risk of damage to the line and of a short circuit or fire.
12
Rep. gr.27 - Starter, current supply, CCS
correctly to the AC generator
.
.
