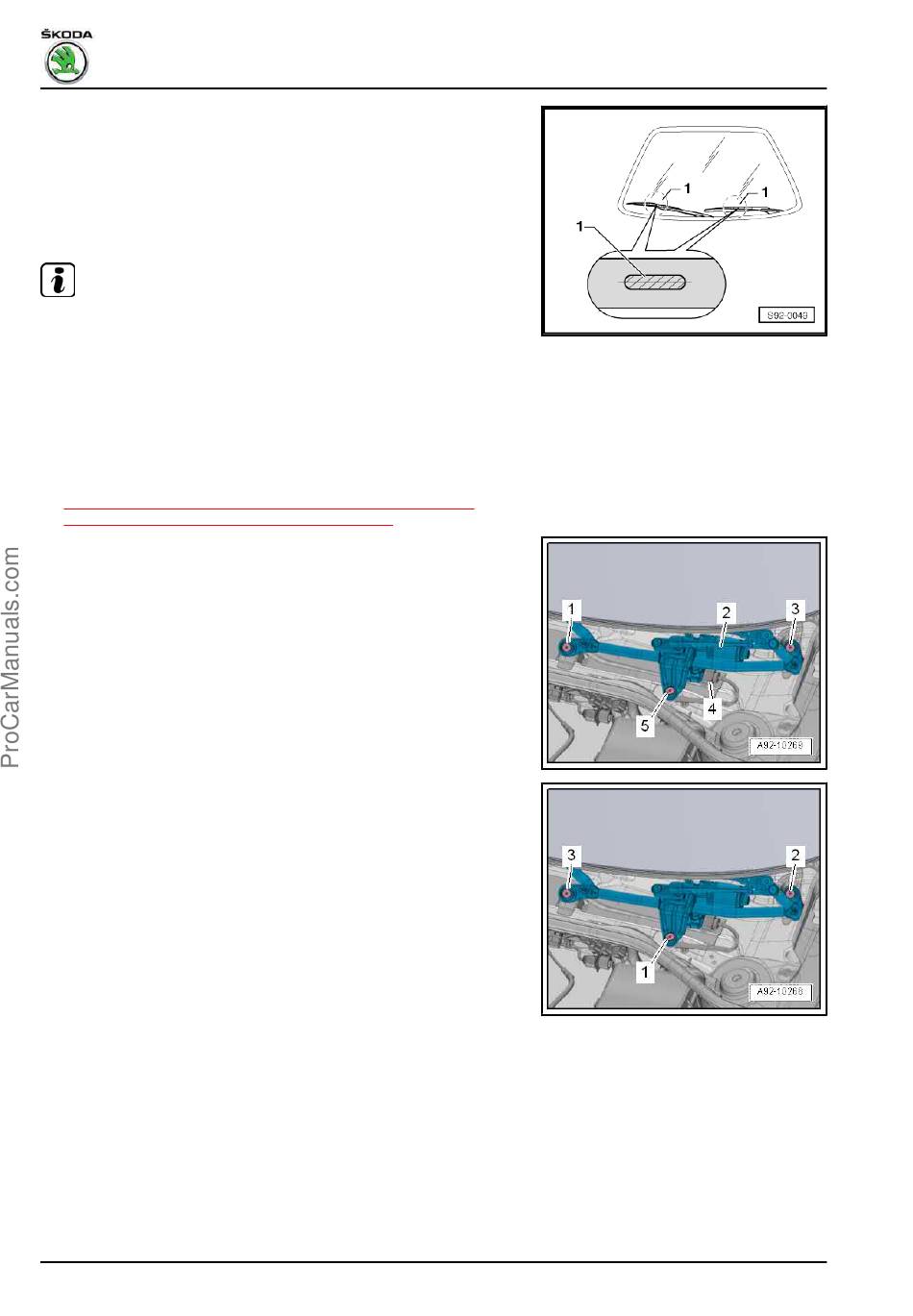

– Insert windscreen wiper arms with wiper blades and align wip‐
er blades to the markings in the windscreen -1-.
– Slightly tighten fixing nuts.
– Operate the flick wipe and check again or correct the setting
of the wiper arms.
– Tighten securing nuts (21 Nm).
Note
The tolerance between wiper blade and marking -1- is ± 2 mm.
3.3 Removing and installing wiper motor
with linkage
Removing
– Switch off the ignition and all electrical components.
– Remove wiper arms with wiper blades
⇒ "3.2 Removing and installing the wiper arms with wiper
blades and setting their final setting", page 68
– Remove the cooling water tank cover ⇒ Body Work; Rep. gr.
66 .
– Unscrew screws -1-, -3- and -5-.
– Insert wiper motor with linkage -2-into the plenum chamber.
– Unplug connector -4-.
Installing
Installation is carried out in the reverse order. When installing,
observe the following:
– First, slightly tighten screws by hand in the -1 -, -2- and -3-
order.
– Then tighten in the same order to 8 Nm.
70
Rep. gr.92 - Windscreen wash/wipe system
.
