Fabia II 2007 ➤ , Fabia II 2009 ➤ , Fabia II 2011 ➤ , Octavia II 2004 ➤ ...
Gearbox 09G - Edition 07.2014

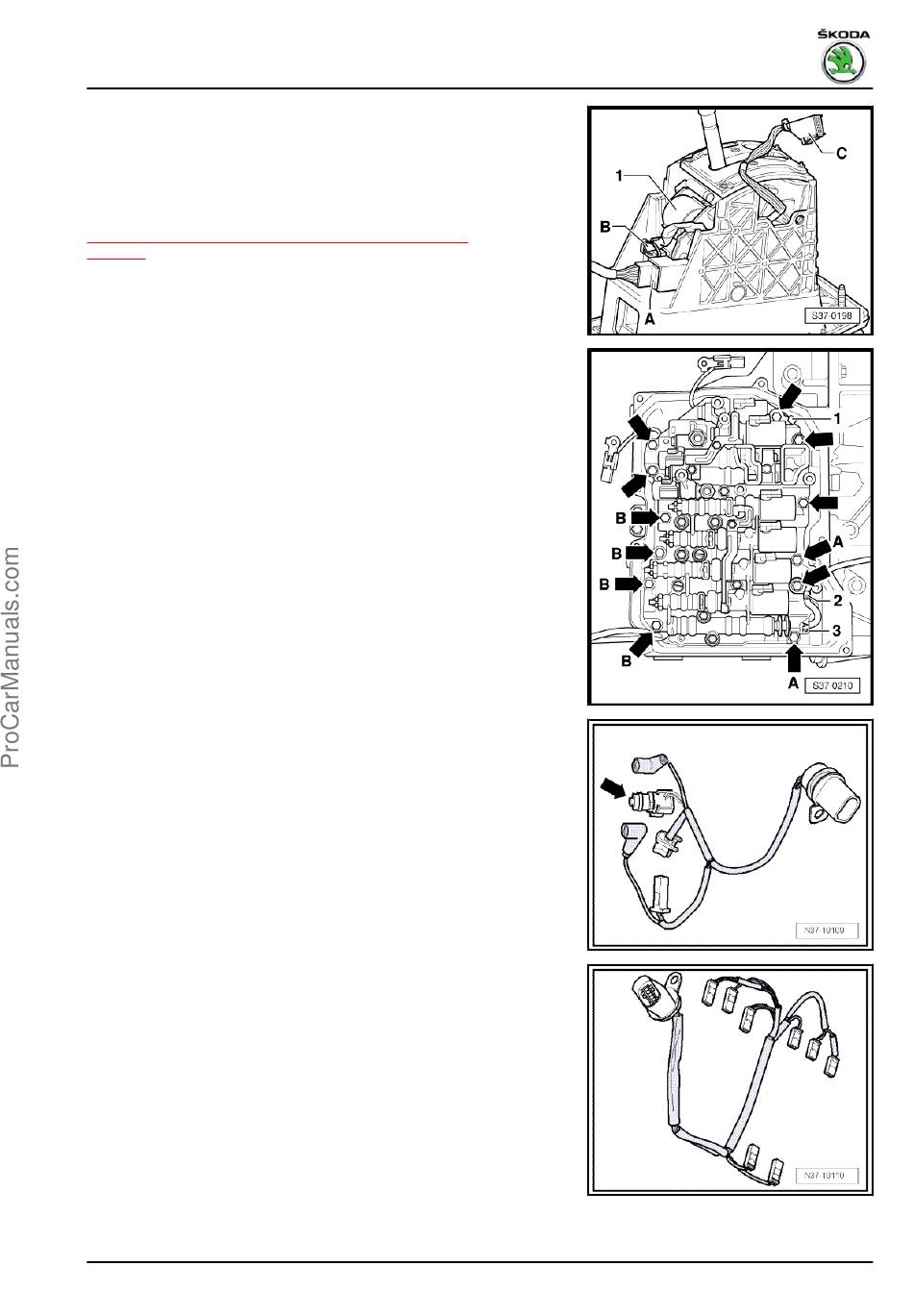

Selector lever lock solenoid - N110-
Fitting location: Selector lever lock solenoid - N110- -1- is in the
gearshift mechanism.
The solenoid is installed firmly in the gearshift mechanism and
cannot be replaced individually. The removal and installation pro‐
cedure is only possible together with the gearshift mechanism
⇒ "2.9 Removing and installing selector mechanism",
page 74 .
Slide valve body
Fitting location: The slide valve body is bolted to the bottom of the
gearbox housing and covered with the gearbox oil pan.
Wiring loom with 8-pin plug and integrated gearbox oil tempera‐
ture sender - G93- -Arrow-
Fitting location: Wiring harness is fixed to the slide valve body.
Wiring loom with 14-pin plug
Fitting location: Wiring harness is fixed to the slide valve body.
23
1. Electric and electronic components, fitting locations of the automatic gearbox
