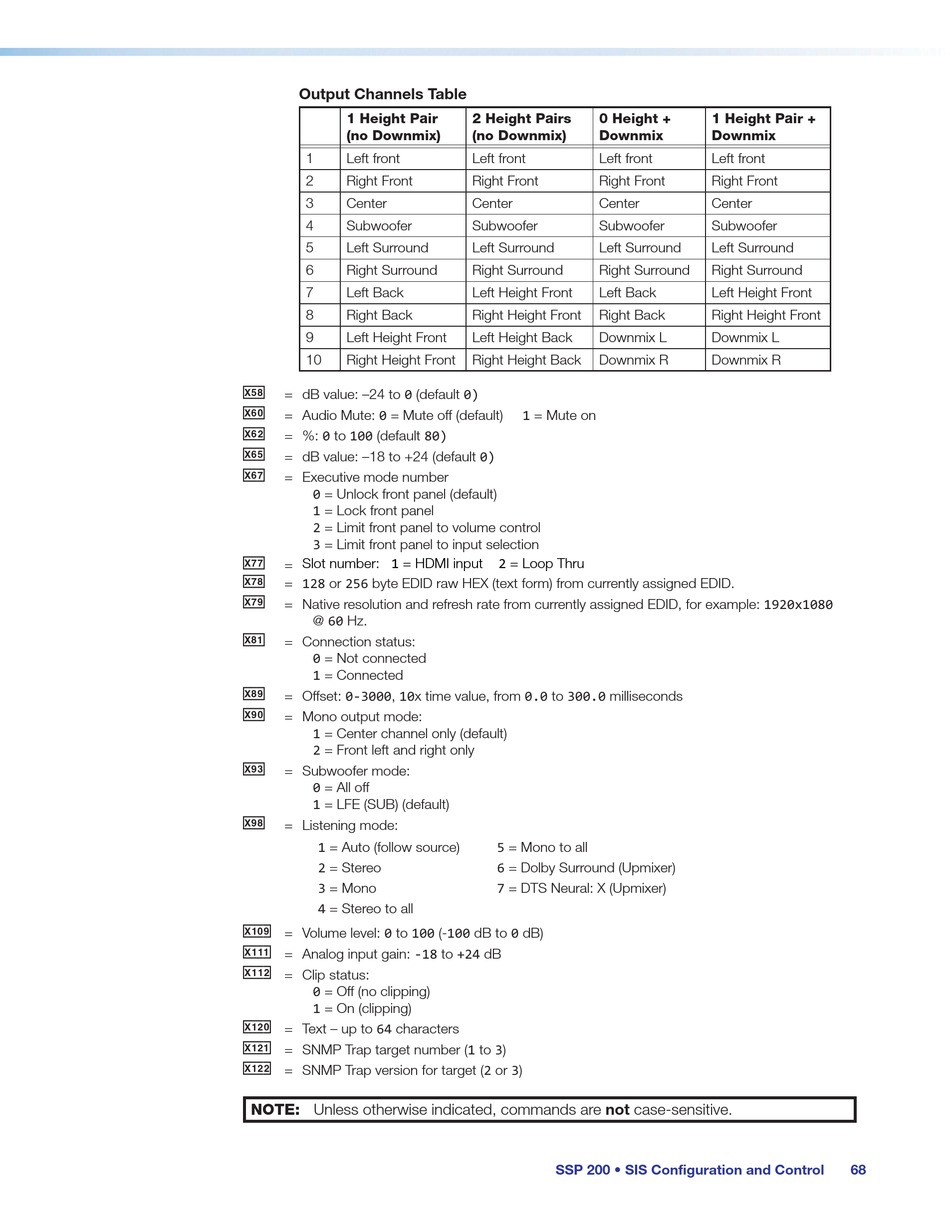

Output Channels Table
1 Height Pair
(no Downmix)
1 Left front
2 Right Front
3 Center
4 Subwoofer
5 Left Surround
6 Right Surround
7 Left Back
8 Right Back
9 Left Height Front
10 Right Height Front
X5*
= dB value: –24 to 0 (default 0)
X6)
= Audio Mute: 0 = Mute off (default)
X6@
= %: 0 to 100 (default 80)
X6%
= dB value: –18 to +24 (default 0)
X6&
= Executive mode number
0 = Unlock front panel (default)
1 = Lock front panel
2 = Limit front panel to volume control
3 = Limit front panel to input selection
X7&
Slot number: 1 = HDMI input
=
X7*
= 128 or 256 byte EDID raw HEX (text form) from currently assigned EDID.
X7(
= Native resolution and refresh rate from currently assigned EDID, for example: 1920x1080
@ 60 Hz.
X8!
= Connection status:
0 = Not connected
1 = Connected
X8(
= Offset: 0-3000, 10x time value, from 0.0 to 300.0 milliseconds
X9)
= Mono output mode:
1 = Center channel only (default)
2 = Front left and right only
X9#
= Subwoofer mode:
0 = All off
1 = LFE (SUB) (default)
X9*
= Listening mode:
1 = Auto (follow source)
2 = Stereo
3 = Mono
4 = Stereo to all
X10(
= Volume level: 0 to 100 (‑100 dB to 0 dB)
X11!
= Analog input gain: -18 to +24 dB
X11@
= Clip status:
0 = Off (no clipping)
1 = On (clipping)
X12)
= Text – up to 64 characters
X12!
= SNMP Trap target number (1 to 3)
X12@
= SNMP Trap version for target (2 or 3)
NOTE: Unless otherwise indicated, commands are not case‑sensitive.
2 Height Pairs 0 Height +
(no Downmix) Downmix
Left front Left front
Right Front Right Front
Center Center
Subwoofer Subwoofer
Left Surround Left Surround
Right Surround Right Surround
Left Height Front Left Back
Right Height Front Right Back
Left Height Back Downmix L
Right Height Back Downmix R
1 = Mute on
2 = Loop Thru
5 = Mono to all
6 = Dolby Surround (Upmixer)
7 = DTS Neural: X (Upmixer)
SSP 200 • SIS Configuration and Control
1 Height Pair +
Downmix
Left front
Right Front
Center
Subwoofer
Left Surround
Right Surround
Left Height Front
Right Height Front
Downmix L
Downmix R
68
