Using PCS Software

Connecting to the SSP 200

1.
2.
3.
4.
5.
Ensure that PCS is installed on the control PC (see
Extron Website on page 29).
Connect the PC to the SSP 200 processor. PCS communicates with the SSP 200 via
the front panel configuration port with a standard USB mini‑B port (see
to the USB Port on page 16), the rear LAN connector, or the rear panel RS‑232
connector.
Open PCS on the PC from the PCS icon loaded on the desktop (optional,
see image on the right) or from the Start menu, click Start > Programs > Extron
Electronics > Extron Product Configuration Software.
The Product Configuration Software opens to the Device Discovery screen (see
figure 25). Devices that are either networked or connected to the PC via USB are listed.

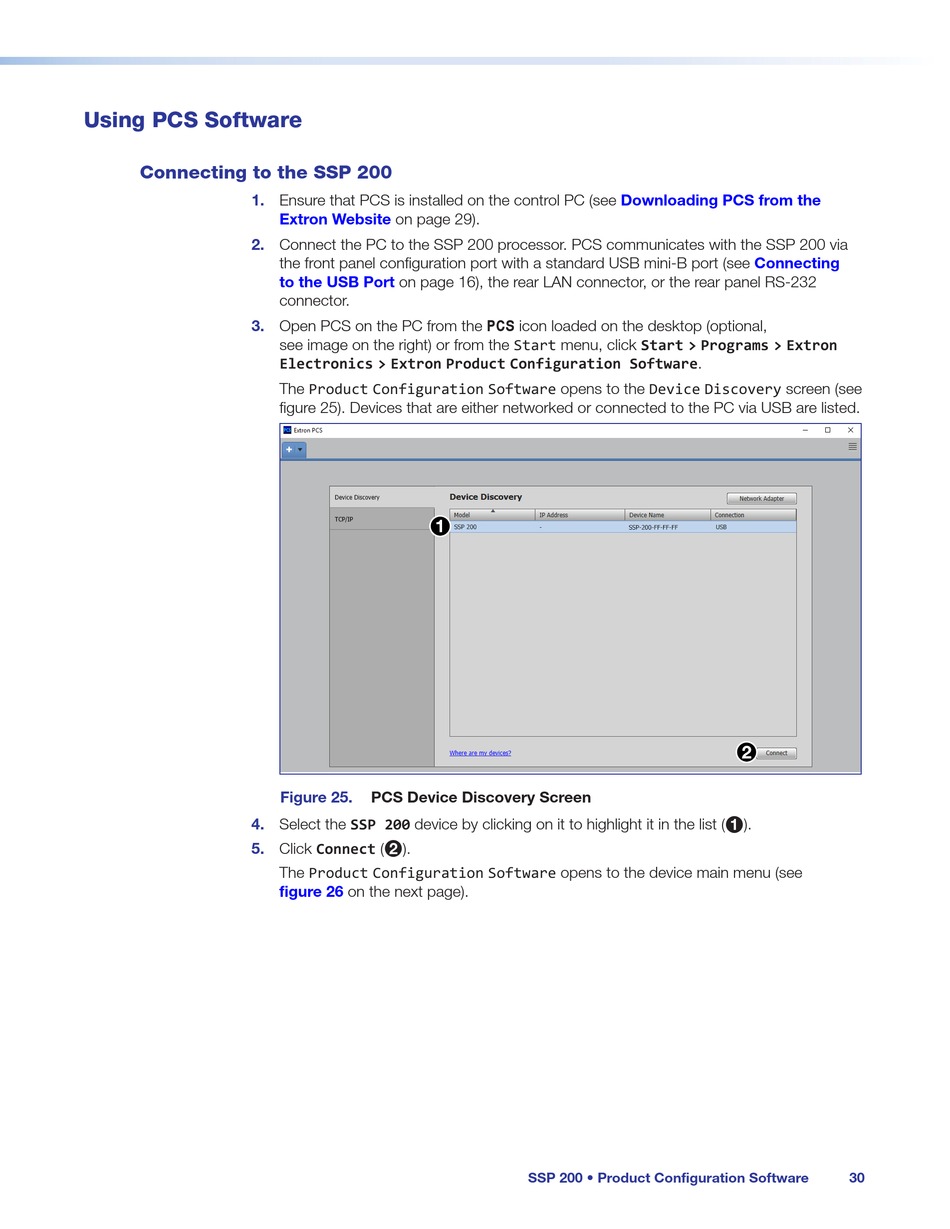

Figure 25. PCS Device Discovery Screen
Select the SSP 200 device by clicking on it to highlight it in the list (
Click Connect ( ).
2
The Product Configuration Software opens to the device main menu (see
figure 26 on the next page).
