Filter Parameters
These four fields (on the right side of the page) control the parameters that can also be
adjusted in the graph.
Filter number — Selects a filter to display on the graph or copy and paste functionality.
Frequency — Adjusts the center frequency of the filter.
Boost/Cut — Adjusts the amount of amplification or attenuation applied to that specific
filter.
Q — Adjusts the bandwidth to where the boost or cut is applied. As the Q value
increases, the bandwidth becomes narrower.
NOTE: When values are altered in the filter parameter fields, the graphic display is
updated to reflect the changes.
Modifying Filter Parameters
The graph in the Filter dialog box displays a graphical representation of the selected and
composite filters.
An orange line indicates the composite curve of all active filters.
A blue line indicates the selected filter.
Inactive filters do not contribute to the orange composite curve. However, when
selected, an inactive filter appears as a dotted line independent of the composite curve.
To modify Frequency
In the Filter dialog box, select the filter to be modified. To do so, either click the filter
1.
number at the left of the Filter menu (figure 42) or click the appropriate Frequency
handle below the graph (figure 43).

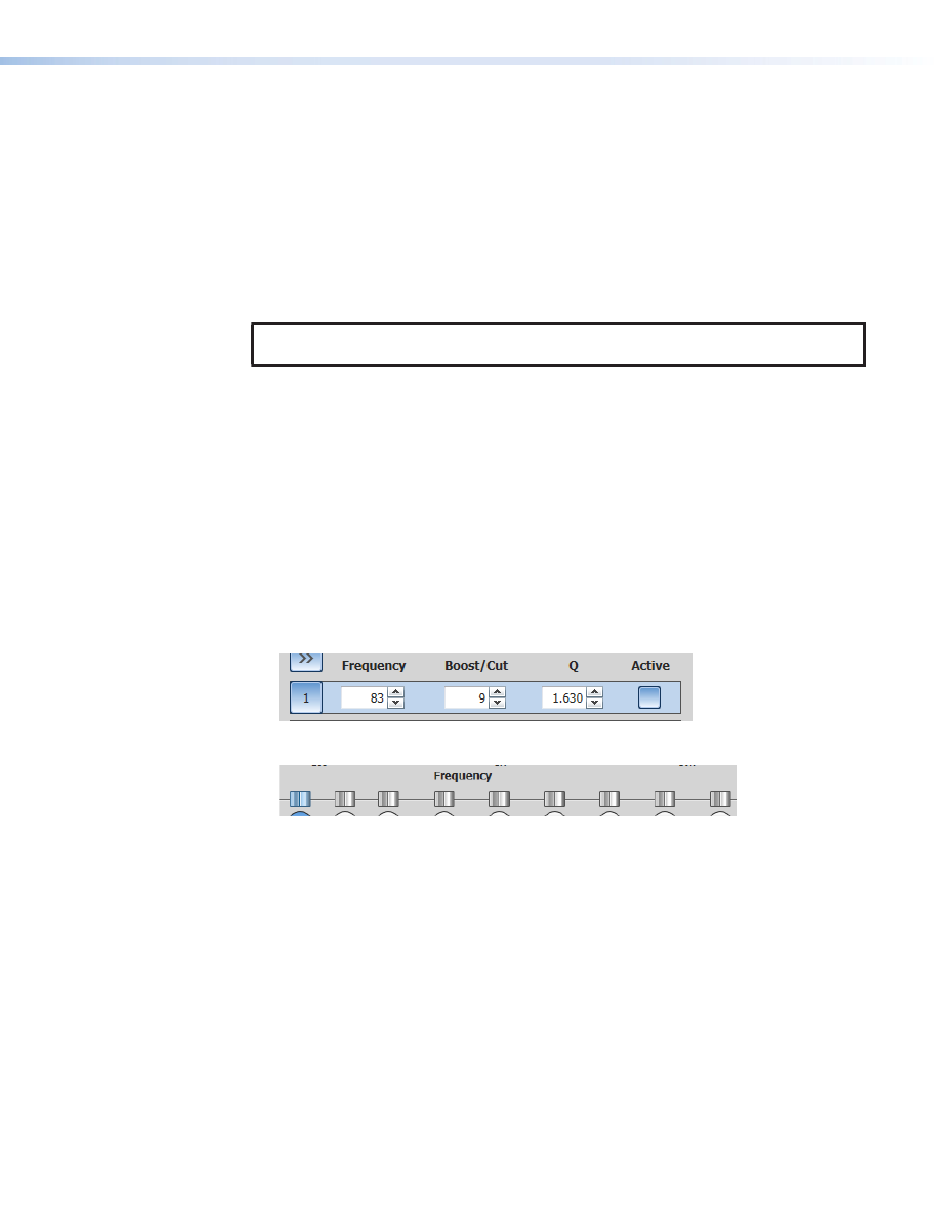

Figure 42.
Filter Menu
Figure 43.
Frequency Handles
2.
Click and drag the Frequency handle left or right to desired position or value.
Alternatively, enter the value in the Frequency field for the selected filter, or click the up
or down arrows next to the field until the desired value is displayed.
To modify Boost/Cut (Parametric):
In the Filter dialog box, select the filter to be modified. To do so, either click the filter
1.
number to the left of Filter menu or click the appropriate Frequency handle below
the graph.
2.
Click and drag the Boost/Cut handle, located at the center frequency in the graph (see
figure 44
on the next page), up or down to the desired position or value. Alternatively,
enter the value in the Boost/Cut field for the selected filter, or click the up or down
arrows next to the field until the desired value is displayed.
SSP 200 • Product Configuration Software
48
