SSP 7.1 Setup Guide

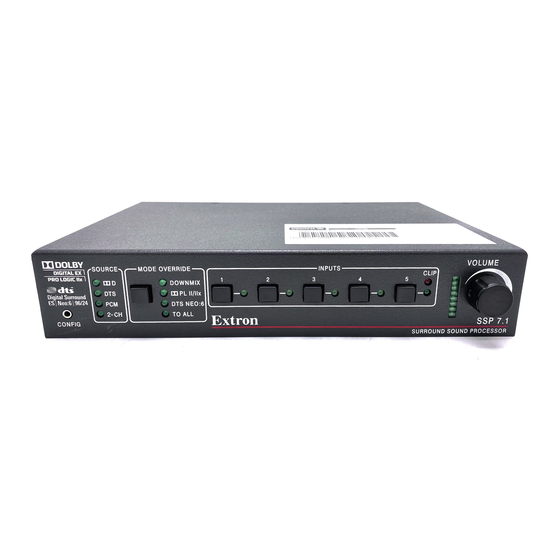

The Extron SSP 7.1 is a 7.1 channel Surround Sound processor
®
with four digital inputs and one analog input. The unit accepts a
range of source formats and uses various listening mode options
for use in 5.1 to 7.1 surround sound system configurations.
The listening mode determines which audio signals will be passed
to the speakers. Each combination of source format and speaker
configuration has a default listening mode. The default listening
mode can be overridden by the front panel controls and the SSP 7.1
Windows Control Program (WCP) to select a mode that matches
®
the requirements of the room and the listener's personal preferences.
This guide provides basic instructions for an experienced installer to install and perform the initial configuration
on the SSP 7.1. For further details, see the SSP 7.1 User's Manual on the Extron Web site (www.extron.com).

SSP 7.1 Installation

Use the four rubber feet provided with the SSP 7.1, and place the unit on any convenient flat surface. The SSP 7.1
can also be mounted in a rack, with the optional rack-mounting kit (RSU 126: Part # 60-190-10), or under furniture,
with the optional under-furniture mounting kit (MBU 125: Part # 70-077-01). For complete instructions on
mounting the unit, consult the SSP 7.1 User's Manual, which is available on the Extron Web site (www.extron.com).

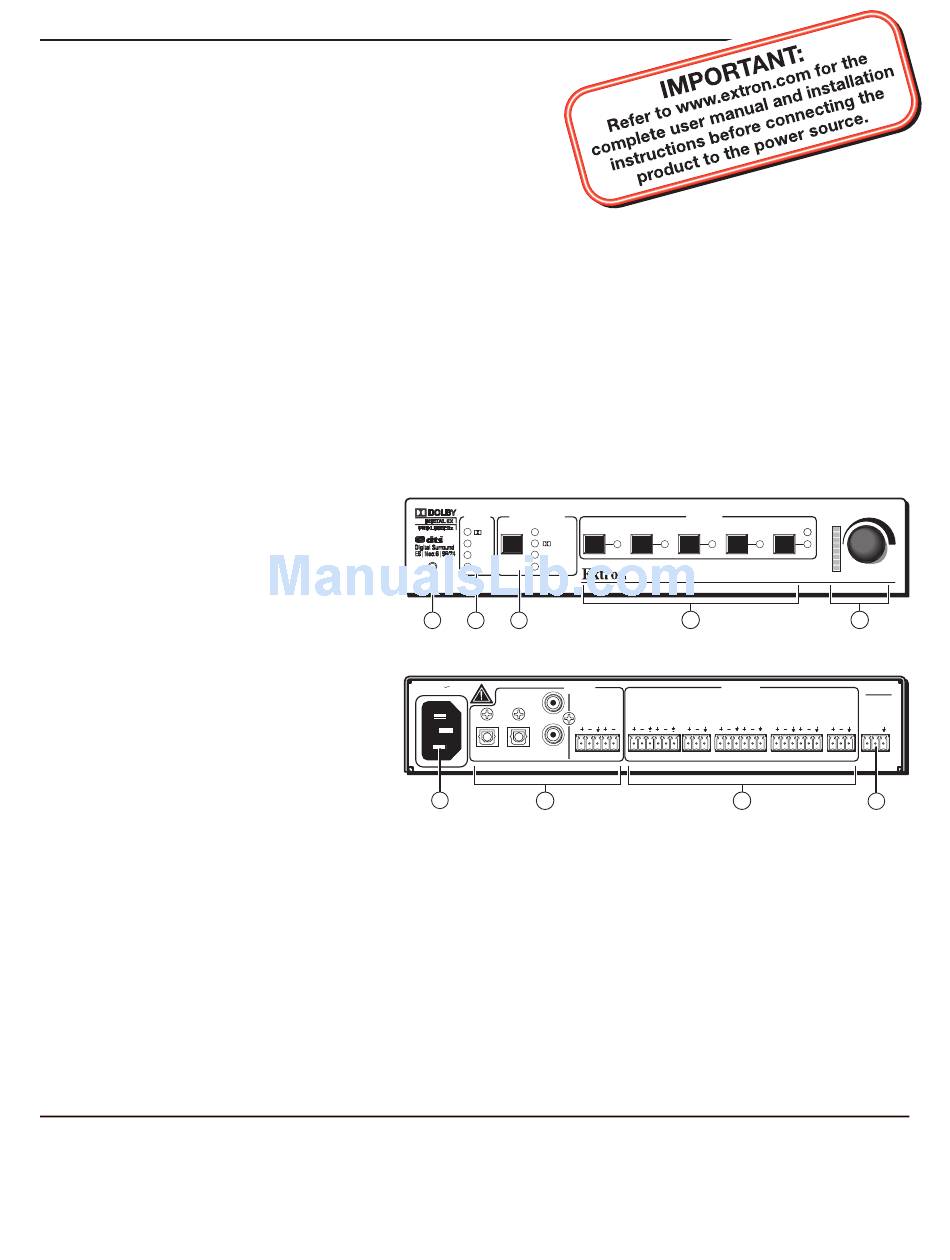

SSP 7.1 Front and Rear Panel Features

a
Config Port
b
Input Source Format Indicator
c
Mode Override Selector
d
Input Selections
e
Volume Adjust Knob and LED Bar /Analog
Input Gain Level Control and LED Bar
f
AC Power Input
g
Audio Inputs
h
Audio Outputs
i
RS-232 Port
SSP 7.1 Cable Connectons
1. The SSP 7.1 uses an IEC power cable to connect to a 100 - 240 VAC, 50/60 Hz, power source.
2. The SSP 7.1 accepts four digital inputs and one analog input:
• Inputs 1 and 2 accept digital signals through S/PDIF optical cables.
• Inputs 3 and 4 accept digital signals through S/PDIF coaxial cables.
• Input 5 accepts a balanced or unbalanced, stereo or mono analog input through a 5-pin captive screw
connector.
3. The SSP 7.1 outputs are balanced/unbalanced, line level, analog signals that feed into multi-channel
amplifiers for configurations up to 7.1 surround sound. See the wiring card (included) to ensure correct
connections to the SSP 7.1.
4. Connect the front panel Config port or rear panel RS-232 port to a PC that has the SSP 7.1 WCP installed (see
SSP 7.1 Windows Control Program Installation, on the next page).
1
Manufactured under license from Dolby Laboratories. Dolby, Pro Logic, and the double-D symbol are
trademarks of Dolby Laboratories.
2
Manufactured under license under U.S. Patent #'s 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,226,616; 6,487,535;
7,003,467 & other U.S. and worldwide patents issued & pending. DTS, DTS Digital Surround, ES, and Neo:6 are
registered trademarks and the DTS logos, Symbol and DTS 96/24 are trademarks of DTS, Inc. © 1996-2007 DTS,
Inc. All Rights Reserved.
SOURCE MODE OVERRIDE
1
D DOWNMIX
DTS PL II/IIx
PCM DTS NEO:6
2-CH TO ALL
CONFIG
1 2 3
100-240V .5A INPUTS
50-60Hz
DIGITAL
ANALOG
3
5
L
4
1 2
6
7
INPUTS
2 3 4 5
SURROUND SOUND PROCESSOR
4
OUTPUTS
FRONT CENTER SIDE
R L R L R L
8
VOLUME
CLIP
SSP 7.1
5
SSP 7.1
SUB
BACK WOOFER RS-232
R
Tx Rx
9
68-1339-50
Rev. A
05 09
