Click Assign. The EDID is assigned to the input and is displayed in the INPUTS panel
4.
Alternately, click Assign to All on the INPUTS panel if you would like to assign the
same EDID to all inputs.
EDID can also be assigned by dragging and dropping the desired EDID directly onto the
INPUTS panel.

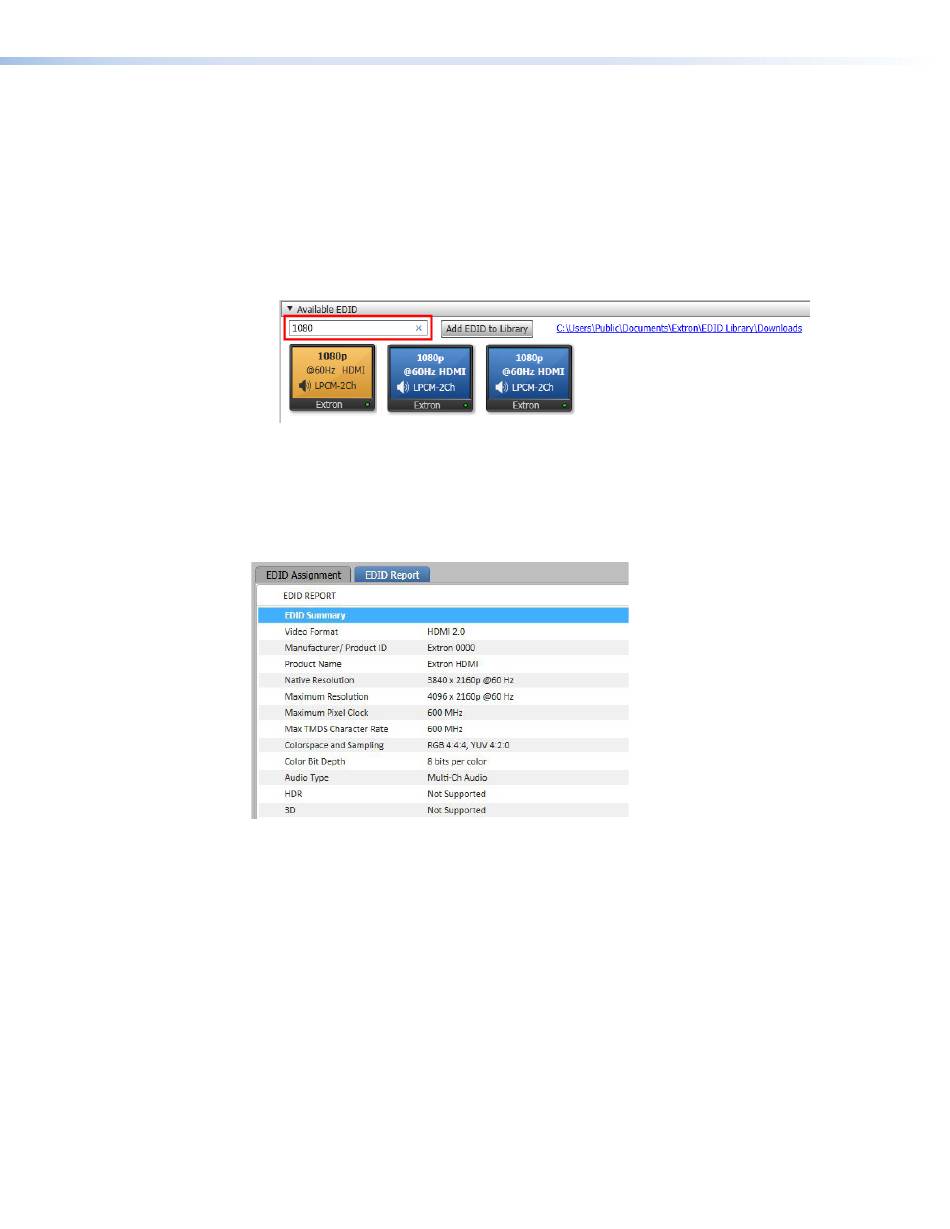

Searching for EDID by Name
1.
On the EDID Minder screen, navigate to the search box located at the top of the
Available EDID panel (highlighted in red box).
2.
Start typing the name of the desired EDID. Only EDID that contain the entered text are
left in the Available EDID panel.
EDID Report
Click the EDID Report tab to view the translated data contained within the selected EDID
file (see figure 36).
Figure 36.
EDID Report Tab
SSP 200 • Product Configuration Software
40
